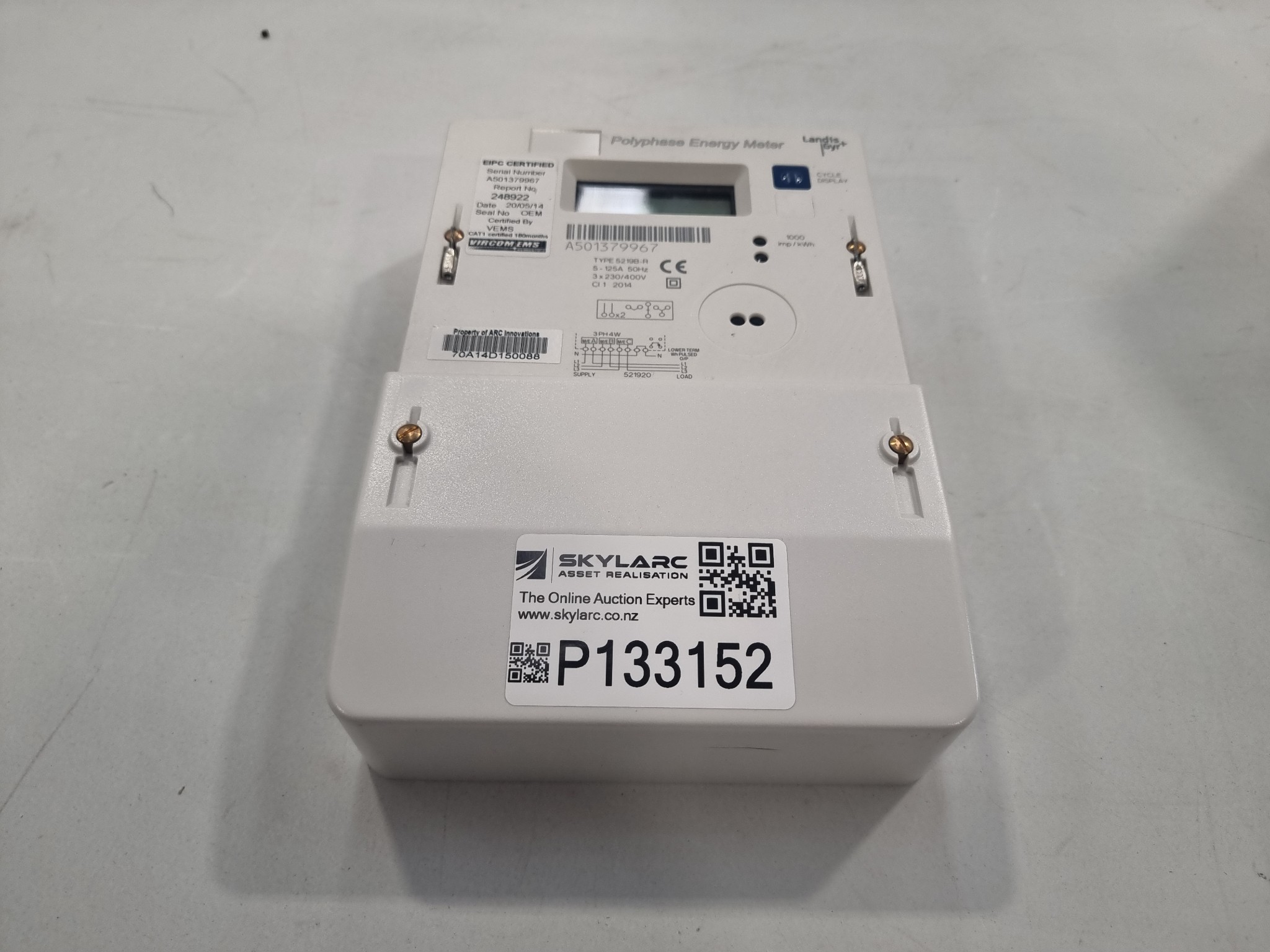

Landis+Gyr 3 Phase 5219B-R Polyphase Energy Meter.
The Landis & Gyr 5219 is a Three phase, Direct connected, 20-100A kWh meter with both active (class 1.0) and Reactive energy (KVArh) (class 2.0) management features.
5219B's are OFGEM approved for billing, housed in a compact casing and includes an optical port for data acquisition and programming (E230 replacement model is MID approved).
OFGEM Approved.
System Voltage 230/400V.
Import & Export readings.
Three Phase Networks.
Direct connected 100A.
Pulsed output.
Voltage Burden <2W <10VA.
Current Burden <0.5VA @ Imax <1VA.
Frequency 50Hz +/-5%.
Note this unit has not been tested.
Dimensions
Length: 250mm Width: 180mm Height: 60mm
