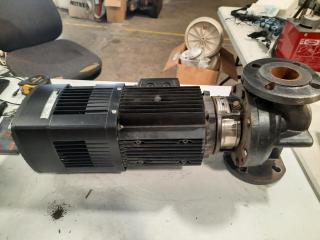

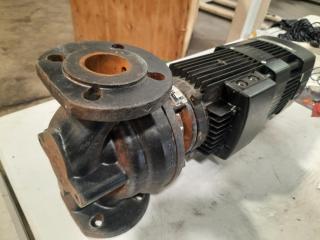

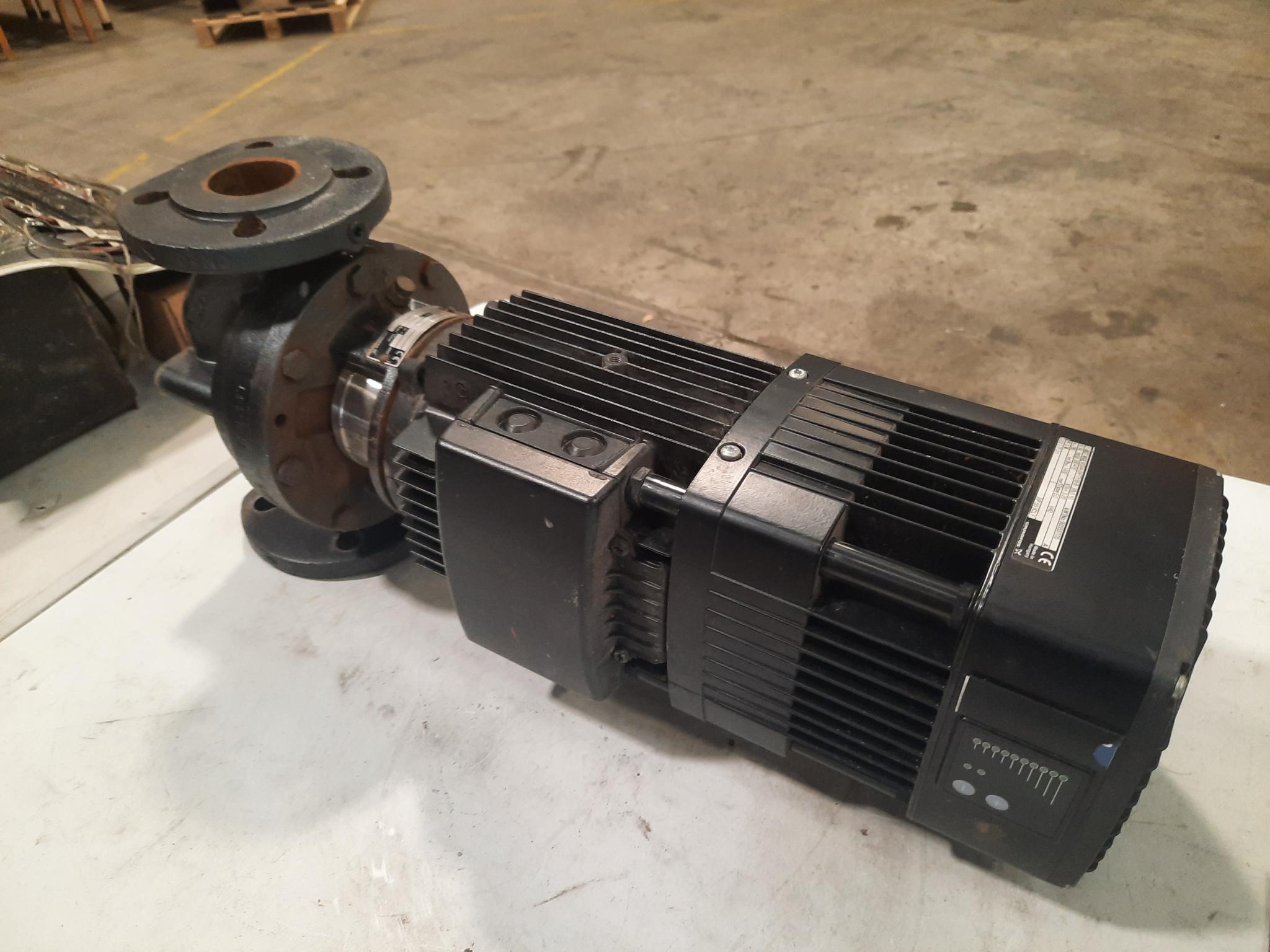

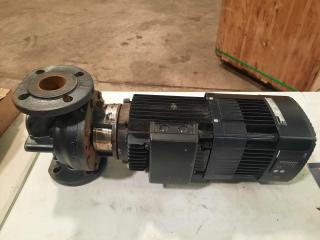

Groundfos 3 Phase Motor and Pump.
Motor: Groundfos MGE 90SA Motor.
Range of ambient temperature: -30 .. 40 °C.
Flange size for motor: SP.FM.
Shaft diameter: 24 mm.
Length of shaft end: 50 mm.
Model: B.
Cooling: IC0141.
Motor type: 90SA.
Rated power - P2: 1.1 kW.
Mains frequency: 50 / 60 Hz.
Rated voltage: 3 x 380-415 V.
Moment of inertia: 0.0029 kg m².
Number of poles: 4.
Pump: Groundfos TPE 50-120/2 A-F-A-BUBE Pump.
Pump speed: 2890 rpm
Rated flow: 21.1 m³/h
Rated head: 6.7 m
Maximum head: 120 dm
Code for shaft seal: BUBE
Range of ambient temperature -30 .. 40 °C
Maximum operating pressure 10 bar
Type of connection DIN
Size of connection DN 50
Pressure rating for connection PN 6 / PN 10
Pumped liquid Water
Liquid temperature range 0 .. 140 °C
Dimensions
Length: 680mm Width: 240mm Height: 280mm
