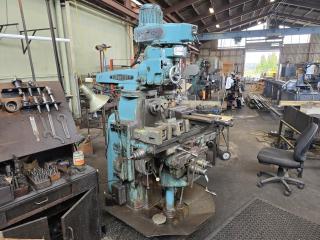

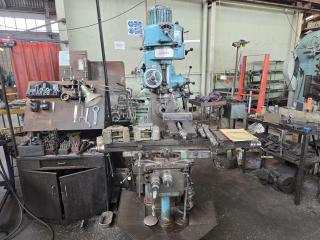

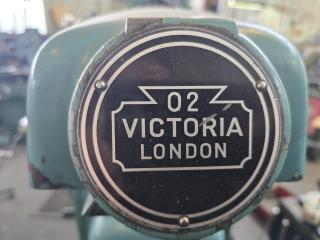

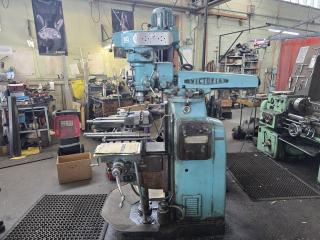

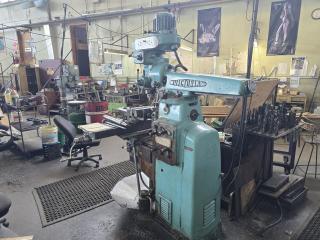

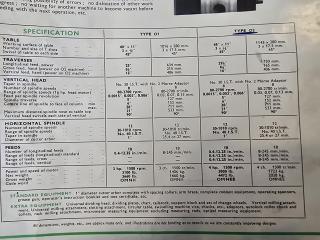

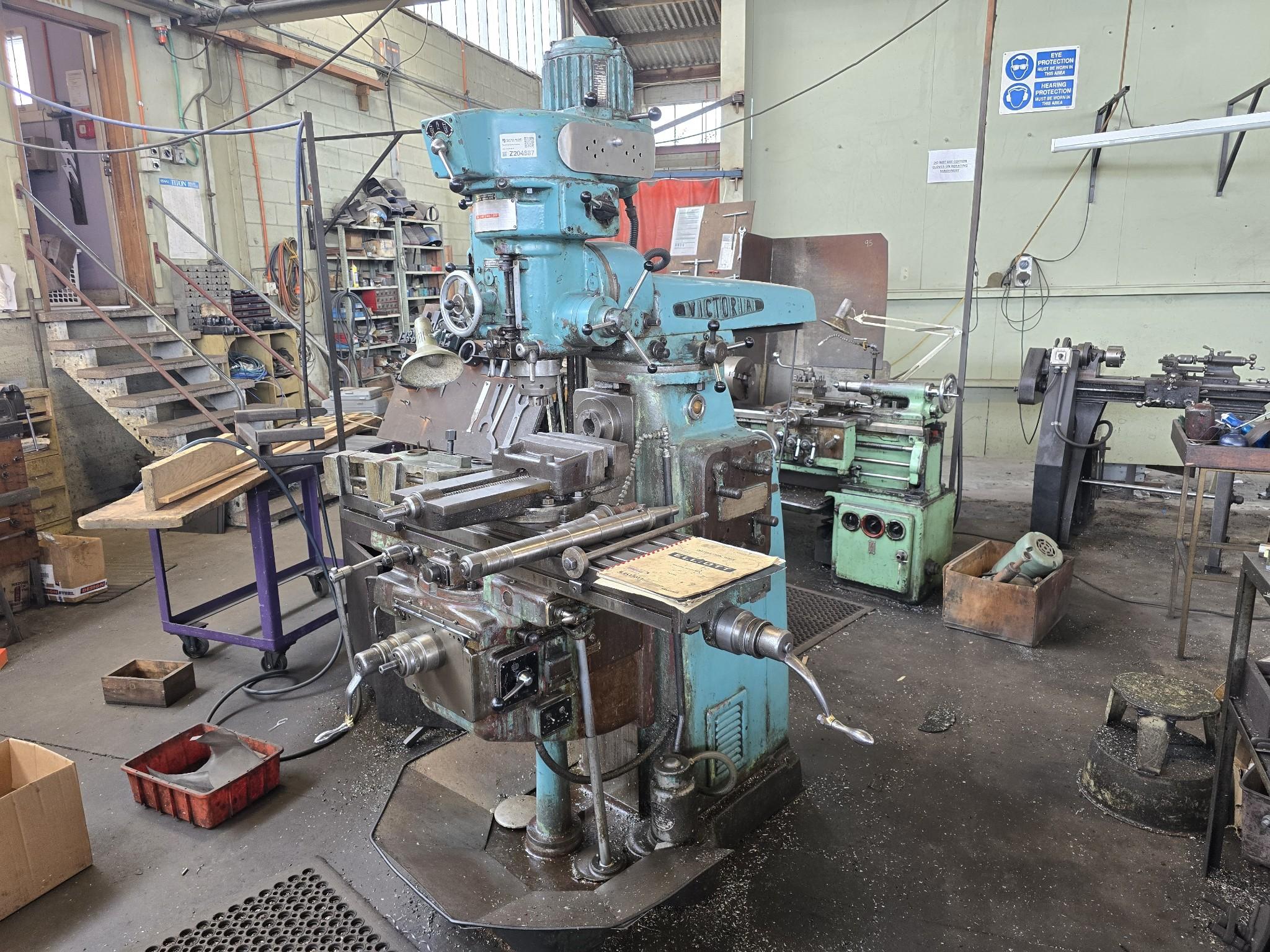

Model: Elliot Victoria Type O2

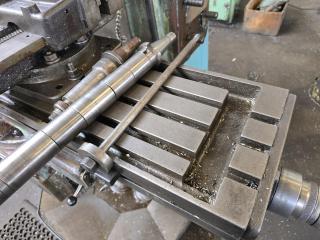

Table dimensions: 1143mm x 280mm
Number and size of T slots: 3 x 17.5mm
Vertical head spindle: No. 30 I.S.T.

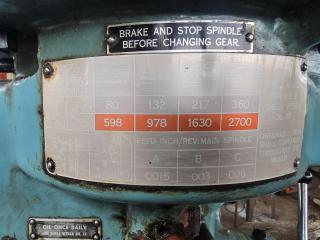

Spindle speed range: 80-2700 rpm
Feed per spindle revolution: 0.0015", 0.003", 0.006", 5", 6", 78"
Spindle traverse: 127mm
Centre line of nose to face of column minimum: 152mm maximum: 711mm
Spindle nose to table top: 533mm
Vertical head swivel each side: 90 degrees
Horizontal speeds: 12 speeds ranging 30-1010 rpm
Horizontal spindle taper: No. 40 I.S.T.
Diameter of cutter arbor: 1 inch

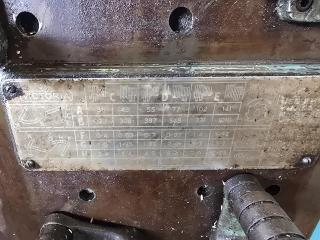

Number of longitudinal feeds: 18
Range of longitudinal feeds: 0.4-12.25 inches per minute
Vertical feed range: 8-245mm per minute
4hp motor
Motor speed: 1500 rpm

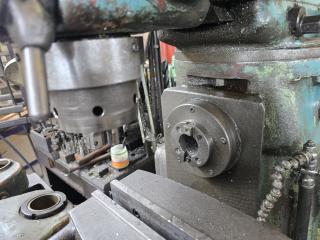

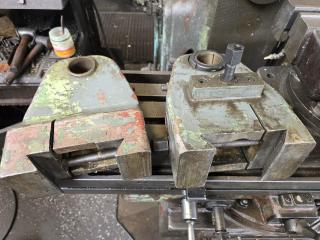

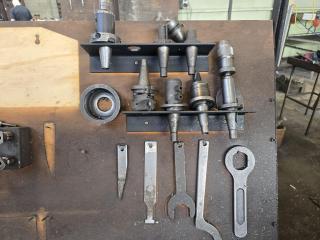

Some tooling
Dimensions
Length: 1700mm Width: 1630mm Height: 2150mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Basic Test - The products main function has been tested and operates
