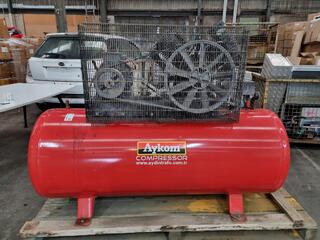

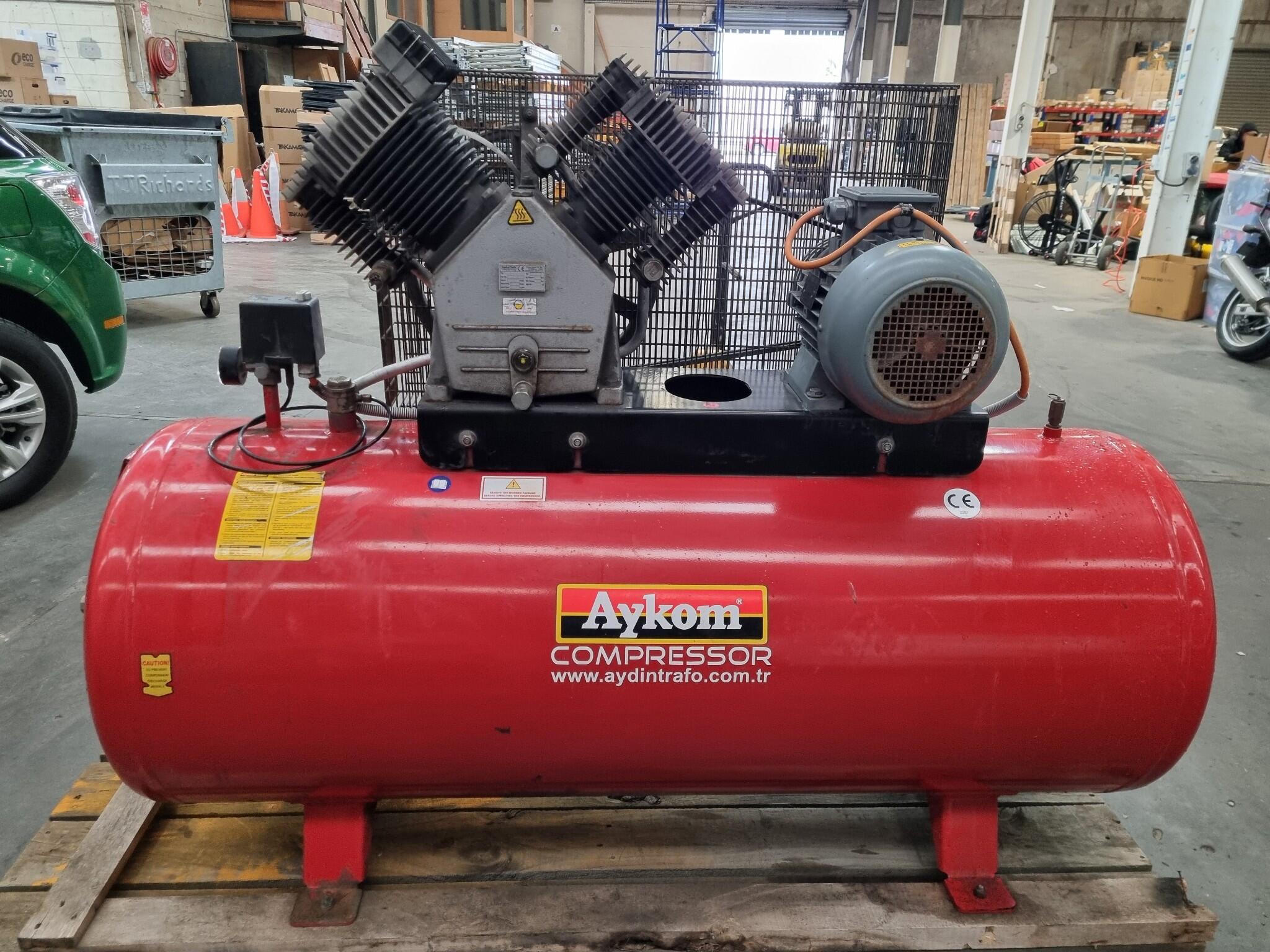

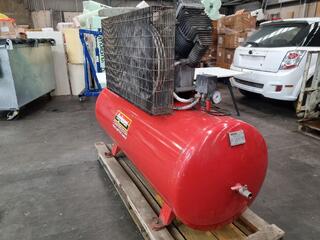

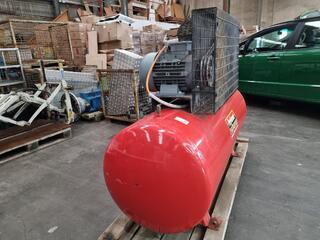

Aykom 530L Air Compressor.

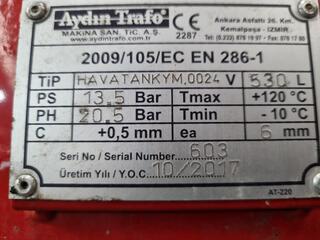

Tank brand Aydin Trafo.
Model PD22.0530.10TF.KY1.
Tank capacity 530 litres.
Tank type HAVATANKYM.0024 V.
Tank design pressure PS 13.5 bar.
Tank test pressure PH 20.5 bar.

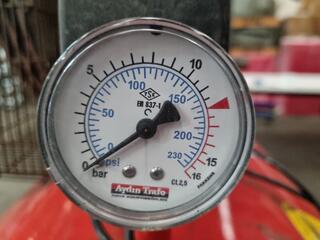

Maximum working pressure 13.5 bar.
Working pressure 12 bar.
Maximum temperature +120°C.
Minimum temperature -10°C.
Shell thickness 6 mm.
Serial number 603.
Year of manufacture 10/2017.

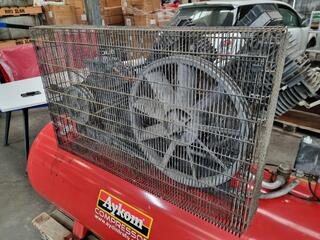

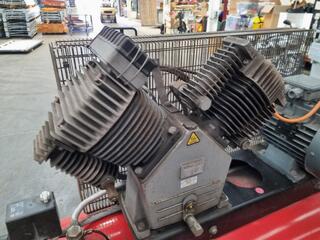

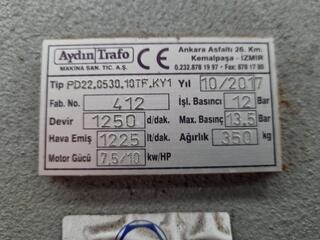

Air Compressor brand Aydun Trafo.
Air Compressor speed 1250 d/min.
Air intake 1225 litres per minute.
12bar max, 10bar normal.
Manufactured 10/2017.

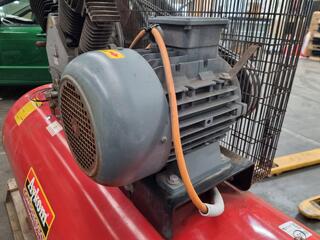

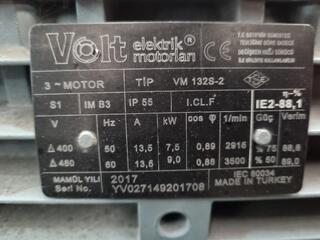

Motor brand Volt Elektrik Motorlari.
Power 7.5 kW.
Model VM 132S-2.
Protection class IP55.
Efficiency class IE2 88.1.
Voltage 400 V at 50 Hz in delta.
Current 13.5 A at 50 Hz.
Speed 2915 rpm at 50 Hz.
Unable to test as no 3-phase power cable attached.
Dimensions
Length: 1800mm Width: 630mm Height: 1320mm
Condition
Very Good - The item has light signs of wear and usage but is a well above average example
Testing
Untested - The product has not been tested
