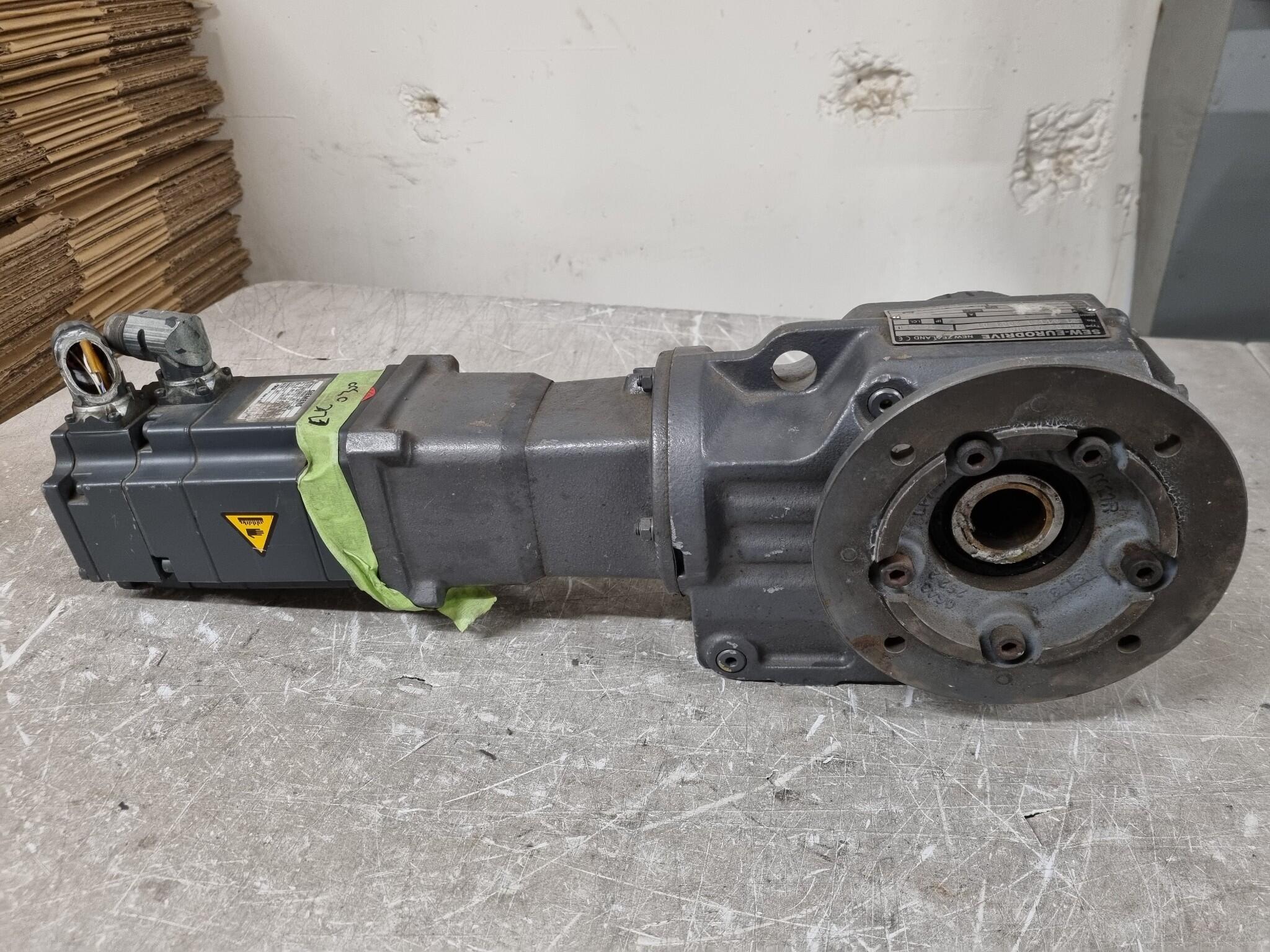

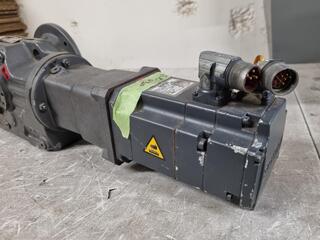

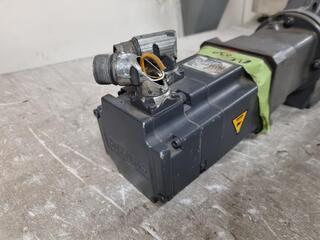

Siemens servo motor and SEW-Eurodrive gearbox assembly.

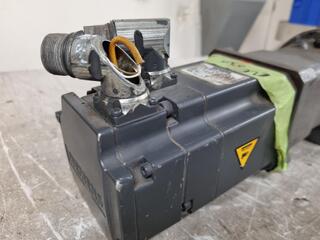

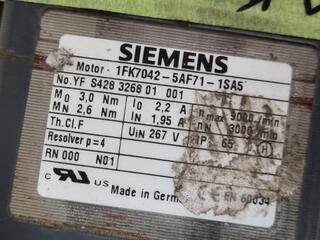

Siemens motor details:
Type 1FK7042-5AF71-1SA5.
Number YF S428 3268 01 001.
Torque Mo 3.0 Nm.
Torque MN 2.6 Nm.
Current Io 2.2 A.
Current IN 1.95 A
Speed nmax 9000 1min
Speed nN 3000 1min
Voltage Uin 267 V
Protection rating IP65.
Resolver poles p=4
Made in Germany.

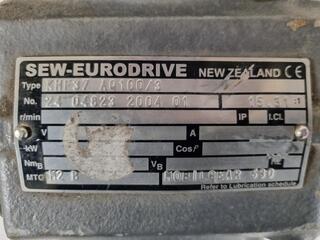

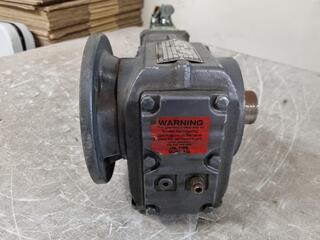

SEW-Eurodrive Gearbox details:
Type KHF37 AQ1003
Number 24 04823 2004 01
Ratio 15.31 1
Oil type Mobilgear 630.

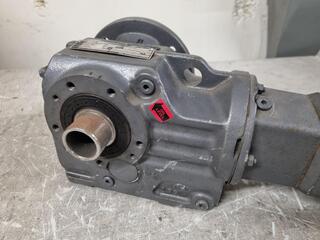

Hollow Gearbox output shaft 25mm long, 38mm outer dia, 30mm inner dia.

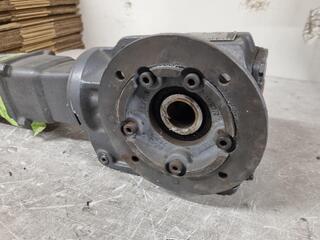

Mounting flange 160mm dia.
510mm total assembly length.
23.6kg total weight.
