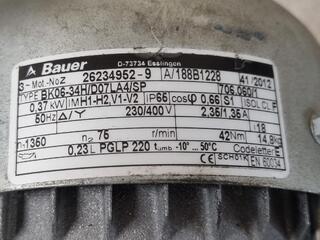

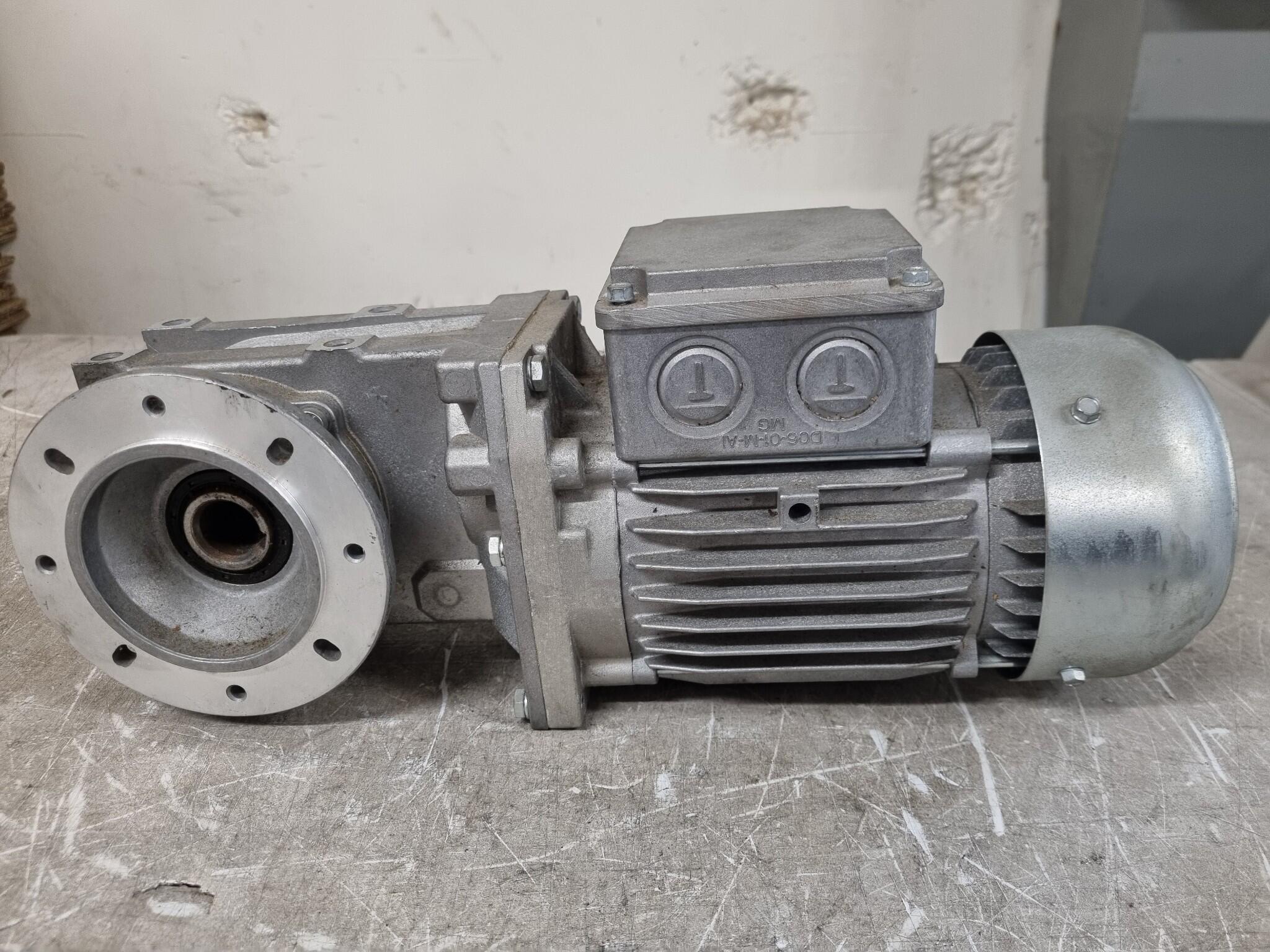

Manufacturer Bauer.
Type BK06-34H/D07LA4/SP.

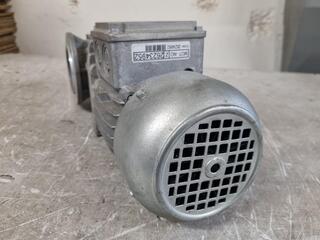

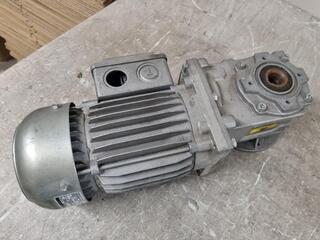

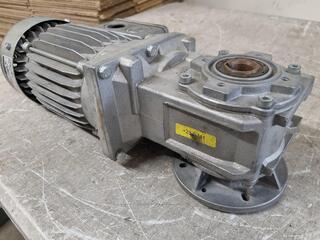

3 phase gear motor.

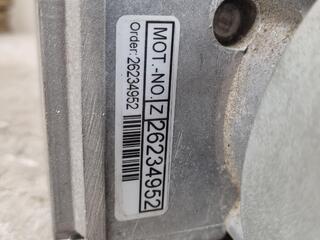

Motor number 26234952-9.
Order number 26234952.
Rated power 0.37 kW.
Rated voltage 230/400 V.
Rated current 2.35/1.35 A.
Frequency 50 Hz.
Connection delta or star.
Ingress protection rating IP66.
Duty type S1.
Insulation class F.
Power factor cos phi 0.66.
Motor speed 1350 r/min.
Gear output speed 75 r/min.
Rated torque 42 Nm.

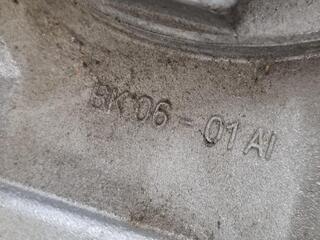

Gearbox marking BK06-01 A1.
Ambient temperature range -10 to 50 degrees Celsius.
Mass 14.8 kg.
370mm long.

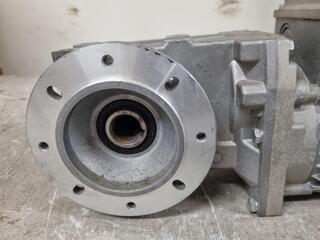

Gearbox mounting flange diameter 80mm inner, 120mm outer.
Unsure if this was ever used. Exterior marks and dust from storage.
Dimensions
Length: 400mm Width: 180mm Height: 160mm
