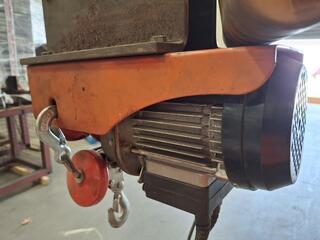

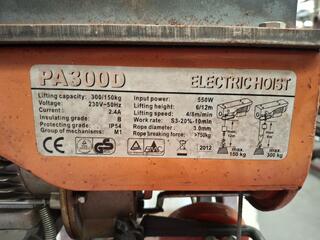

Model PA300D
Type electric hoist
Lifting capacity 300 kg single line or 150 kg double line
Voltage 230 V 50 Hz
Current 2.4 A
Input power 550 W
Insulating grade B
Protection grade IP54
Group of mechanisms M1
Lifting height 6 m at 300 kg
Lifting height 12 m at 150 kg
Lifting speed 4 m per min at 300 kg
Lifting speed 8 m per min at 150 kg
Duty cycle S3 20 percent 10 min
Rope diameter 3.0 mm
Rope breaking force greater than 750 kg
Wired pendant control with emergency stop button

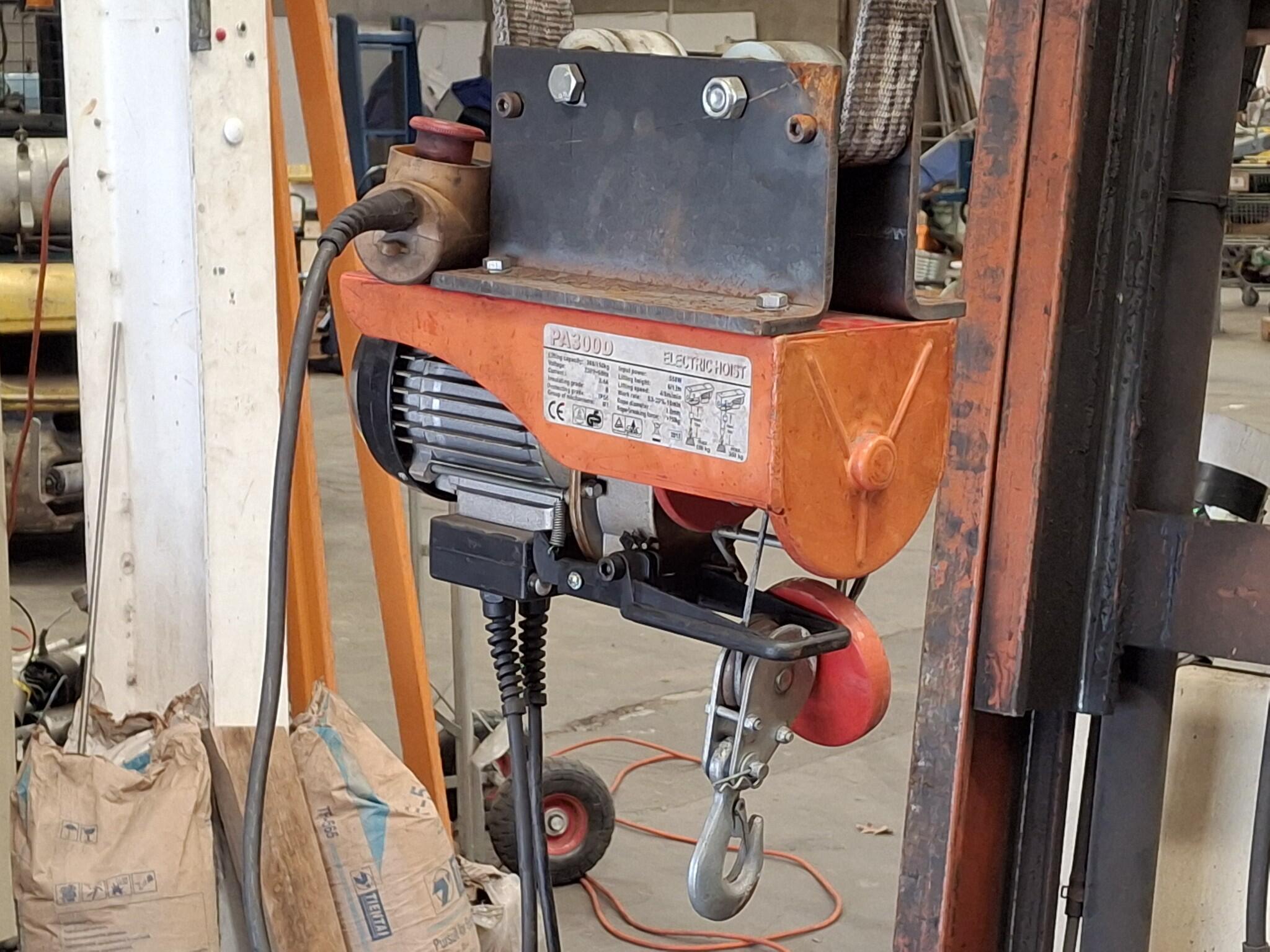

LIFTING STROP USED TO HANG IN PHOTOS NOT INCLUDED
ELECTRIC MOTOR USED IN DEMONSTRATION VIDEO NOT INCLUDED
Dimensions
Length: 320mm Width: 140mm Height: 300mm
