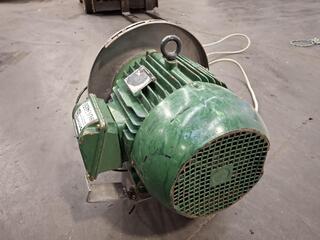

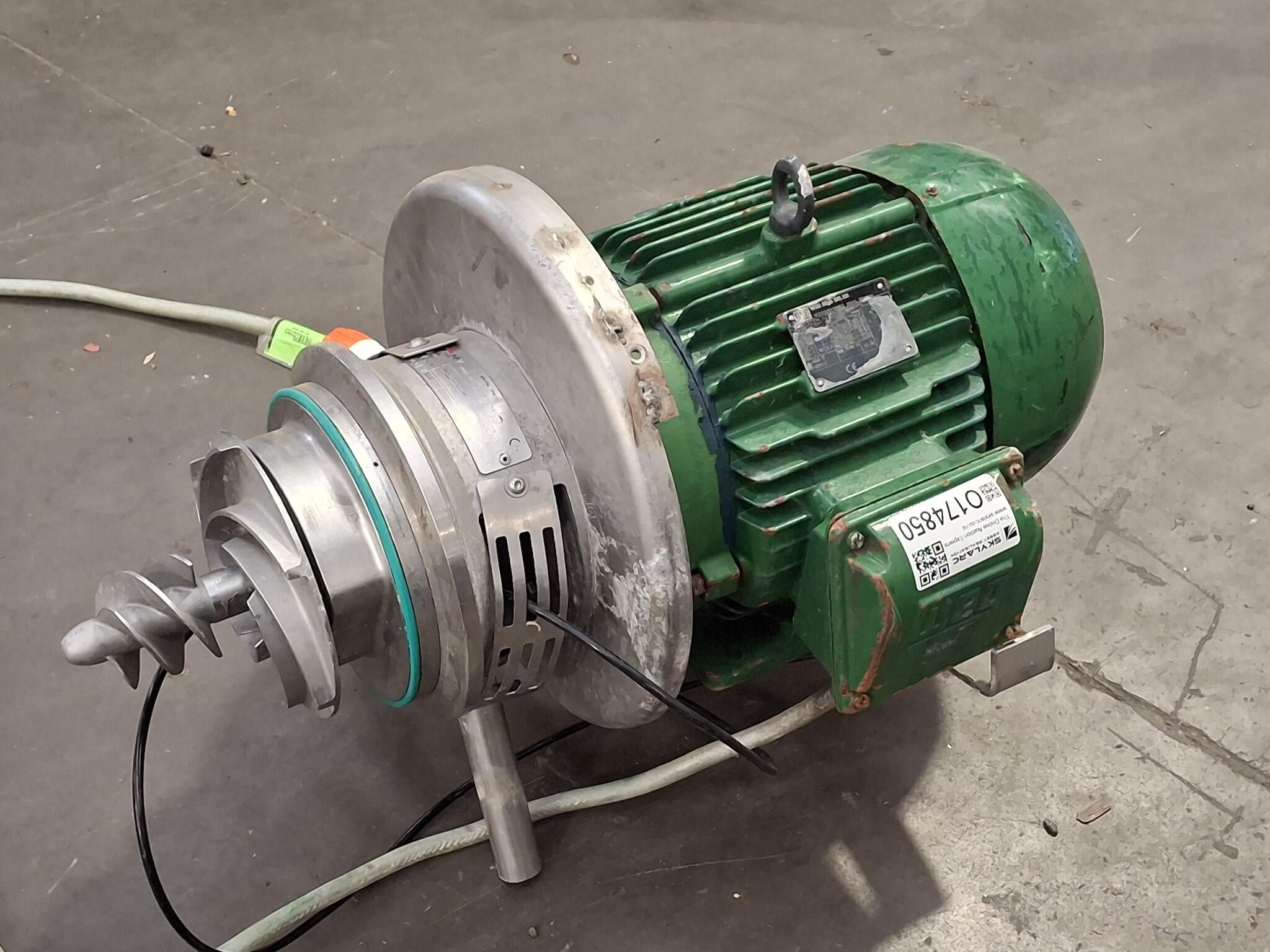

APV W+35 centrifugal pump
APV Fluid Handling pump
Order No 287721
Motor brand WEG
Motor model W22 High Eff E3
Motor designation W2000550B3
Motor power 5.5kW at 50Hz
Motor speed 2930rpm at 380V to 415V 50Hz
Motor rating 6.3kW at 60Hz
Motor speed 3530rpm at 440V to 460V 60Hz
Motor protection rating IP66
Motor duty rating S1
Motor insulation class H
Motor frame size 112S
Motor mass 62kg

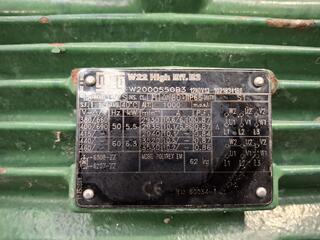

Nameplate indicates 380V to 660V 50Hz operation
Nameplate indicates 440V to 460V 60Hz operation
Electric plug rated 20A
Electric plug rated 500V
Electric plug rated 50Hz
Electric plug type PDL 56PA420
Three pin industrial plug fitted

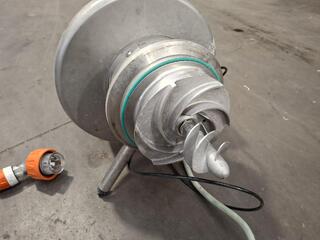

Pump has stainless steel impeller assembly
Green painted electric motor housing
Lifting eye fitted to motor body
Dimensions
Length: 660mm Width: 440mm Height: 420mm
