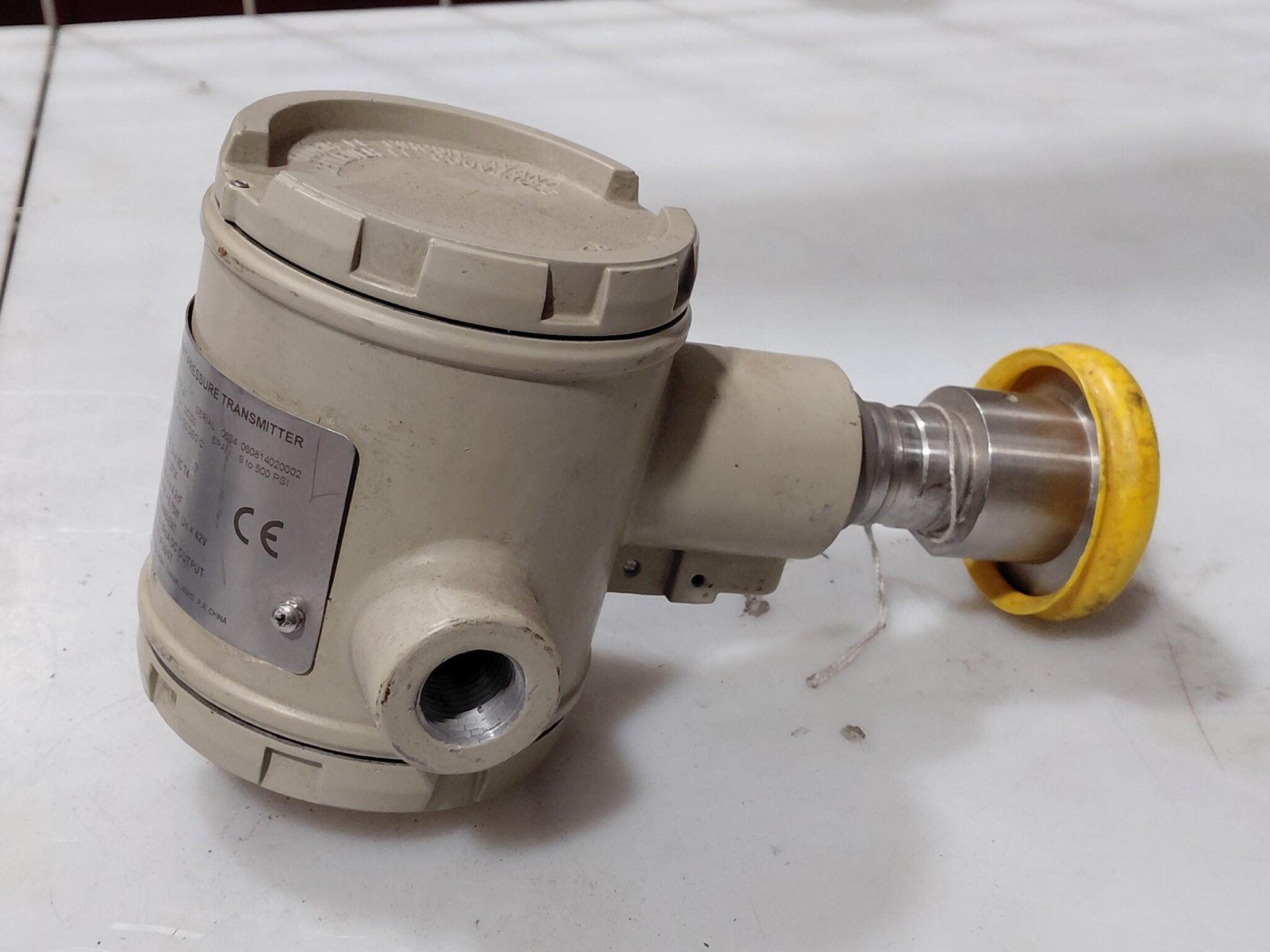

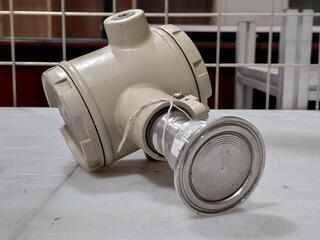

Brand: Honeywell
Series: ST 3000 Smart Pressure Transmitter
Model: STG14T-Z10-00000-4G-XXXX
Serial: 0634 060814020002
MAWP: 500 psi
Pressure range: -9 to 500 psi
Factory calibration: 0 to 862 kPa
Span: 9 to 500 psi
Body: STG14TR-Z1
Diaphragm material: stainless steel (SS)
Fill: DC200
Process temperature limits: -40 to 150 degrees Celsius
Maximum ambient temperature: 93 degrees Celsius
Supply voltage: 11 to 42 VDC
Output signal: 4 to 20 mA DC
Enclosure rating: IP66/IP67
Certification marking: Ex ia IIC T4
AUS Ex 13.371X
Ui: 30 V
Li: 150 uH
Ci: 4.2 nF
Pi: 0.75 W
Un: 42 V
Label code: 50010604-001 ISS. A
Dimensions
Length: 150mm Width: 150mm Height: 250mm
