Brand: Schneider Electric
Series: TeSys
Device type: Contactor

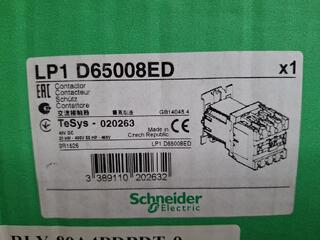

Model: LP1 D65008ED

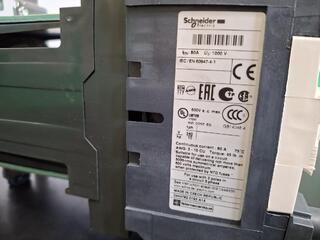

Marking on front: LP1D65008 DC
Control voltage: 48V DC
Rated insulation voltage Ui: 1000V
Rated operational voltage: 600V AC max
Rated thermal current Ith: 80A
Continuous current: 80A at 75°C
Frequency rating on label: 50 Hz and 60 Hz
Motor power rating: 30kW at 400V
Motor power rating: 40HP at 460V
Utilization category and standards: IEC EN 60947-4-1
Listed to UL standard GB14048.4
Suitable for use on a circuit capable of delivering not more than 5000 rms symmetrical amperes 600V max when protected by NTD fuses
For use with 2 poles in circuit 3 phase
Torque specification: 45 lb in for AWG 3-10 CU conductors
Telemecanique branded on side label

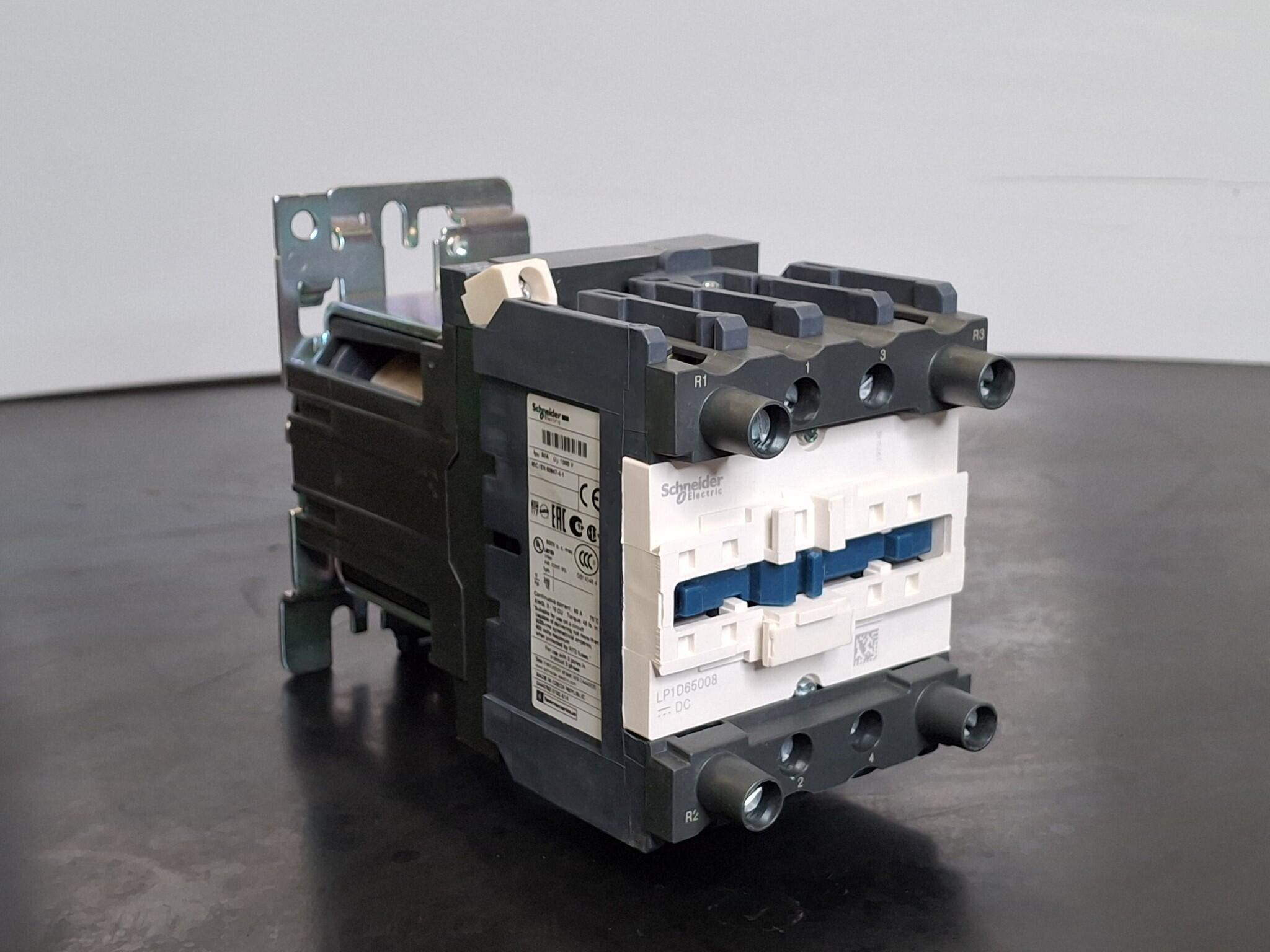

Mounting bracket shown attached
Dimensions
Length: 190mm Width: 140mm Height: 90mm
