Brand: Sayu Industrial Co. Ltd.

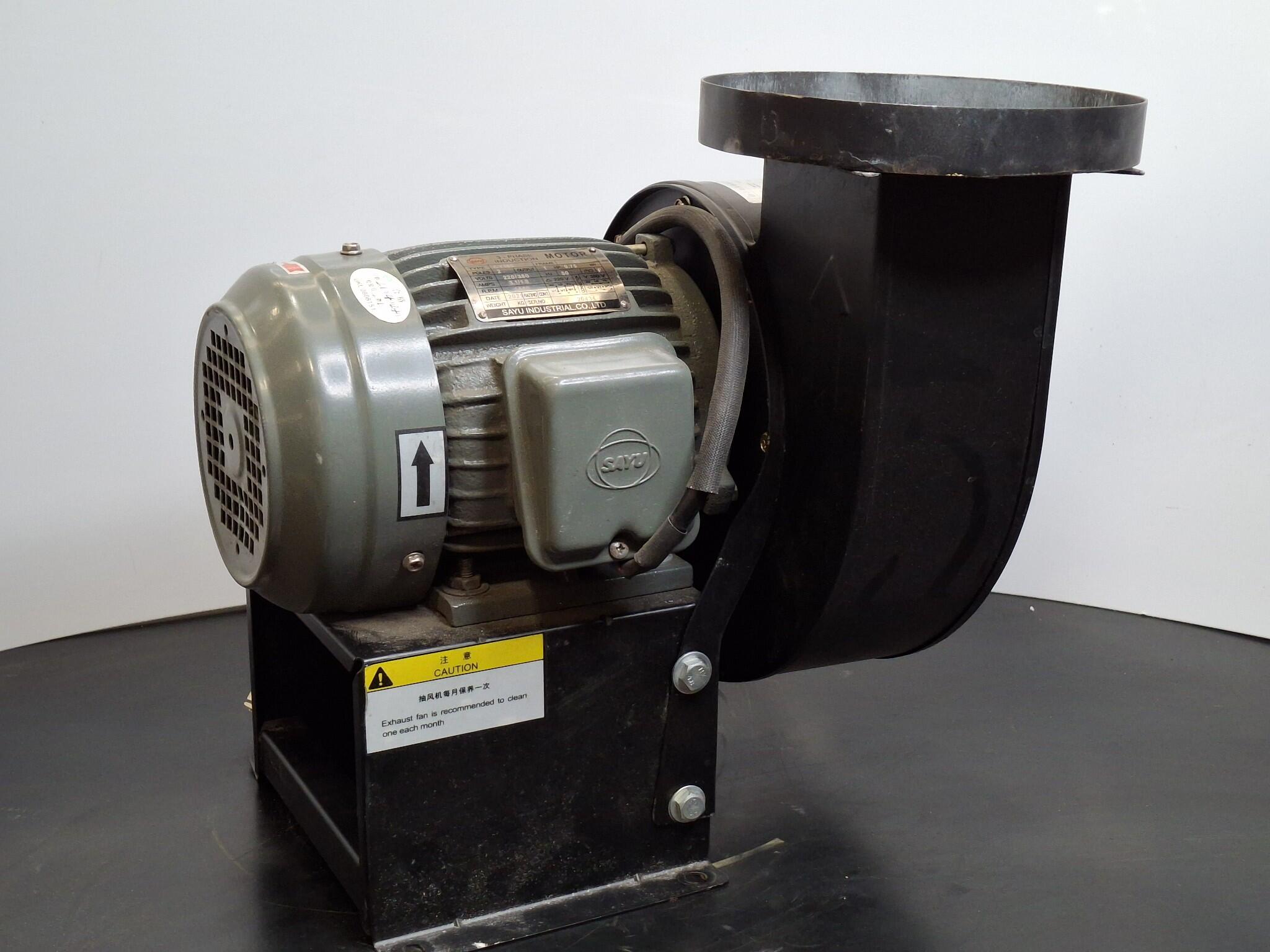

Fan model: CY180 Sirocco Fan.

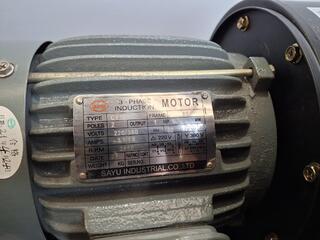

Motor type: 3 phase induction motor.
Motor type designation: CY180.
Motor frame size: 80.
Motor output: 1 HP.
Motor power: 0.75 kW.
Motor poles: 2.
Motor voltage: 220 V slash 380 V.
Motor frequency: 50 Hz.
Motor current: 3.1 A at 220 V and 1.8 A at 380 V.
Motor speed: 2850 rpm.
Motor insulation class: F.
Motor rating: continuous.
Motor weight: 16 kg.
Fan voltage: 220 V slash 380 V.
Fan phases: 3 phase.
Fan cycles: 60 Hz slash 50 Hz.
Fan current: 3.2 A slash 1.1 A.
Fan power: 0.75 kW.
Fan speed: 3200 rpm slash 2800 rpm.
Maximum air flow: 25 cubic metres per minute slash 22 cubic metres per minute.
Maximum pressure: 120 mm Aq slash 90 mm Aq.

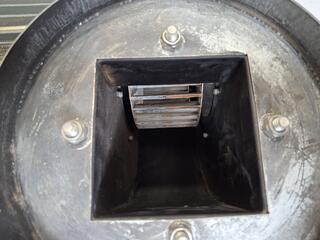

Square outlet opening approximate width: 100 mm.

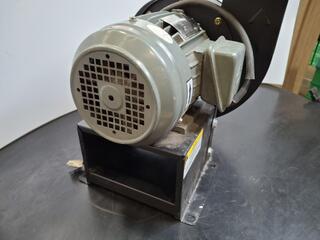

Mounted on metal base with four fixing holes.
Dimensions
Length: 400mm Width: 340mm Height: 400mm
