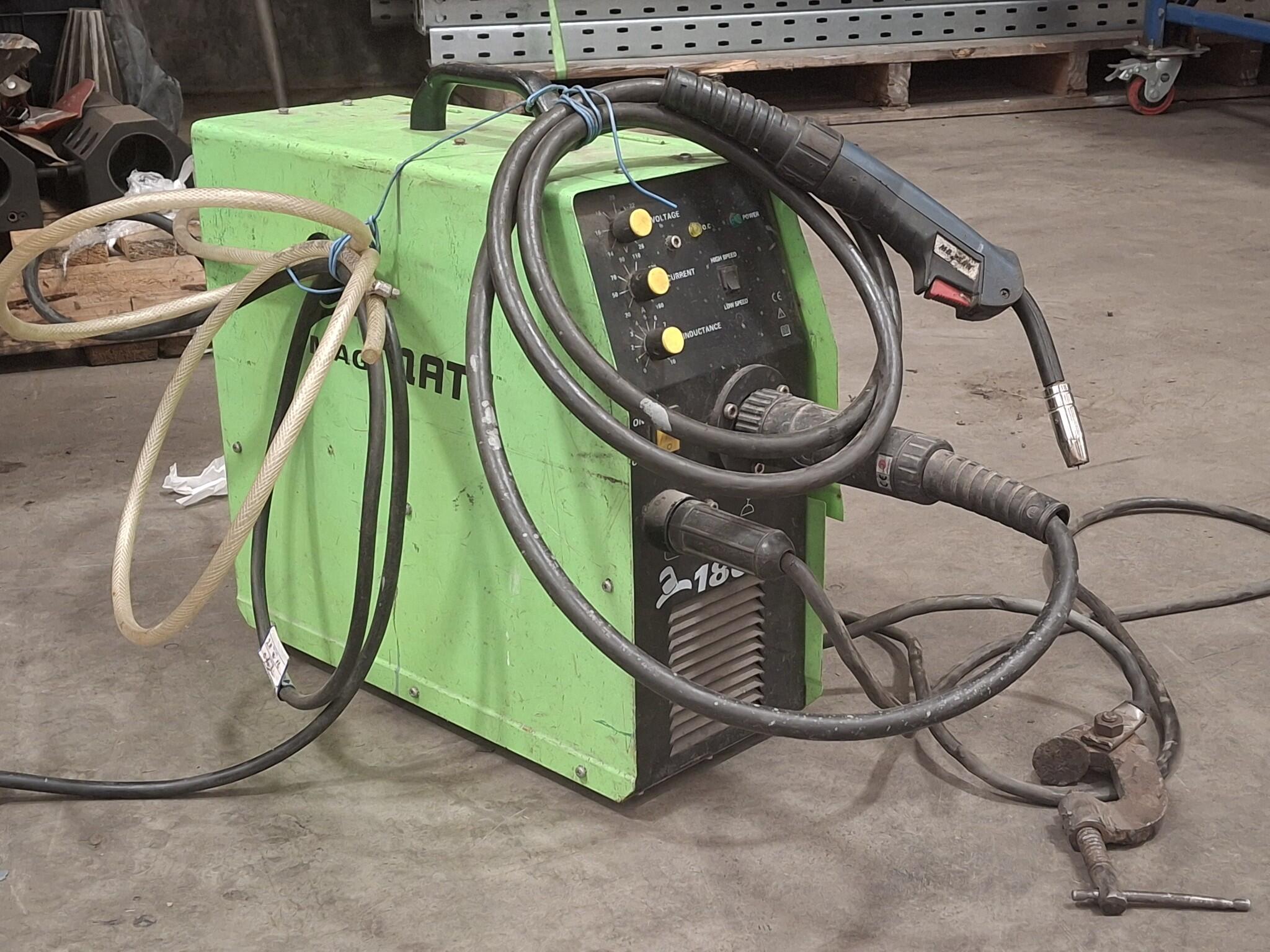

Model Magmate 180P
Input AC 240V single phase 50 to 60Hz
Rated output range 40A 16V to 180A 23V
Duty cycle 60 percent at 180A 23V
Duty cycle 100 percent at 132A 20.6V
Open circuit voltage U0 51V
Protection class IP23
Cooling type air cooled

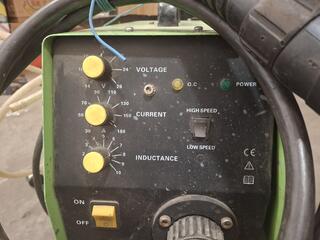

Front panel controls for voltage current and inductance
Voltage adjustment range 14V to 26V
Current adjustment range 30A to 180A
Inductance adjustment scale 1 to 10
Power indicator and O.C indicator lights on front panel
High speed and low speed wire feed switch on front panel
On off power switch on front panel

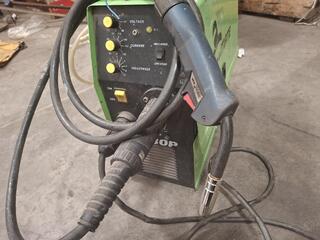

Includes MIG torch with cable

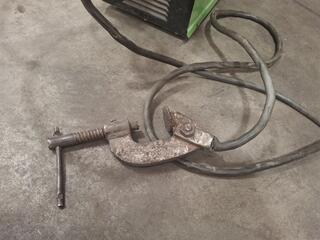

Includes work clamp with cable
Internal wire feeder installed
Wire spool hub and spool present
Machine casing colour green
CE marked
Standard EN60974-1 shown on rating plate
Dimensions
Length: 460mm Width: 200mm Height: 430mm
