SKYLARC ASSET REALISATION
Save us as a favourite seller to keep up with all our online events
INDUSTRIAL PLANT AND MACHINERY AUCTION
2018 Range Rover, Kassow Robot, Pallet Racking, Soco Cold Cut Saw, Food Grade Conveyors, Stainless Hopper, Press. Power and Hand Tools, Engineering Tooling and Supplies, Workbenches
AND MUCH MORE
!!!Almost All $1 Start = Reserve!!!
See Sellers Other Listings!
Brand Endress+Hauser
Model Promag 10
Sensor type Promag W

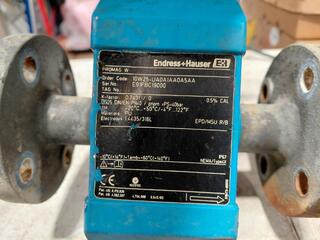

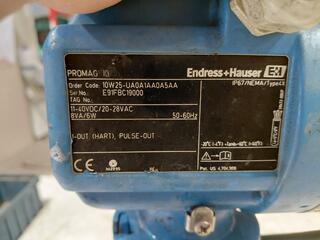

Order code 10W25-UA0A1AA0A5AA
Serial number E91FBC19000

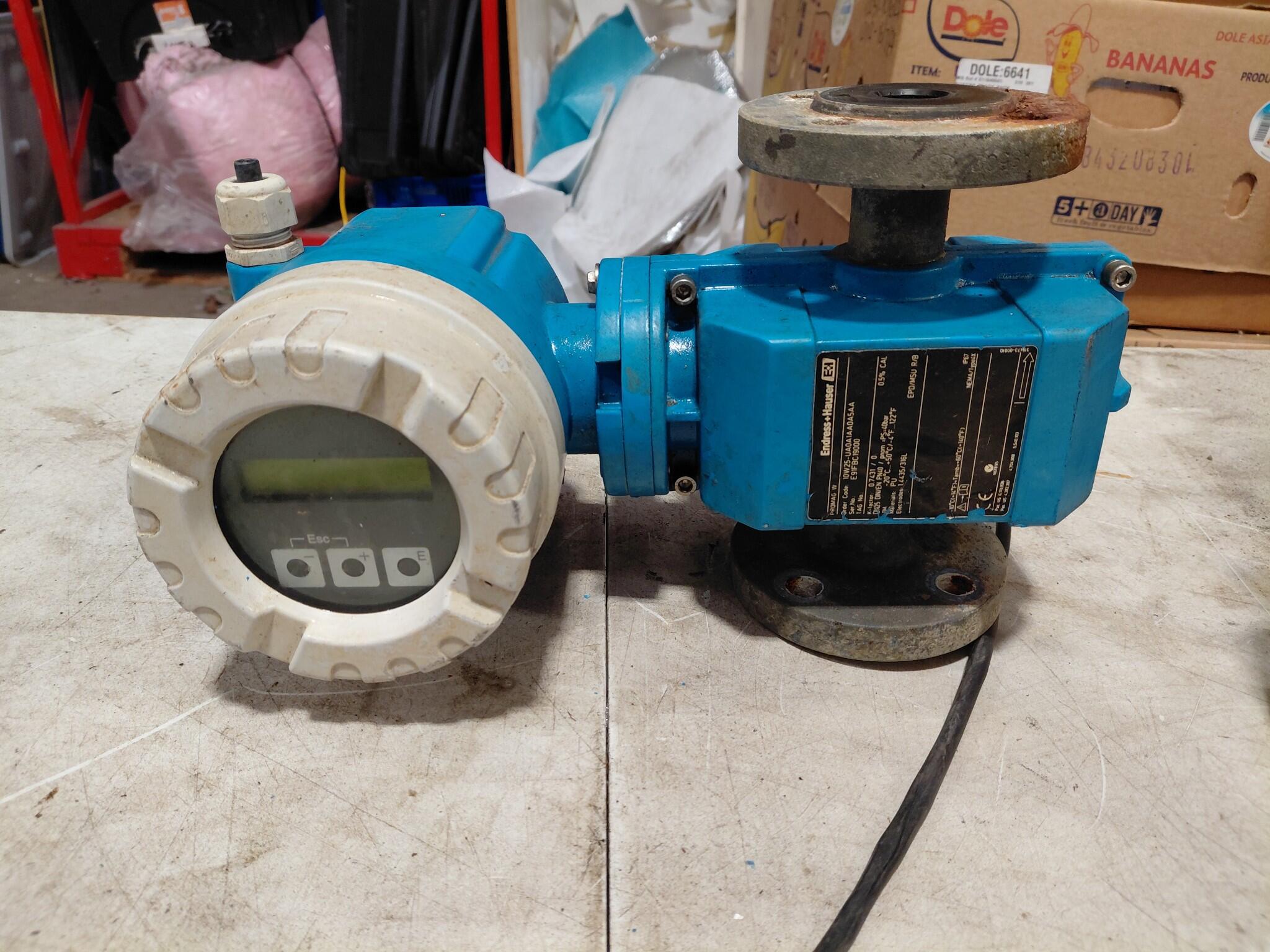

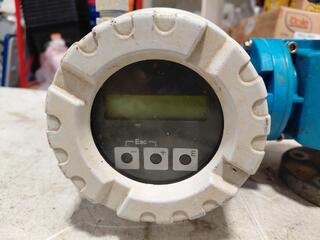

Flowmeter with integral transmitter and display
Power supply 11–40 VDC or 20–28 VAC
Power consumption 8 VA or 6 W
Output I-OUT HART and pulse-out
Ingress protection rating IP67
Enclosure type NEMA Type 4X
K-factor 0.7431 per unit as marked
Nominal diameter DN25
Flange rating DIN EN PN40
Maximum pressure PS up to 40 bar as marked
Ambient temperature range minus 20°C to plus 50°C
Stated calibration accuracy 0.5 percent CAL
Liner material PU
Electrode materials 1.4435 and 316L stainless steel

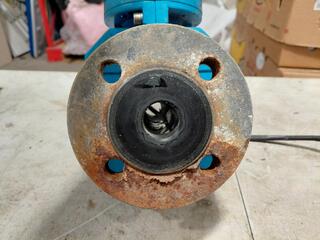

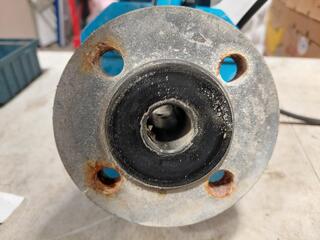

End connections are flanged
Unit has a cabled connection with exposed wire end as shown
Condition and operation not tested
Dimensions
Length: 350mm Width: 200mm Height: 200mm
