ENGINEERING PLANT AND MACHINERY AUCTION
Fully Restored Cincinnati 1801 Guillotine, Pines 107-5D-54 Hydraulic Tube & Pipe Bender with Tooling, Doringer D350 Cutoff Saw, Doall 24” Metal Cutting Bandsaw, Colchester Lathe
The most immaculate machines of their kind we’ve ever seen
ONLINE NOW - See Sellers Other Listings!
Please read the VIEWING, PICKUP and DELIVERY details for this auction under the description, If you can’t collect on the dates below please don’t bid

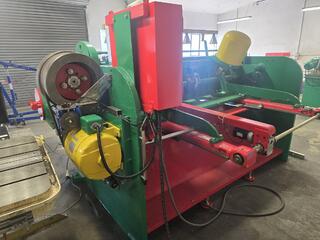

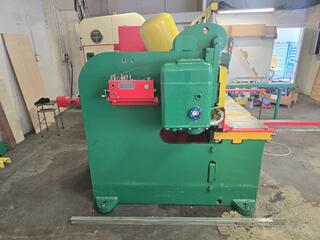

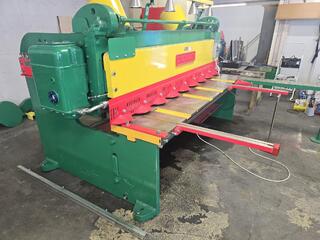

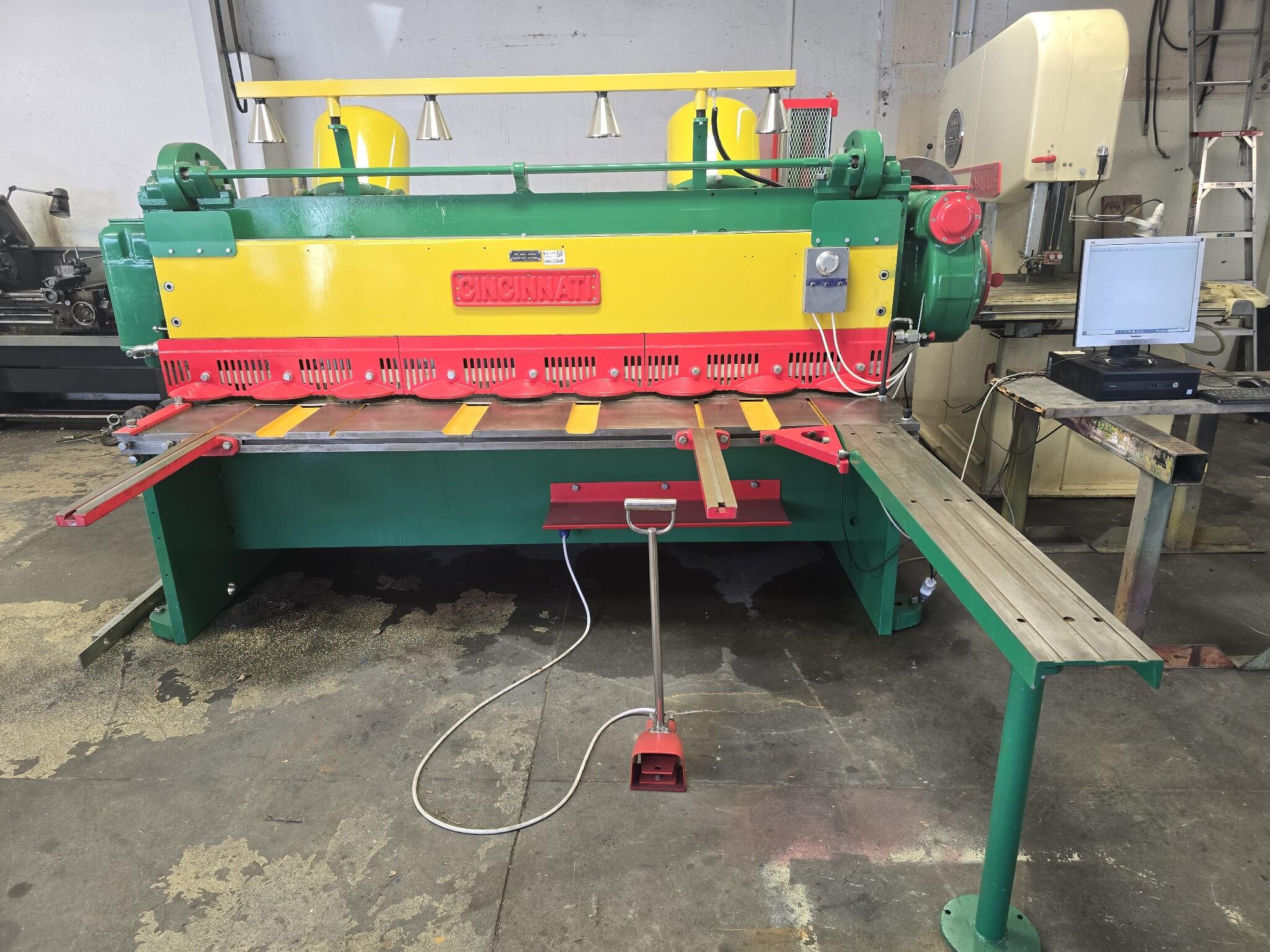

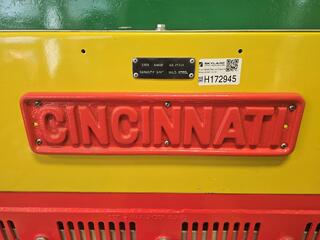

Model: Cincinnati 1808 Shear
Probably mid 1950s
Fully stripped and completely rebuilt

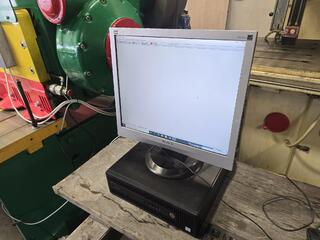

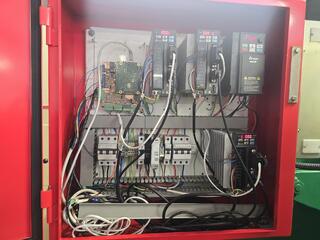

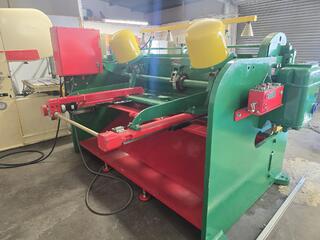

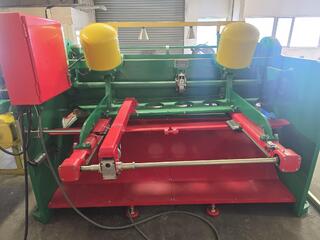

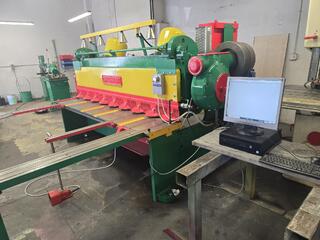

Modernized with electric back gauge and computer control
Capacity: 2.44 m × 6.35 mm mild steel

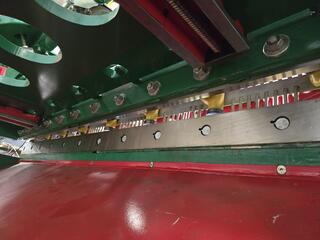

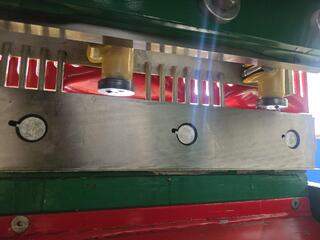

Knife length: 2.54 m
Distance between housings: 2.52 m
Gap: 457 mm
Rake angle: 20.8 mm per 305 mm (≈ 3.9°)

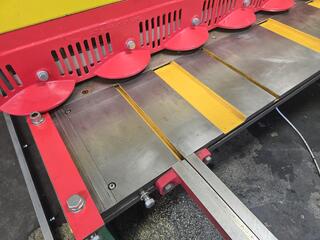

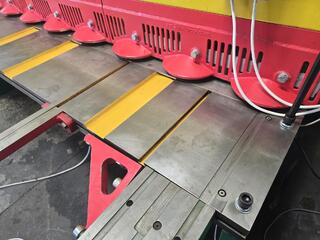

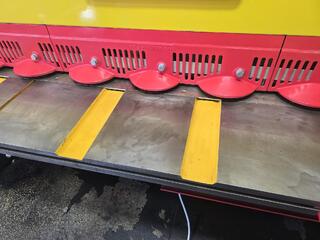

Holddowns: 9
Holddown to knife edge: 15.9 mm
Distance under holddowns: 12.7 mm
Ram adjustment: 17.5 mm
Floor to top of bed: 813 mm
Stroke rate: ≈ 60 per minute

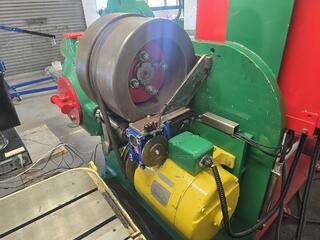

Main drive motor: 5.6 kW / 1610 RPM 220/440 V 3 ph 60 Hz
Weight: 6800 kg
Guards need installation
You will need your own lifting equipment to load this machine unless we are delivering it.
The best one we've ever seen.
To see this machine running:
https://youtu.be/YrgRq4d6GjM
Dimensions
Length: 3900mm Width: 3400mm Height: 1950mm
