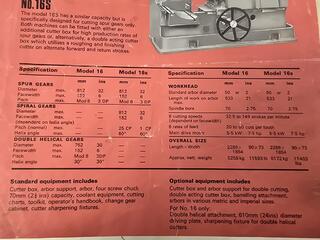

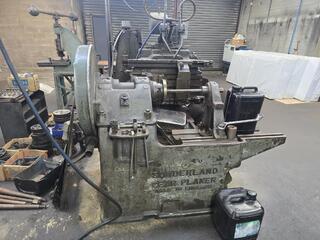

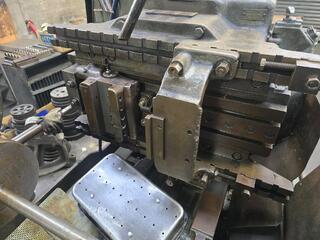

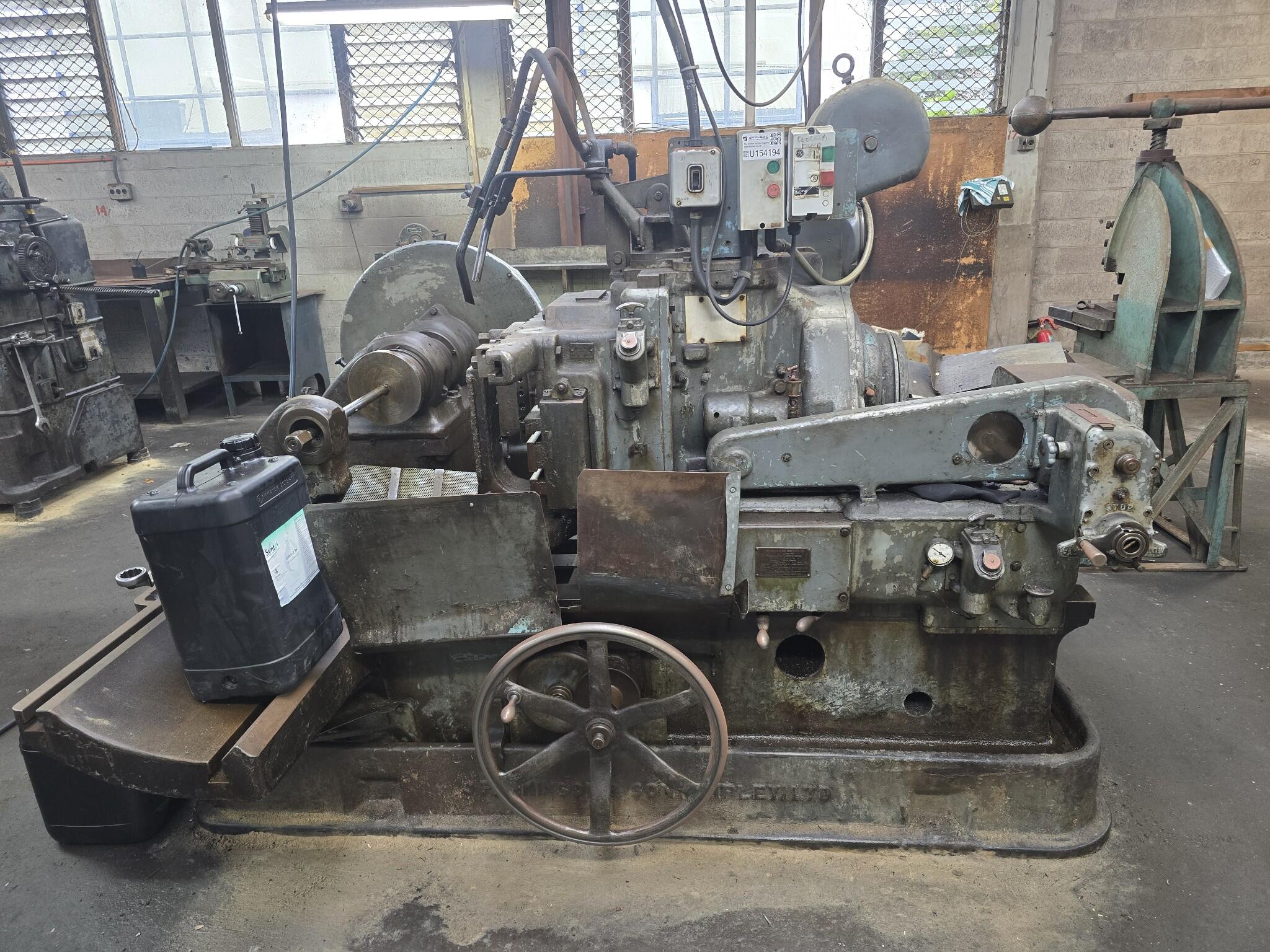

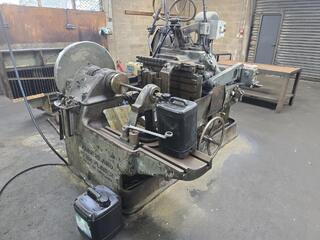

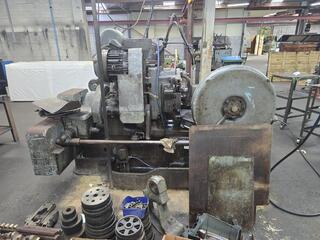

Sunderland 16
Max spur gear diameter 812 mm
Max spur gear facewidth 152 mm
Max spur gear pitch Mod 8
Max helix angle for spiral gears 60 degrees
Max double helical gear diameter 762 mm
Maximum double helical gear facewidth 152 mm
Double helical gear pitch Mod 8
Double helical gear helix angle 30 degrees
Standard arbor diameter 50 mm
Maximum length of work on arbor 533 mm
Spindle bore 70 mm
8 cutting speeds from 32.5 to 149 strokes per minute
8 rates of feed from 20 to 50 cuts per tooth
Main drive motor 5.5 kW

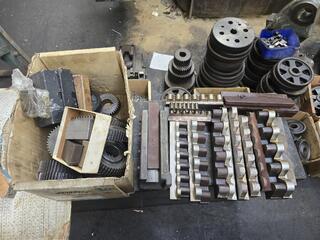

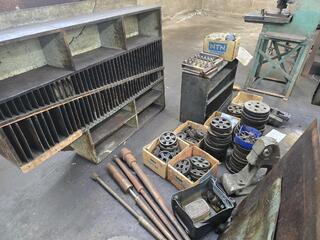

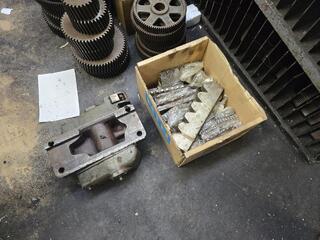

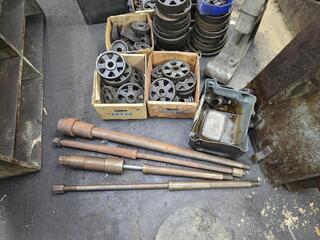

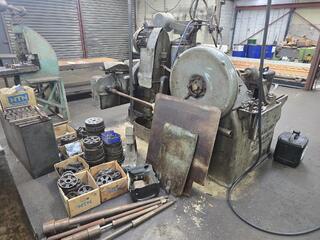

Range of tooling and accessories
You will need your own lifting equipment to load this machine
To see this machine running:
https://youtu.be/YG7chQH9KxI
Dimensions
Length: 2290mm Width: 1850mm Height: 1740mm
