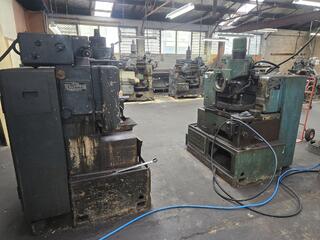

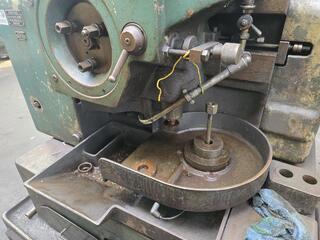

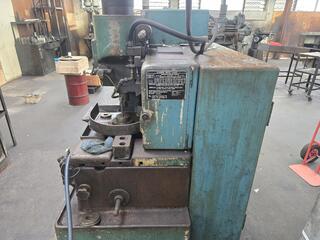

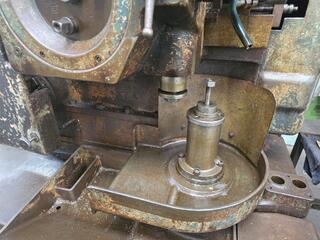

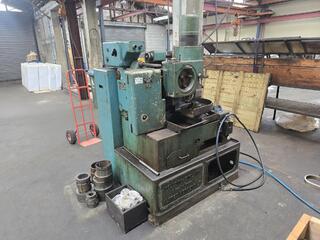

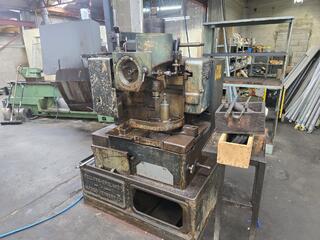

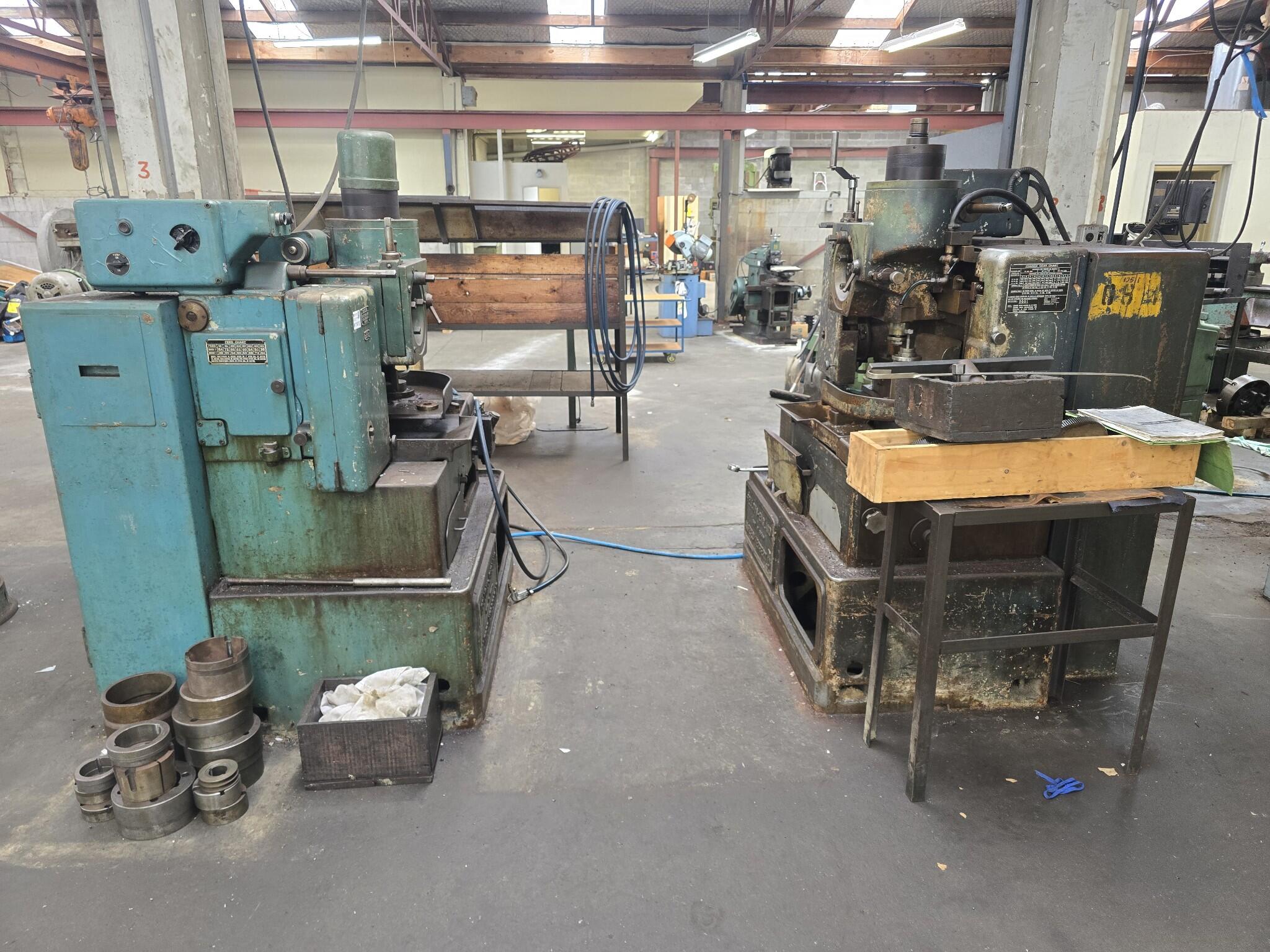

Includes two Fellows England Type 7125A gear shaping machines.
Manufactured by Alfred Herbert.

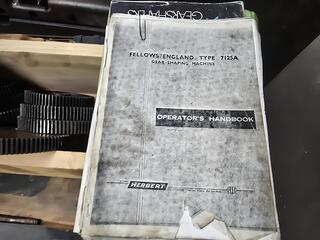

Some manuals

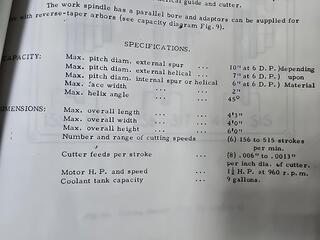

Maximum pitch diameter external spur 10 inches at 6 D.P.
Maximum pitch diameter external helical 7 inches at 6 D.P.
Maximum pitch diameter internal spur or helical 6 inches at 6 D.P.
Maximum face width 2 inches.
Maximum helix angle 45 degrees.
Maximum overall length 4 feet 3 inches.
Number and range of cutting speeds six from 156 to 515 strokes per minute.
Cutter feeds per stroke from 0.006 to 0.0013 inches per inch diameter of cutter.
Motor 1.5 HP at 960 RPM.

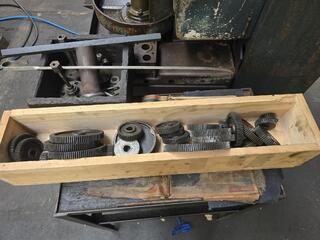

Includes change gears as shown.
Includes some accesories

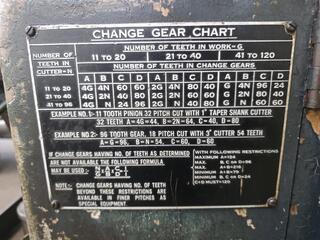

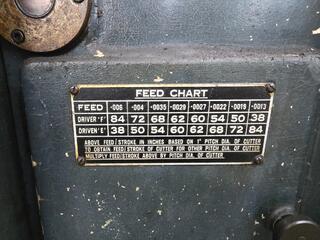

Feed and gear change charts attached to machine.
