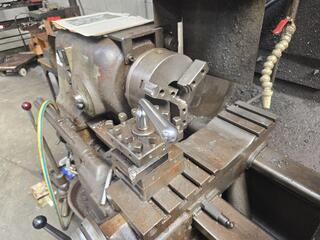

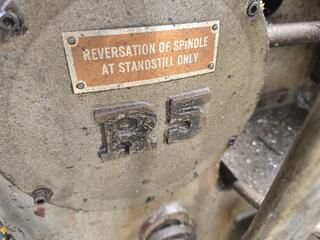

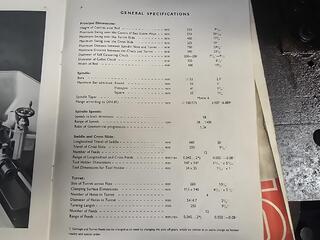

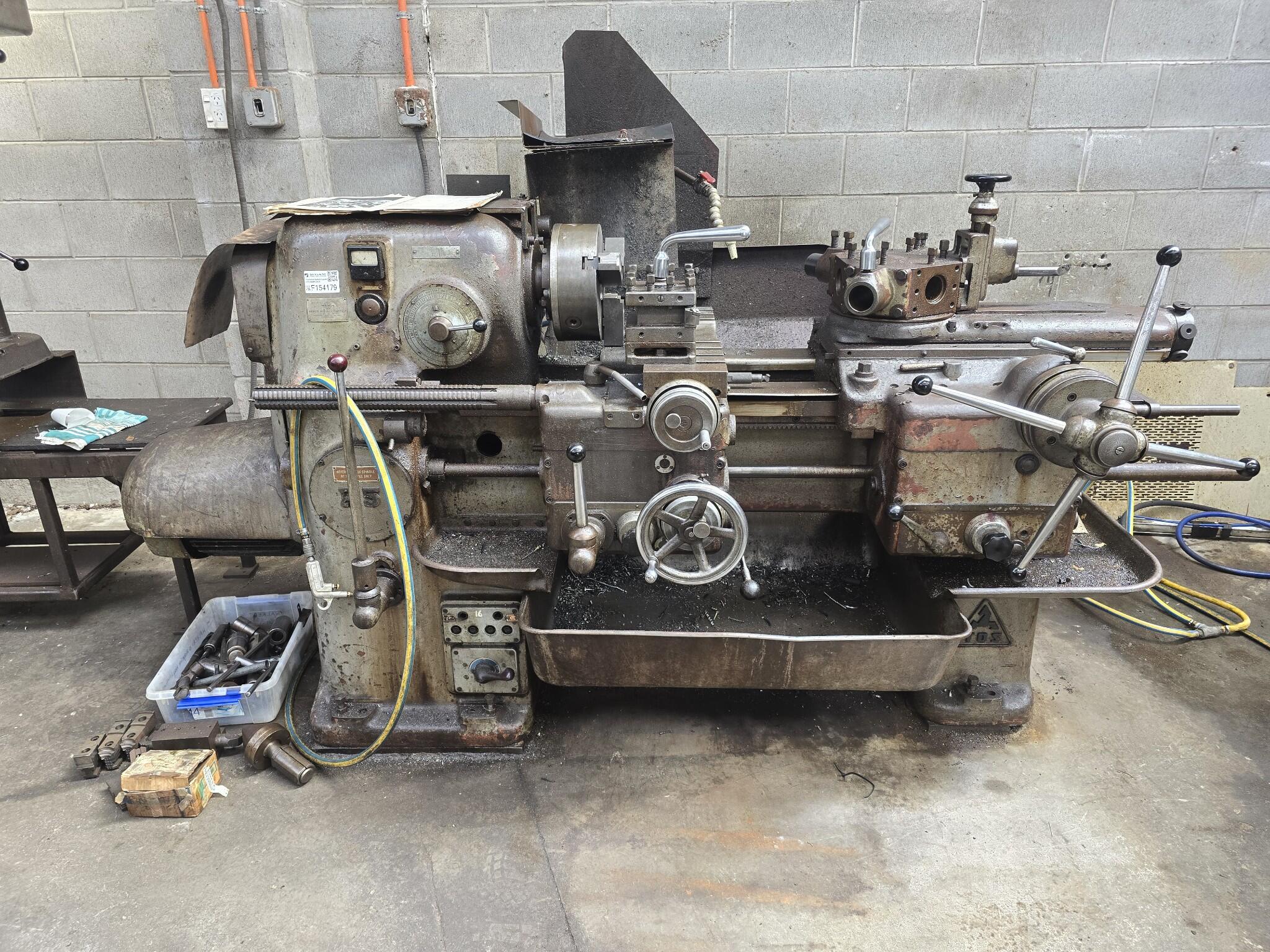

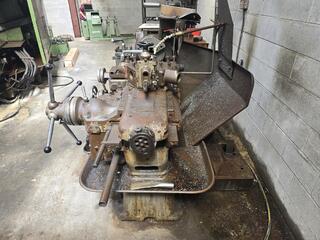

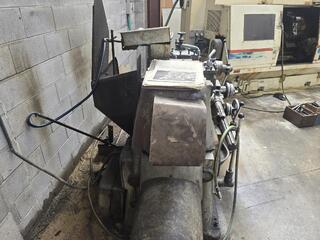

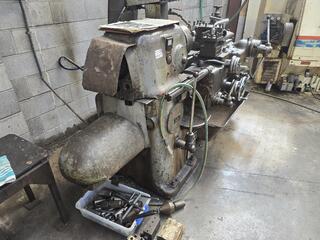

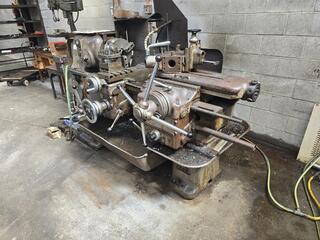

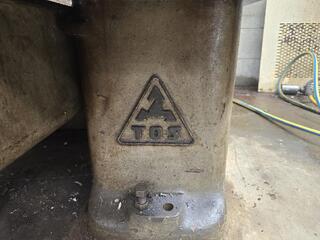

Model: TOS R5
Centres over bed 230mm
Maximum swing over bed 510mm
Maximum swing over turret slide 440mm
Maximum swing over cross slide 255mm
Maximum distance between spindle nose and turret 950mm
Maximum distance between chuck and turret 200 to 250mm
270mm chuck
Width of bed 415mm
Spindle bore 53mm
Spindle taper Morse 6
Spindle speeds 18 range 28 to 1400 rpm
Longitudinal travel of saddle 660mm
Travel of cross slide 250mm
Tool holder dimensions 147 x 147mm

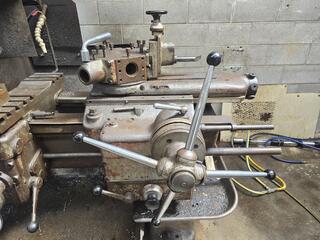

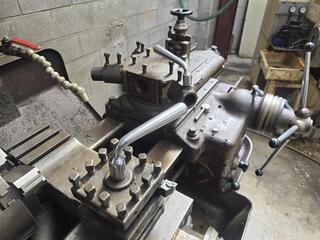

Size of turret across flats 260mm
Number of holes in turret 6
Diameter of holes in turret 54mm
Turning length 250mm
Electric motor 7.5kW

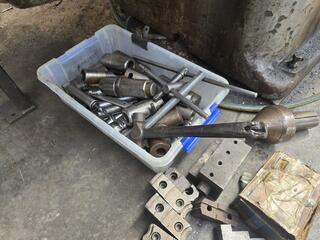

Some accessories and tooling
Dimensions
Length: 2800mm Width: 1400mm Height: 1750mm
