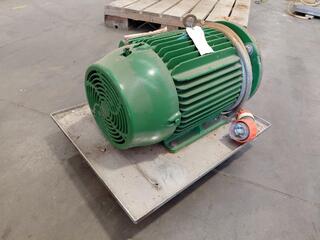

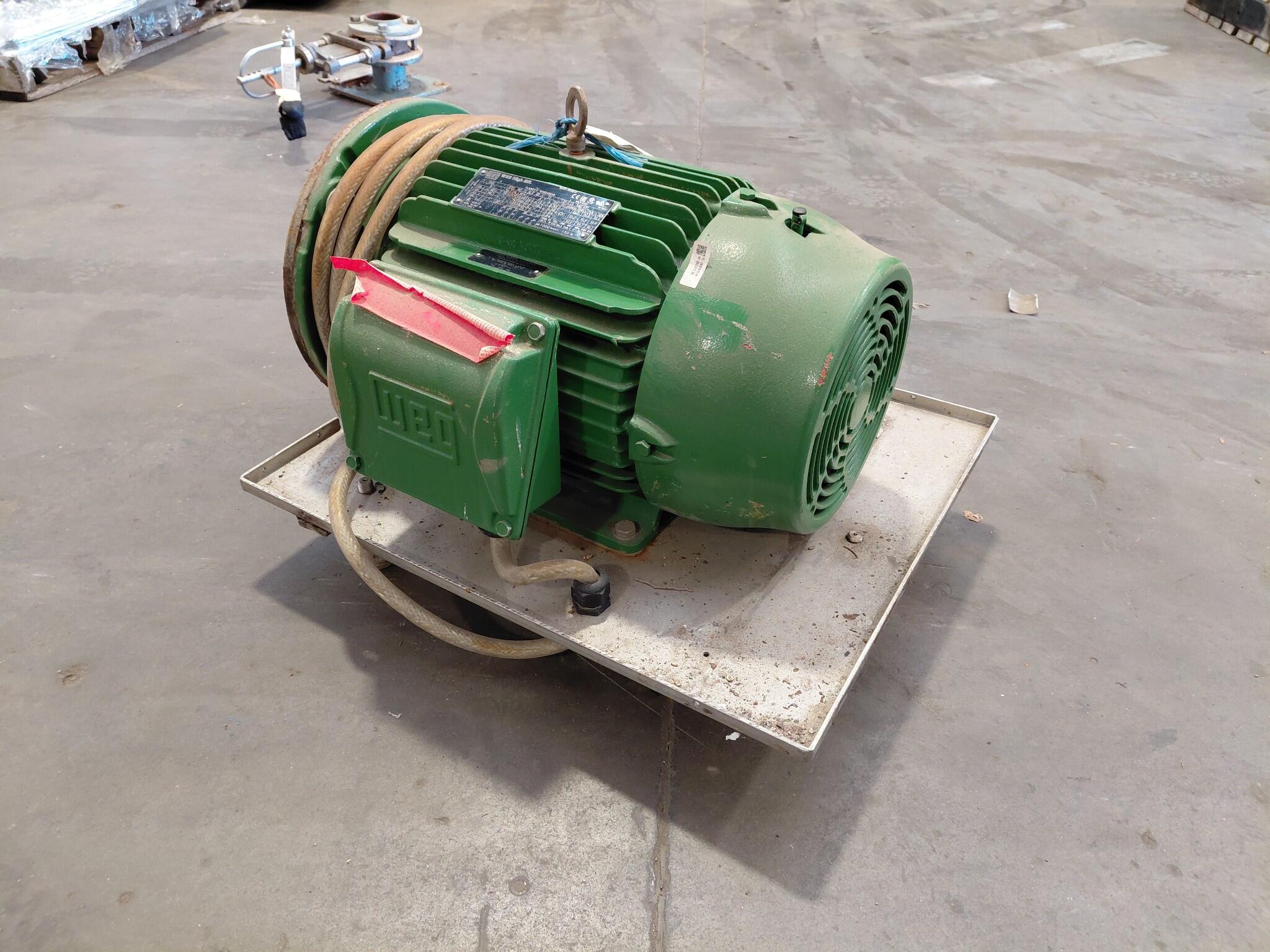

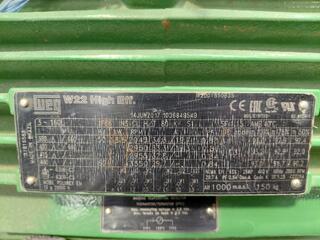

WEG W22 High Efficiency electric motor.
Model TEFFOXC.
Type 3-160L.
Date of manufacture 14JUN2017.
IP66 enclosure rating.
Insulation class H.
Service factor 1.15.
Ambient temperature 40°C.
Rated output 18.5kW at 50Hz.
RPM at 50Hz: 2945/2935/2945 depending on voltage.
Voltage 380V/400V/415V at 50Hz.
Current at 380V: 33.1A.

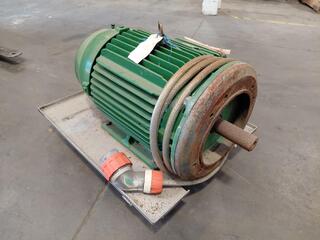

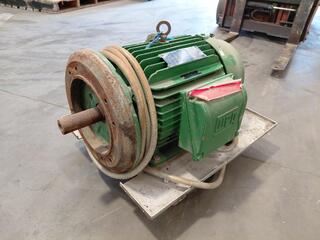

Shaft and flange visible on drive end.

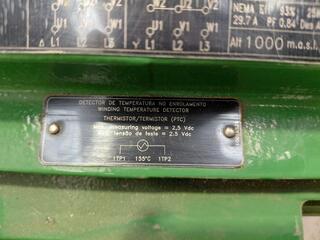

Equipped with winding temperature detector (thermistor/ PTC, max voltage 2.5Vdc).

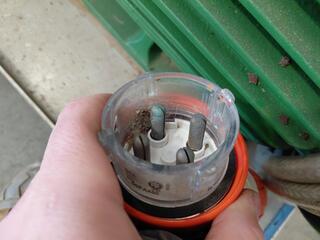

Connector plug attached to power cable.
Supplied on a metal mounting tray.
Bearing types: 6309-C3 and 6208-C3.
Made in Brazil.
Dimensions
Length: 700mm Width: 500mm Height: 400mm
