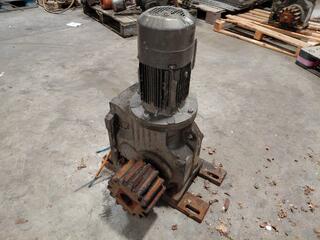

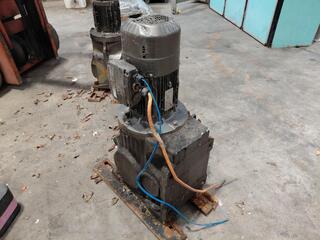

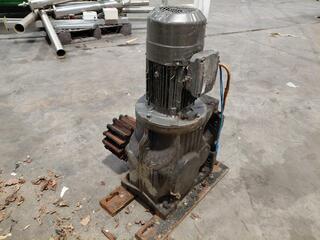

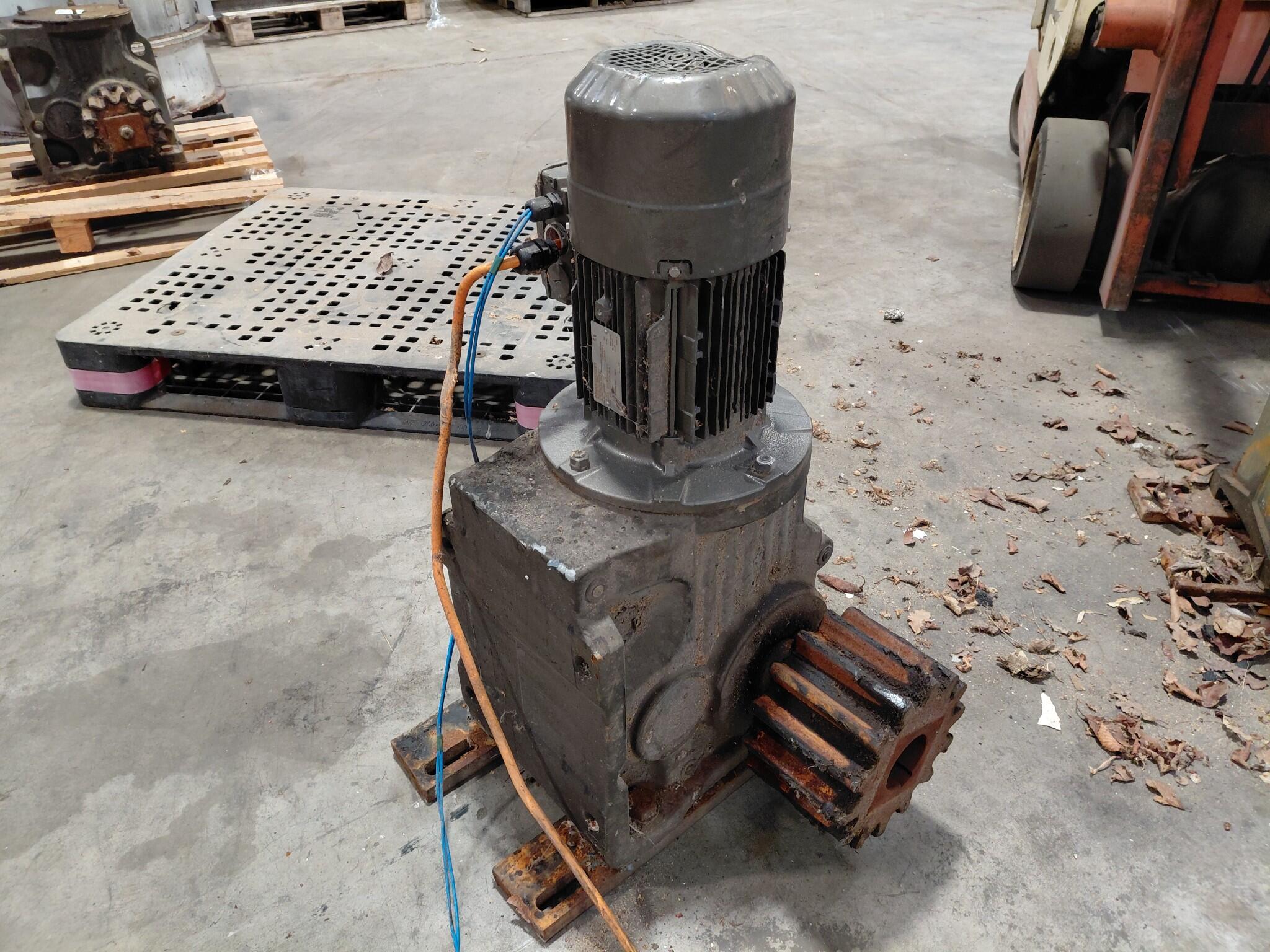

SEW-EURODRIVE electric motor with attached gearbox.

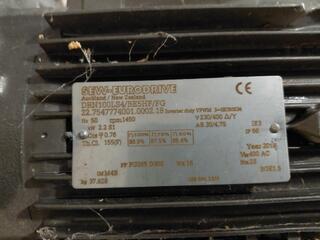

Model DRN100LS4/BE5HF/FG.
Rated power 2.2 kW S1.
Rated current 230/400 V Delta/Star.
Inverter duty VPWM 3~ IEC60034.
Frequency 50 Hz.
Rated speed 1450 rpm.
Thermal class 155(F).
Efficiency at 100 percent load 86.9 percent.
Efficiency at 75 percent load 87.5 percent.
Efficiency at 50 percent load 86.4 percent.
Protection rating IP66.
Cos phi 0.76.
IE3 classification.
Year of manufacture 2018.

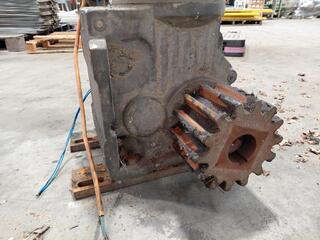

Gearbox attached with large output gear.
Mounting base with slots for fastening.
Wiring is present but cut at ends.
Total weight marked on motor plate 37.928 kg.
Gearbox and motor casing appear to be cast metal construction.
Dimensions
Length: 620mm Width: 575mm Height: 900mm
