$795
Sold Price
1/9
SKYLARC ASSET REALISATION*
Save us as a favourite seller to keep up with all our online events
AUCKLAND ENGINEERING PLANT AND MACHINERY AUCTION
Lathes, Deans, Ecoca and Colchester, Gear Head Drills, Elliott, AB Arboga Maskiner, Milling Machines, Surface Grinders, Presses, Pallet Racking, Steel Racking
and MUCH MORE
!!!Almost All $1 Start = Reserve!!!
See Sellers Other Listings!
Viewing Friday 20th 9:30am - 12:30pm
COLLECTION FOR THIS AUCTION IS STRICTLY BY APPOINTMENT ONLY
A link to our pickup booking site will be emailed with payment instructions
IF YOU CAN'T COLLECT IN THE DATES BELOW DO NOT BID!

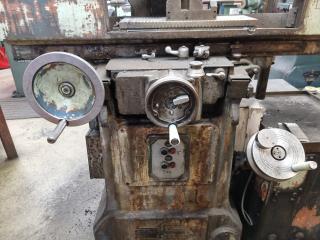

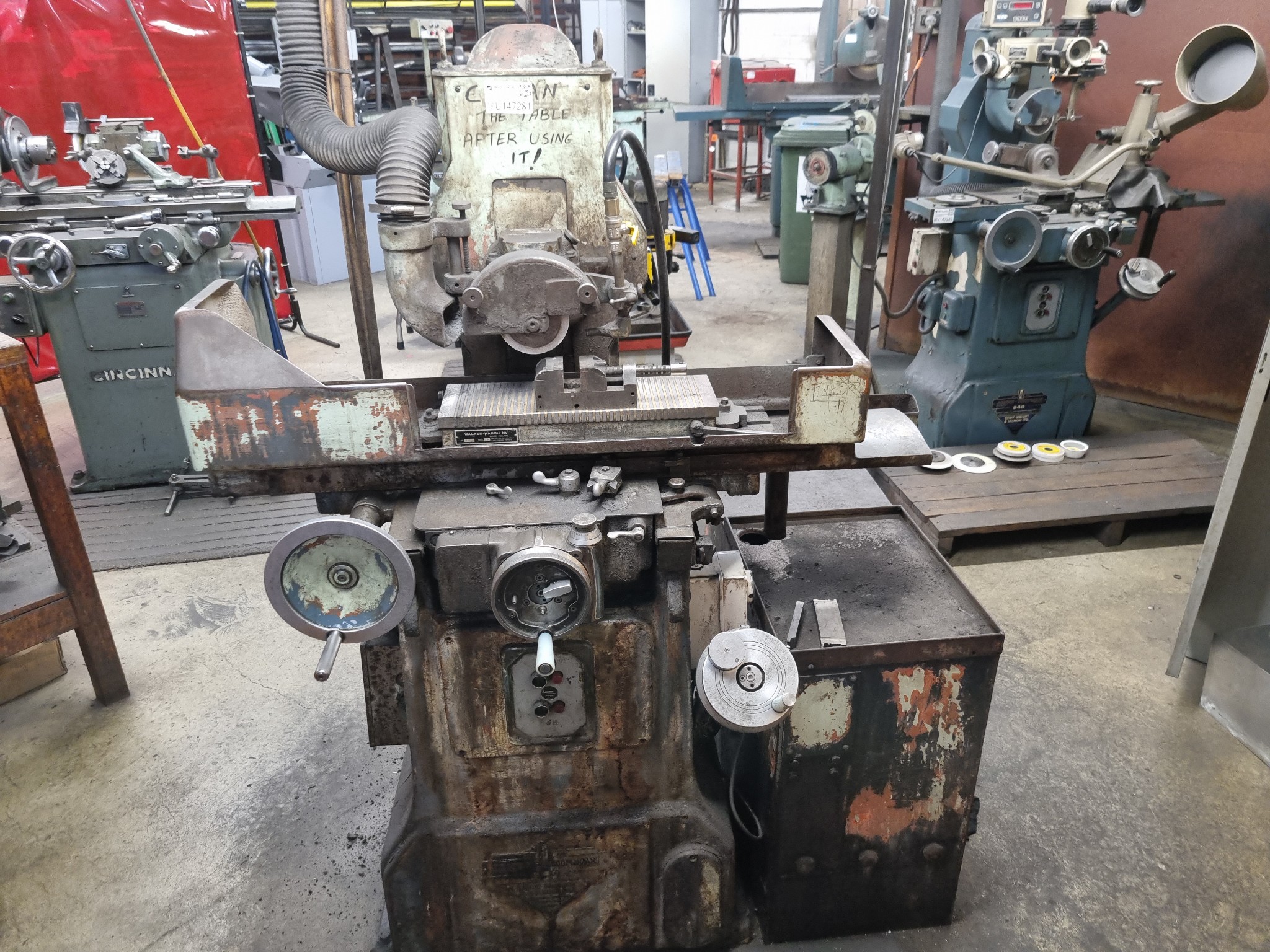

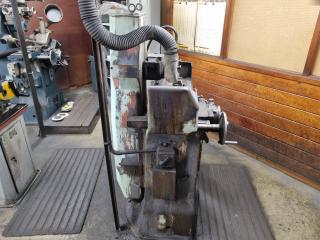

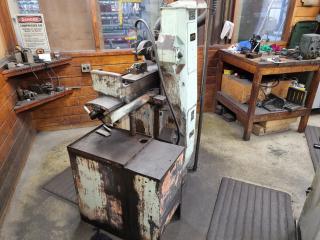

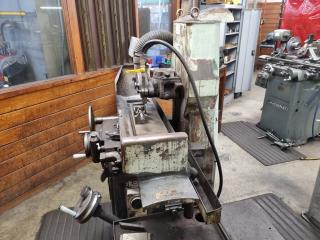

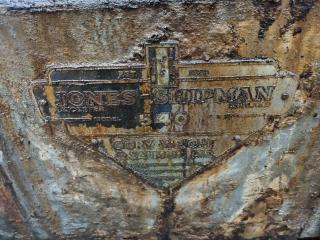

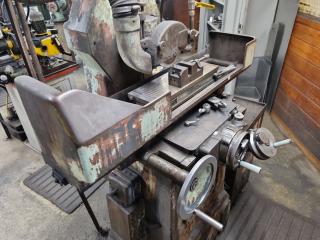

Model: Jones and Shipman Model 540 Surface Grinder

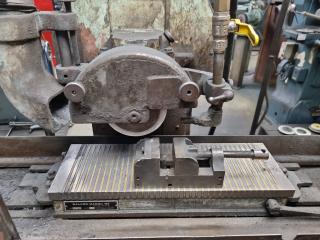

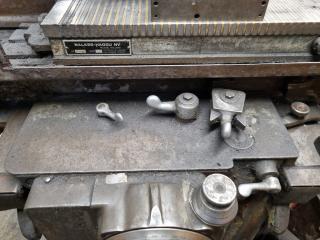

Walker-Hagou 450mm x 150mm magnetic table
Working surface of table 457mm x 152mm
Longitudinal travel (max) 479mm
Cross travel (max) 168mm
Table (not chuck) to spindle centre (max) 330mm
Table travers speed range (feet/per/min) 5 to 60
Cross feed range per stroke at each reversal .01" to .07"
Spindle speed 3000 rpm
Grinding wheel size (OD, width, ID) 180mm x 18mm x 31.75mm
To see this machine running:
https://youtu.be/iflA2HXljdU
Dimensions
Length: 1170mm Width: 950mm Height: 1740mm
