Bloor and Pillar Closing Down Auction

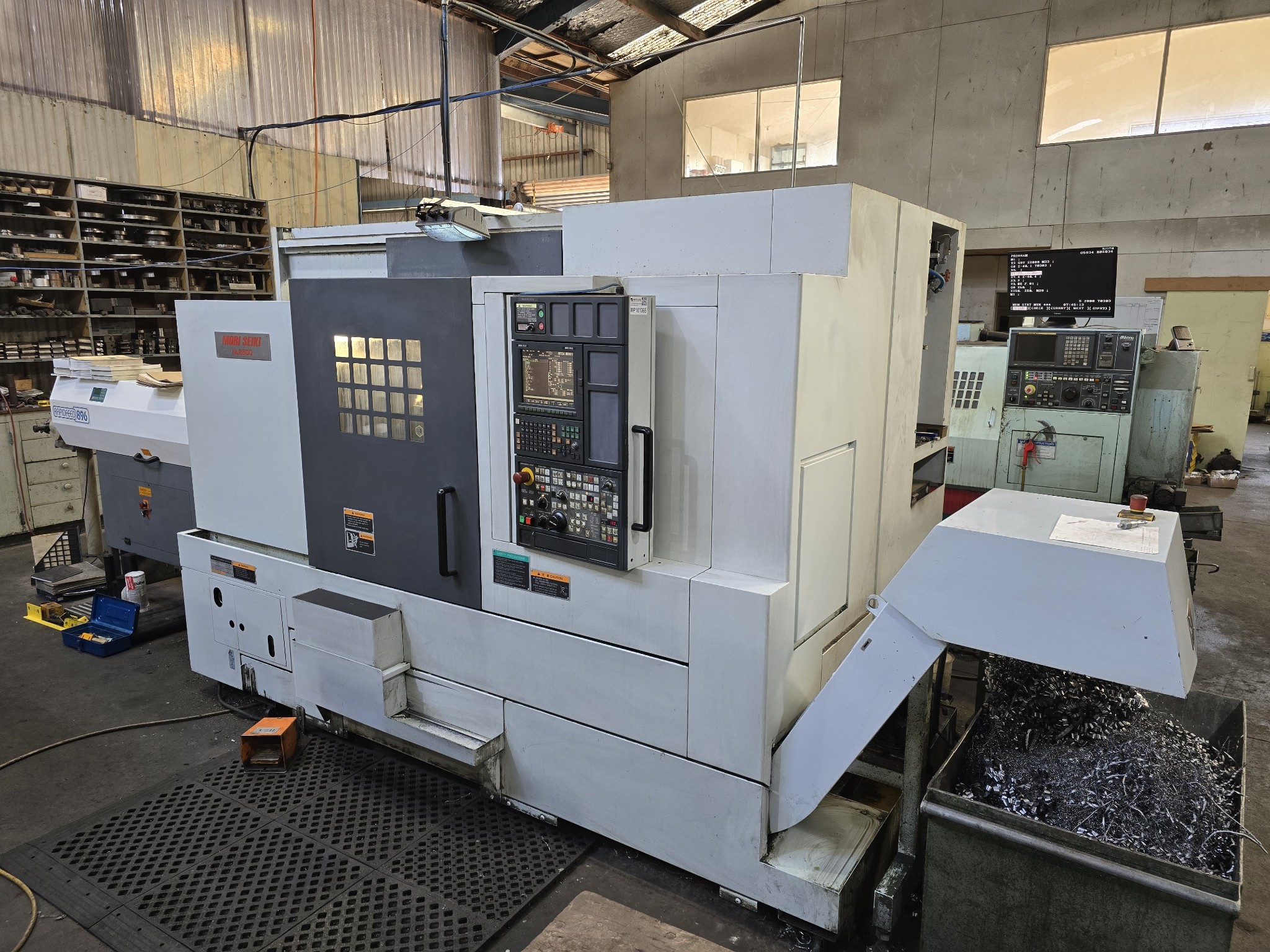

Mori Seiki CNC Lathe

Skylarc Ref P161365

Model: Mori Seiki NL2500Y/700 CNC Lathe
Swing over bed 923mm
Max turn diameter 356mm
Max turn length 705mm
Travel
X axis 260mm
Y axis +50mm -50mm
Z axis 795mm
Spindle 4000rpm
80mm bore diameter
12 tool turret
Tailstock travel 734mm
18.5kW motor
5 vert, 4 horiz live tools
MT No.5 tailstock
5 external 4 internal holders
Bartec Rapidfeed 896 barfeed (faulty)
250mm three jaw chuck
Jaws (approx 80 sets)
2006
9369 total
7959 cutting hours
Tidy machine

You will need your own lifting equipment for loading

Machine running:
https://youtu.be/JzJ3PIdiZdI

Foundry Induction Furnaces and Control Systems

Skylarc Ref K161386

Inductotherm hydraulic tilting furnaces
Tilt control panel
Inductotherm 205kVa electric control panel
Inductotherm popup furnace with lifting mechanism
Made in Australia
Units will be electrically disconnected but buyer will need to decommission everything else

Haas VF2SS Vertical Machining Center

Skylarc Ref T160537

Model: Haas VF-2SS Vertical Machining Centre
Manufactured 2007
Haas controller
Table dimensions 910mm x 355mm
Travels
X 761mm
Y 412mm
Z 502mm
Spindle to table max: 610mm min: 102mm
22kw main spindle motor
Max weight on table 680kg
24 tool carousel
BT40 spindle taper
12000rpm max spindle speed
Through spindle coolant
Exact-Machinery NOT-250R 4th axis
Tidy machine ready to go
Approx 4000kg
You will need to organise your own lifting and decommissioning for this machine

To see this machine running:
https://youtu.be/rt-8NOMH97k

Miyano CNC Lathe with Bar Feeder

Skylarc Ref A161246

Miyano BND-42T5 CNC Lathe
Turning length 190 mm
Turning dia 42 mm
Fanuc 18-T CNC controller
Faulty runs on external screen
Two jaw chuck 135mm diameter
Collet chuck (two sleeves for different sizes)
Spindle taper A2-6
Spindle bore 50.8 mm
12 tool main turret
6 position B turret
Live tools
Max spindle 5000 rpm
Spindle 7.45 kW
Bartec bar feeder
Parts catcher with exit conveyer
Wide range of collets, sleeves, tool holders
Chuck jaws
Super reliable production machine
Buyer will be responsible for decommissioning

To see this machine running:
https://youtu.be/48xmPP4JvO8

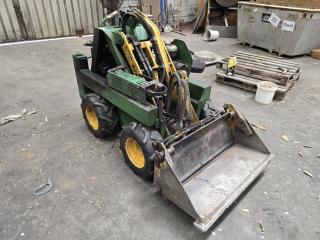

Kanga Diesel Hydraulic Loader

Skylarc Ref Z161375

Kanga 420 stand on loader
Three way bucket
Three cylinder diesel engine
4 wheel hydraulic drive
Starts and runs well but needs a 12v battery
Hydraulic leak on one bucket line

To see this machine running:
https://youtu.be/zkFx3FZn0tA

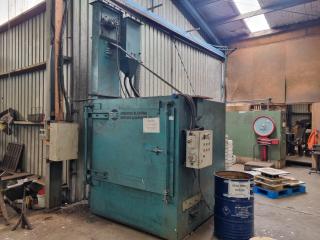

Large Industrial Shot Blasting Machine

Skylarc Ref U160954

Large Industrial Shot Blasting Machine.
Manufactured 09/2006 by Abrastive Blasting Service & Supplies, Australia.
Model No. A930330.52
Interior room approx 1650x1700x1450mm.
Rotating inner table approx 1550mm diameter.
3-phase.
Run hour clock reads 1665 hours.
Some molds for making parts
Note that electrical power will be decommissioned prior to buyer pickup but buyer will need to remove top vertical portion of main unit as well.as dissssemble the exterior hopper with tall vent chimney. The chimney will require a Crane to remove.

2007 Toyota Hilux

Skylarc Ref H161331

Model

Hilux

Year

2007

Kilometres

172275

2007 Toyota Hilux
Single cab
2.7 petrol engine
Misses at idle
5 speed manual transmission
Two wheel drive
2570mm x 1800mm drop side aluminum deck
Lapsed registration
Yellow engine light stays on
Starts runs and drives ok
Failed WOF on rust in the chassis
Hail damage type dents on bonnet

Large Mezzanine Floor Pallet Racking System

Skylarc Ref Z161479

Capital style pallet racking mezzanine floor
16 metres long x 15.5 metres wide x 5.4 metres tall
Consists of a lower shelving area with 4 rows of shelving 2 bays long with multiple levels
Upper level with stand alone shelving units
Plastic grid and MDF sheet flooring
Wooden stairs to
Buyer will need to dismantle in early February in with coordination the landlord for access

To see a video walk around:
https://youtu.be/V4e-BvuSBHk

Furnace and Control Systems

Skylarc Ref J161385

Foundry furnace
1200mm diameter
1570mm tall
430mm internal diameter x 650mm deep
Red lion control panel
Will be electrically disconnected
Buyer will need to physically decommission

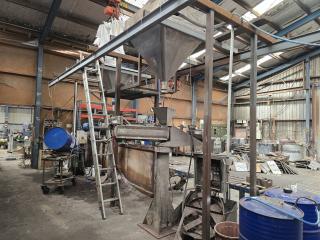

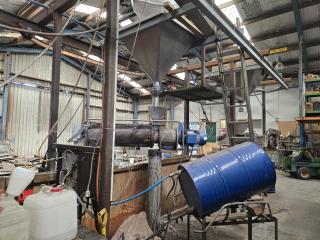

Sand Mixer

Skylarc Ref O161390

Sand mixer
Unknown make or model
3 phase 4kW motor
Control panel
Pumps and accessories
Buyer will need to decommission

Mazak Vertical Machining Center

Skylarc Ref A160544

Model: Mazak Impulse 30
Manufactured 2001
X axis travel 430mm
Y axis travel 300mm
Z axis travel 250mm
BT30 spindle taper
10000rpm spindle speed
10 tool carousel
Mazatroll CNC controller
Pallet changer
5.9kW main spindle motor
Machine powers up but has unknown faults
Suspect it's lost it's parameters
Some software and manuals
Parts or project

This machine is located behind other machines and collection will be in the second pickup week

Rock Tumbler

Skylarc Ref E161276

Rock Tumbler
Tumbler Barrel is 820mm wide and 350mm deep.

20' Water Tank Shipping Container

Skylarc Ref C161274

20' Water Tank Shipping Container.
Approx 25,000 litres
Pumps not included

Microweily CNC Lathe

Skylarc Ref D160547

Model: Microweily TY-26TR CNC (TY-2660TRCN)
Manufactured 2001
Swing over bed 660mm
Swing over cross slide 380mm
Center height 330mm
460mm bed width
3000mm bed length
105mm spindle bore
20hp main spindle motor
Z axis travel 1500mm
X axis travel 500mm
400mm four jaw chuck
300mm three jaw chuck
Fagor 8055T CNC controller
Morse taper No.5 tailstock
Fixed steady
Three phase
Some manuals
Machine powers up but won't run
Believed to have a faulty PLC
Buyer will need to decommission this machine freet

Toko Profile Measuring Projector Type MP-30A

Skylarc Ref R160795

Toko Profile Measuring Projector.
Model Type MP-30A.
Includes a number of accessories and attachments, see photos.
Powers on, fan runs and light operates, not further tested.

Honden Single Phase Lathe

Skylarc Ref Q160872

Model: Honden LC-850BM
Bed length 1200mm
Distance between centers approx 800mm
Swing over bed approx 340mm
Swing over gap approx 480mm
Swing over cross slide approx 200mm
Three phase 1 1/2hp main motor
12 spindle speeds
60rpm - 1240rpm
Metric and imperial thread cutting
2 tool parts
160mm three jaw chuck (2 jaw sets)
32mm spindle bore
No.3 MT tailstock
Assorted drill chucks
Small 4 jaw (may not fit this lathe)
Assorted centers
Some tooling
Manufactured 1982

To see this machine running:
https://youtu.be/-Ks7Gx-fcOc

Vintage Sintokogio Metal Shot Preening Anodizer Machine STB-1B

Skylarc Ref B160961

Vintage Sintokogio Metal Shot Preening Anodizer Machine.
Model No.STB-1B.
Manufactured in Japan, July 1966.
3-phase
Interior dimensions approx 780mm diameter and approx 740mm deep.
Owner states that the unit is operational.

Pehaks Automatic Metal Bandsaw

Skylarc Ref A159894

Model: Pehaka ROB-200S Bandsaw
Three phase
Max cutting width approx 350mm
Auto feed
2480mm x 465mm feed rollers

To see this machine running:
https://youtu.be/Z1t8OYlfTLs

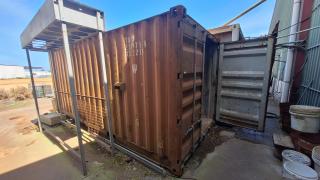

20' Shipping Container

Skylarc Ref T161291

20' Shipping Container.
Contents NOT included.
Condition - Container is in average cosmetic condition, no obvious structural damage, no holes in walls or floors, doors close and seal correctly. Container does have a lot of surface rust.

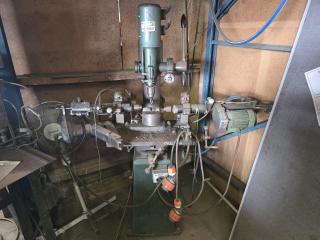

AB Arboga Maskiner Drill Mil

Skylarc Ref D159949

Model: AB Arboga Maskiner U2508 Gear Head Milling and Drilling Machine
3 phase 0.75kw motor
4 gear ranges giving 8 spindle speeds
100, 205, 345, 695, 440, 885, 1450, 2900 rpm
250mm x 560mm T slot table
Approx 110mm spindle travel
Adjustable head
MT.3 spindle taper
Fitted with 16mm chuck
20 amp plug
Top quality Swedish machine

WES Sand Reclamation Plant

Skylarc Ref F160965

Capacity of approx 2.5 tons per hour
Storage hopper
Attridder mixes and crushes sand
Fluid bed cooler classifier
Reverse pulse dust collector
Approx 6-metres max height.
Includew Instalation and operation manual.
NOTE - This unit is unassembled in various parts within the factory. Buyer will have to figure out how reassemble the components themselves.

Heavy Vintage Cast Machined Engineering Table

Skylarc Ref P160741

Heavy Vintage Cast Machined Engineering Table.
Top cast steel piece measures 1980x1070x212mm and is Machined on both top and bottom according to supplier. Approx 130mm semi hollow gap between plates with 50mm diamter support rods spaced 150mm apart on centre. Top plate approx 40mm thick, bottom plate 45mm thick.
Support frame is thick hardwood beams.
Other items see under and around table are not included.

Haas VF3 Project Vertical Machining Center

Skylarc Ref C160546

Haas VF3 vertical machining center
Manufactured 1997
1400mm x 500mm table
20 station BT40 tool carousel
X Axis Travel: 1016 mm
Y Axis Travel: 508 mm
Z Axis Travel: 635 mm
Max Table Load: 1587 kg
Spindle Motor: 11.2 kW
Spindle Speed: 8,100 rpm
Haas controller
Coolant pump
Machine powers up but has an unknown fault, suspect X axis servo
Machine weighs approx 6 ton, buyer will need to decommission for collection get

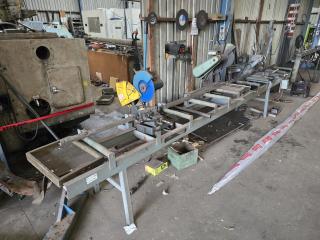

Metal Cutoff Bench with Three Saws

Skylarc Ref A160882

Long length metal cutoff bench
Three Saws
Brobo cold cut saw
2 x high speed cutoff saws (one incomplete)

Haas Fourth Axis

Skylarc Ref N161493

Haas 4th axis
Unknown model
Previously used on 1998 Haas VF3
Tailstock

Tesa Micro-hite 3D Coordinate Measuring System, Faulty Screen

Skylarc Ref W160800

Tesa Micro-hite 3D Coordinate Measuring System.
Made in Switzerland, age unknown.
Includes Renshaw branded attachments, see photos
Includes manuals.
Includes steel drawer table 865x865x740mm.
NOTE that the control screen is Faulty, see photos. Vendor is including an email printout with details of replacement costs (£395) and source. Screen will need replacing before machine can be operated.

20' Container and Contents

Skylarc Ref V161475

20' Shipping Container
Quite Rusty with small holes in roof
Closes and seals fine.
Contents on top of the container are included. These items appear to be half of a compartment and some drums.

Canning Three Phase Polisher/Buffer

Skylarc Ref B159947

Canning Model 16f2
5 hp three phase motor
Various polishing wheels on small table

To see this machine running:
https://youtu.be/pdxk4w1d-eI

20' Container and Contents

Skylarc Ref W161476

20' Shipping Container
Quite Rusty with small holes in roof and walls/floor
Closes and seals fine.
Contents include Some electronic boards, an old welding generator (Unkonwn Condition), Locker set, welding Cables and storage racks, the Contents on top of the container are included.

Diesel Fired Foundry Furnace by Morgan Major

Skylarc Ref Y160958

Diesel Fired Foundry Furnace by Morgan Major.
Model number and age unknown.
Single Phase.
Crucible interior approx 400mm diameter, 550mm deep.
Operational condition is unknown.

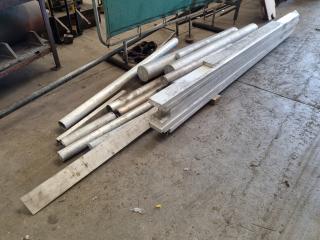

Assorted Aluminium Lengths, Cylinders

Skylarc Ref M161154

Assorted Aluminium Lengths, Cylinders.
Includes the following bar lengths:
- 8x 2400x100x30mm
- 1x 1280x82x25mm.

Includes solid cylinder sizes:
- 2x 1500mm long, 130mm dia.
- 1x 1710mm.long, 100mm dia.
- 1x 1000mm long, 75mm dia.
- 1x 995mm long, 50mm dia.
- 1x 685mm long, 60mm dia.
- 1x 940mm long, 60mm dia.
- 2x 585mm long, 75mm dia.
- 1x 375mm long, 75mm dia.

Two hollow lengths, one 35x35mm square by 665mm long snd 75mm diameter pipe 1470mm long.

Leftover factory material supply stock. Some rust and tarnishing on surfaces from storage in a rusty leaking steel container.

20' Shipping Container

Skylarc Ref D161275

20' Shipping Container.
Contents NOT included.
Condition - Container is in below average condition quite a bit of rust in walls, doors and Cieling. doors close and seal correctly. Container does have a lot of rust.
Has holes in walls for power and gas lines. Container contains a switch board and 2 light fixtures

Fine Limit Granite Engineering Table, 1825x1220mm

Skylarc Ref F160783

Fine Limit Granite Engineering Table.
Manufactured by W.B.J. Granite LTD, England.
178mm thick granite top.
Heavy Steel detached support frame.
NOTE buyer will need to contact us before pickup as some preparation, and deconstruction of a wall the item is in, will need to be done to remove from its room.

Arboga Maskiner Drill Mill

Skylarc Ref A160596

Model: Rhema Maschinenbau EM 825 Gear Head Milling and Drilling Machine
3 phase 0.6kW motor
4 gear ranges giving 8 spindle speeds
100, 150, 205, 300, 440, 640, 880, 1280 rpm
250mm x 565mm T slot table
Approx 110mm spindle travel
Adjustable height head
MT.3 spindle taper
Fitted with milling vice
Slitting blade
Mounted on pallet

To see this machine running:
https://youtu.be/c9Jy20aEW4c

Arboga Maskiner Drill Mill

Skylarc Ref Z160595

Model: Arboga Maskiner EM 825 Gear Head Milling and Drilling Machine
3 phase 0.6kW motor
4 gear ranges giving 8 spindle speeds
100, 150, 205, 300, 440, 640, 880, 1280 rpm
250mm x 565mm T slot table
Approx 110mm spindle travel
Adjustable height head
MT.3 spindle taper
Mounted on pallet

To see this machine running:
https://youtu.be/kOc-8tASLg0

Pallet Rotator

Skylarc Ref I159902

1170mm diameter
Three phase
20 amp plug
Foot operated
Forklift slots

To see this machine running:
https://youtu.be/b-7-TVY6YWc

5 x Vibrator Units

Skylarc Ref W161242

Used shaker units
Unknown condition

Heidenhain 3D Touch Probe TS-220

Skylarc Ref O160792

Heidenhain 3D Touch Probe.
Model TS-220.
BT40 type tool mount.
Unknown if item is used. Wood case exterior shows storage dust.

https://www.atechauthority.com/product-details/ts-220

20' Container

Skylarc Ref S161472

20' Shipping Container
Okay Condition, Front left door is VERY rusty , No visible signs of holes on interior.
Contents Not Included.

Okuma CNC Lathe

Skylarc Ref S160536

Okuma LC20 CNC Lathe
Swing Over Bed: 400 mm
Maximum Turning Diameter: 300 mm
Maximum Work Length: 250 mm
X Axis Travel (Upper Turret): 160 mm
X Axis Travel (Lower Turret): 110 mm
Z Axis Travel (Upper/Lower): 520 mm
Rapid Traverse Rate (X Axes): 5.08 m/min
Spindle Bore: 56 mm
Maximum Bar Capacity: 45 mm
Spindle Speeds: 65 - 3500 RPM
Spindle Motor: 22.4 kW
Turret Capacity (Upper/Lower): 8/8 station turret
250mm 3 jaw chuck
300mm 3 jaw chuck
Okuma CNC controller
Manuals

To see this machine running:
https://youtu.be/MgiYe30aClw

3-Phase Industrial Bandsaw

Skylarc Ref Z160959

3-Phase Industrial Bandsaw.
Made in Germany by Petzing & Hartmann Kassel.
Model No. SLA6.3
Uses 4400-4500mm.long, 13-25mm.wide blades (not included).
Blade wheels approx 630mm diameter.
Cutting table approx 845x755mm.
Operational condition unknown.

Large Lot of Foundry Core Boxes

Skylarc Ref Y161374

Approx 40 total
Steel and aluminum boxes
Sizes from 360mm x 280mm to 530mm x 420mm

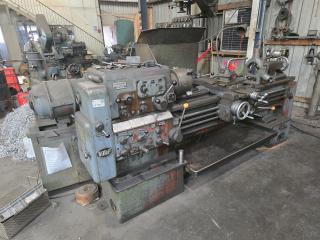

Heidenreich & Harbeck Lathe

Skylarc Ref B160571

Model: Heidenreich & Harbeck VDF 18 RD
Total bed length 1900
Distance between centers approx 1200mm
Swing over bed 400mm
11 spindle speeds
56 - 1600 rpm
54mm spindle bore
Metric and imperial thread cutting
Taper cutter
Morse taper No.4 tail stock
250mm independent four jaw chuck
Fixed steady
Some accessories
On 32amp three phase plug
Reverse currently not working

To see this machine running:
https://youtu.be/YjSIG_-LqRs

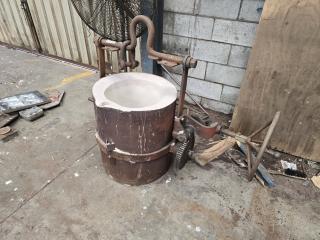

Small Furnace Crucible

Skylarc Ref I161384

Tipping mechanism
400mm x 520mm internal dimensions
570mm x 660mm tall external crucible dimensions

Jones and Shipman Tool Cutter Grinder

Skylarc Ref I160578

Jones and Shipman Model 310
8" x 16" tool cutter grinder
Internal grinding attachment
Various tailstocks
Range of wheels
Manuals
Driving dogs
Broken wheel on be end

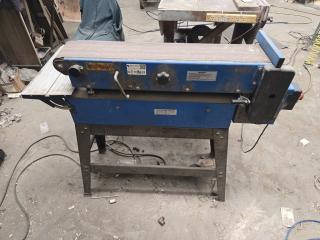

Morgan Belt Sander

Skylarc Ref D160859

Morgan Wood Sanding Machine
1100 watt motor
Single phase
150mm x 940mm sanding bed

To see this machine running:
https://youtu.be/nUvXUy45Twc

Mitutoyo Bore Gauges, 3x Units

Skylarc Ref E160782

Mitutoyo Bore Gauges.
Includes the following Code Numbers:
- 511-106s, 2.4" to 4"
- 511-105n, 1.4" to 2.5"
- 511-104a, 0.7" to 1.4"

All include wood cases.
See photos for details on included accessories, Parts, etc.

Arboga Maskiner Drill Mill

Skylarc Ref E159924

Model: AB Arboga Maskiner EM 825 Gear Head Milling and Drilling Machine
3 phase 0.9hp motor
4 gear ranges giving 8 spindle speeds
100, 250, 440, 1040, 205, 510, 885, 2080 rpm
250mm x 565mm T slot table
Approx 110mm spindle travel
Adjustable height head
MT.3 spindle taper
Fitted with 13mm chuck
Modified with 2 x desouter automatic drills
Steel plate and pneumatic systems

Steel Rack and Contents

Skylarc Ref F161485

2930mm x 1150mm x 2050mm steel rack
Contents includes
2 lengths 77mm x 3800mm stainless pipe (one bent)
5 lengths 25mm x 4900mm aluminum pipe
40mm x 20mm aluminum bar (approx 4900mm)
Assorted small diameter stainless pipe
15 x 12mm aluminum rod (approx 4900mm)
65mm x 65mm x 3400mm approx aluminum bar
7 x 25mm x 3mm x 3400mm long brass
185mm diameter x 790mm long stainless bar
2 lengths 55mm diameter stainless bar 2300mm, 3100mm
5mm stainless rod

Workbench with Vice and Fly Press

Skylarc Ref P159935

Heavy duty wooden workbench
1570mm x 725mm x 830mm tall
Record No.5 vice
R.Baverstock Panelmasta Fly Press
Assorted industrial parts and supplies

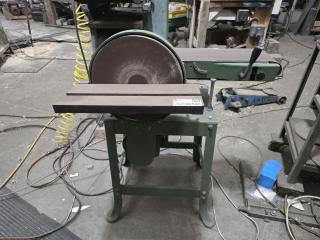

Single Phase Belt and Disc Sander

Skylarc Ref U160590

Single phase
6"x9" sanding bed
310mm sanding disc

Cammac Single Phase Drill

Skylarc Ref A159946

Cammac 12 speed bench drill press
19mm capacity
120 - 2580rpm spindle speeds
Jacobs No.14N 0-1/2" chuck
305mm table
550 watt single phase motor
80mm spindle travel
No.4 MT spindle
Belt drive

Whitehead Planer/Thicknesser

Skylarc Ref K160866

Model: Whitehead P.T.J.
Three phase
310mm wide table
Planer on top, thicknesser underneath

To see this machine running:
https://youtu.be/SjOp5J4kwxU

Heavy All Steel Workbench Table

Skylarc Ref L160919

Heavy All Steel Workbench Table.
75x75mm ox Steel legs.
Approx 18mm thick 2-ply Steel plate top surface.
Lower shelf with approx 3mm thick steel sheet surface
Top surface e has a 1265x515mm steel sheet welded oddly in the centre of the Workbench, see photos.
Rusty from outdoir storage but still a strong unit.

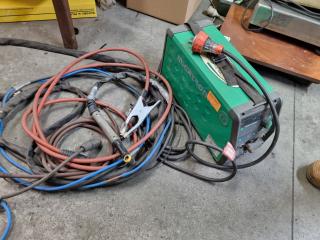

Migatronic Single Phase TIG Welder

Skylarc Ref R160925

Migatronic Single Phase TIG Welder.
Model No.Focus TIG 200 DC PFC
Includes Cabling, see photos.
Welder unit appears in Good condition, powers on but not further tested. Cables show duct tape "repairs" on parts of the cables so cables may need replacing.

Jones and Shipman Tool Cutter Grinder

Skylarc Ref J160579

Jones and Shipman Model 310 (60342)
8" x 16" tool cutter grinder
Positive indexing attachment
Various tailstocks
Range of wheels
Manuals

To see this machine running:
https://youtu.be/Qw0YI9VSX5I

Vintage Safe by Thomas Skidmore & Son, England

Skylarc Ref S161186

Vintage Safe by Thomas Skidmore & Son, England.
Age unknown.
Vintage key included for main door and mechanisims appear to be operating.
Main internal chamber is approx 460x445x475mm.
Two lockable drawers each spprox 400x210x90mm. Key for these inner drawers is missing.
Vintage safe in overall very good functioning condition.

Record No. 35 Benchtop Vice

Skylarc Ref J160969

Record No. 35 Benchtop Vice.
Made in England
135mm wide jaws.
Opens to approx 155mm.
490x190x210mm overall size.

Mitutoyo 2-Axis KA Counter 174-173F, As New

Skylarc Ref V160773

Mitutoyo 2-Axis KA Counter.
Code No. 174-173F.
Measures approx 250x80x170mm.
Includes power cord, some mounting hardware, Instalation manual, original box.
Item appears as new never installed.

Multi Tool Woodworking Station

Skylarc Ref L160867

Custom made work station
Single phase Craftsman bandsaw (no blade)
Single phase grinder (needs new plug)
Small single phase sander (215mm diameter)
Large three phase sander (460mm diameter)
Mounted on pallet
All stations run

Roller Conveyor System

Skylarc Ref M161388

Heavy duty steel conveyor
650mm wide roller sections
50mm diameter rollers
4 sections
1670mm, 1200mm, 2200mm, 2520mm
Lifting sections
2200mm section has a pneumatic lifting system

Three Phase Belt Sander/Linisher

Skylarc Ref C160572

Cast iron belt sander
350mm x 150mm sanding surface
Three phase
On wooden stand

To see this machine running:
https://youtu.be/B4co3nS6UVo

Wild Heerbrugg M5A Stereo Microscope w/ PSU Unit

Skylarc Ref O160974

Wild Heerbrugg M5A Stereo Microscope.
Made in Switzerland.
Measures approx 200mm Diameter and 445mm tall.
Note that it's non-New Zealand compliant European plugs have been removed, buyer is responsible for replacing plugs and any potential hazards associated.
Lighting has not been tested.
Also includes Wild Heerbrugg Lamp.Illuminator Power Supply unit Type No. MTR28

Dare E-90 Tool Sharpener Single Phase

Skylarc Ref Z160543

A Darex E-90 precision tool sharpener, designed for grinding and sharpening various cutting tools. Powered by a 1/4 HP motor, operating at 230V, with adjustable speed options (2800 or 3400 RPM). Includes an adjustable sharpening fixture for precise operation.

Antique Workshop Cabinet

Skylarc Ref N159907

Vintage two door cabinet
5 levels
Looks like Rimu
Great patina

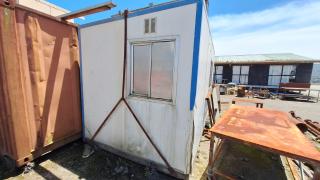

Portable Office Building

Skylarc Ref B161273

Portable Office Building
Has 2 windows and 1 door. Floor has 2 Holes in it (See Photos)
Quite a few dents and scratches and one of the corners has had the edge ripped open (See Photos)
Contents included.

Single Phase Bobbin Sander

Skylarc Ref E160600

Wadkin Bobbin Sander
Single phase
660mm x 650mm cast table
Tilting rise and fall table
Mounted on pallet
Runs but motor trips after a few seconds

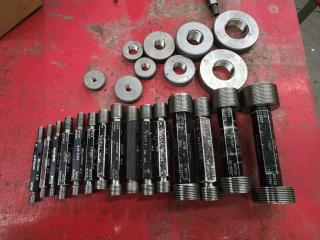

Go/No Go Gauges

Skylarc Ref I161306

16 gages
BSPF

7x Assorted Indexable Mill Drills

Skylarc Ref G161174

7x Assorted Indexable Mill Drills.
Includes:
- Iscar DCM 120-060-16A
- Iscar DCM 120-036-16A
- Iscar DCM 120-060-16A-5D
- Iscar DCM 110-055-16A-5D
- Sandvik Coromant R416.2-0140L20-31
- Sandvik Coromant R416.2-0160L20-31
- Unknown brand/type with 12.7mm diameter, 40mm deep cut.

Condition varies with each unit.

Timesavers Industrial Linisher

Skylarc Ref E161484

Timesavers 960-1MW
3 phase
Wet belt grinder/linisher
230mm wide x 700mm belt
Built in vacuum pump
20 amp plug
Some spare belts

To see this machine running:
https://youtu.be/NQOfYxuVsUY

Large Industrial Sand Blasting Cabinet by Godfrey Engineering

Skylarc Ref V160955

Large Industrial Sand Blasting Cabinet by Godfrey Engineering.
Model No. Cyclo-Blast 13702
Madei in Australia.
Blasting Cabinet interior approx 1150x850x870mm.
3-Phase.
Condition - This unit appears to be incomplete as side doors are missing and some components are piled inside. Unknown if unit has faults or is repairable.

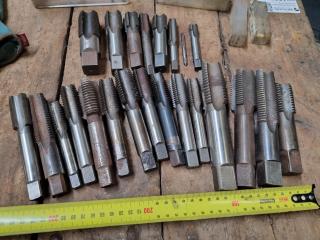

Large Assortment of Taps

Skylarc Ref Z161089

Large Lot of Taps

Panelmasta Fly Press

Skylarc Ref Z159945

Manufactured by R.Baverstock
310mm x 215mm table
Approx 90mm travel

Horstmann Thread Gauges M3-M36

Skylarc Ref Q161080

HorstmannThread Gauges M3-M36

Ensitech TIG Brush TBX-300

Skylarc Ref Q160924

Ensitech TIG Brush TBX-300.
Includes black and red connecting cables, power cord, quickstart guide, and ToolPro hardcase.
Unit turns on but not further tested. Connecting cables have corrosion on plug ends, see photos.

Small McGregor Furnace

Skylarc Ref G159900

Model: McGregor H.T.4
Max temperature 1200c
Internal dimensions 300mm x 280mm x 510mm deep
Control panel
Will be unwired for collection

Herbert 5 Head Gang Drill

Skylarc Ref C159896

Rotary station with 6 heads
8 speeds 74 - 2850rpm
All with chucks
4 x vertical drills
Each with 8 speeds 74-2850rpm
No.3 Morse Taper
All gear head drills
Rise and fall T Slot table
1850mm x 500mm T Slot table
Automatic feeds
3 phase 9hp motors
Coolant pump
Record vice

To see this machine running:
https://youtu.be/4xw13q6toW0

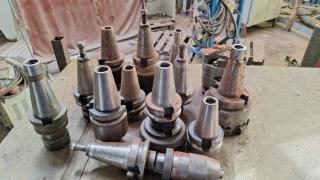

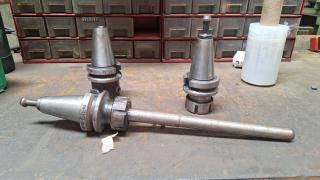

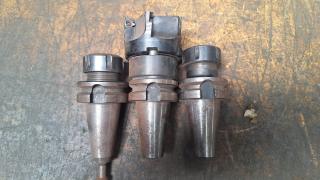

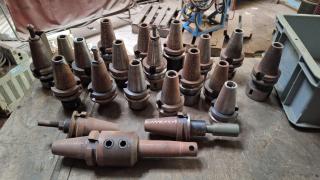

6x BT40 Type ER Collet Chuck Drill Tool Holders

Skylarc Ref X160723

6x BT40 Type ER Collet Chuck Drill Tool Holders.
Includes:
- 1x Sandvik Coromant ER40 holder Type 392.5515-40 25 080.
- 3x Unknown brand with ID markings of 40 ER32x100 E.
- 1x illegible markings unit with ER32 Chuck and approx 60mm length.
- 1x illegible markings unit with ER24 Chuck and approx 60mm length.

Condition varies greatly with each unit.

Metric Go/No Go Gauges

Skylarc Ref R161497

Approx 40 gauges
Metric
Wooden tray not includedrt

4x BT40 Type Tool Holders w/ Milling Cutters

Skylarc Ref R160717

4x BT40 Type Tool Holders w/ Milling Cutters.
Includes:
- Kojex type BT40-FMC22-105 with Speedmax Walter branded Cutter type ISSF 100-10-MP,.
- Kennamwtal holder, type ID illegible, measures approx 100mm long, 50mm diameter and has Sandvik Coromant Cutter R390-063022-17M
- Unknown brand holder type No. 40 SM22x60 E with unknown brand Cutter type No. PACM2050HR.
- Unknown brand holder type No. BT40 SEM 22x60 E with Sandvik Coromant clutter type No. R390-050Q22-17H

6x BT40 Type ER32 Collet Chuck Drill Tool Holders by Kojex

Skylarc Ref Z160725

6x BT40 Type ER32 Collet Chuck Drill Tool Holders.
All are Kojex type BT40-ER32-60
Condition varies with each unit.

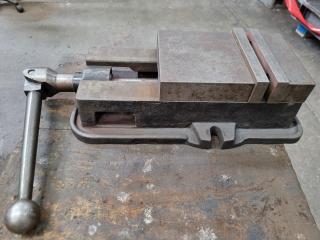

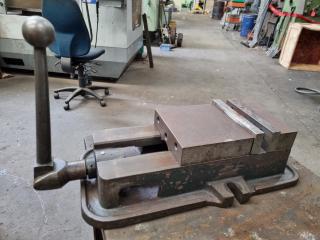

CNC Machine Vice

Skylarc Ref F160731

CNC Machine Vice.
Unknown manufacturer.
160mm Jaw width.
Opens to approx 145mm.
410mm Vice length.
Side mounting bolt slots spaced approx 180mm appart on centre.
Includes crank handle attachment.
Shipping is not available due to it being over max weight limit of our courier.

Lincoln TIG/ARC Welder on Trolley

Skylarc Ref W160878

Lincoln Electric Invertec V250-S
TIG/ARC Welder
Single phase
TIG gun
ARC electrode
250 amp max welding output
On trolley

Drawer Set with Tooling

Skylarc Ref Y161088

Drawer set with Tooling, includes Saw Blades, Dies, Drill Bits, Lathe Tooling.
See photos for more details

6x Decommisioned Electric Gantry Trolley Hoists

Skylarc Ref O161156

6x Decommisioned Electric Gantry Trolley Hoists.
Elephant 2x 2-ton and 1x 1-ton units, Demag 2.5-ton, Nitchi 1-ton, and Kito 1-ton.
All are decommisioned well used units needing extensive repairs or scrap use.
Specific faults on each are unknown.

Mitutoyo 1400mm Linear Scale 539-291, As New

Skylarc Ref T160771

Mitutoyo 1400mm Linear Scale.
Code No.539-291, AT115-1400
1600mm total unit length.
Includes original paperwork and box.
Item is as new as still wrapped in plastic.

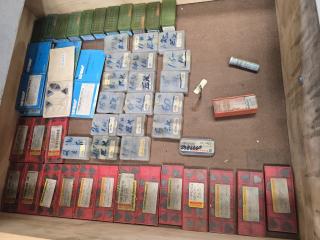

Large Lot of Tool Tips

Skylarc Ref K161230

Boxes of lathe tool tips

Test Rite Drill Press

Skylarc Ref H159927

Test Rite Model 00021U
5 speed drill press
Belt drive
200mm x 200mm table
900 - 3200 rpm
1/3 HP motor
Single phase

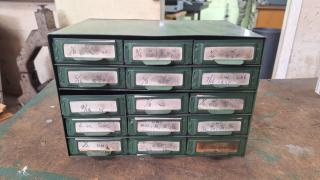

Large Assortment of Drilling Taps

Skylarc Ref C161092

Large Assortment of Taps

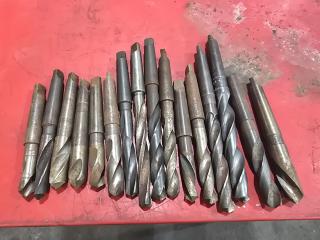

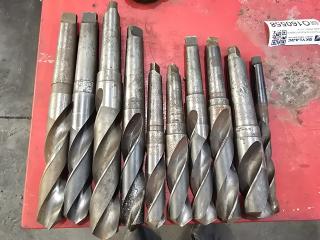

19 Morse Taper Drill Bits

Skylarc Ref U160564

Largest size 15/16"
Smallest 9/16"
Mainly imperial sizes

Large Lot of End Mills

Skylarc Ref F161329

Approx 100 total

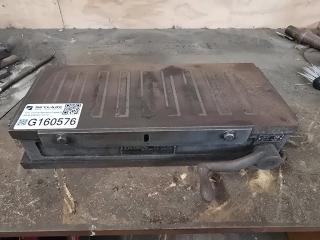

Eclipse Magnetic Chuck

Skylarc Ref G160576

Eclipse Non-Electric Magnetic Chuck
355mm x 150mm surface
Some surface corrosion but works fine

Cairo Punch and Shear

Skylarc Ref F159899

Cairo flywheel iron worker
Model MF-16
Three phase
Punch, shear, notching
32 amp plug

Tanner Single Phase Bandsaw

Skylarc Ref T160589

Tanner single phase bandsaw
Max cutting width approx 175mm
340mm throat
355mm x 355mm tilting table
3/4hp motor

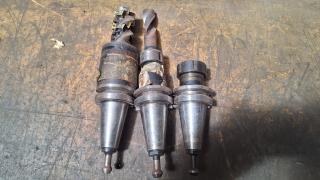

4x BT40 Type Straight Shank Drill / Tool Holders

Skylarc Ref S160718

4x BT40 Type Straight Shank Drill / Tool Holders.
Includes:
- AW branded holder type No.BT40-SLA42-105
- Unknown brand holder type No. 40 EM25x105 E
- Sandvik Coromant branded holder 392.5220-40 20 090
- Illegible markings holder with approx 105mm length and 32mm inner hole diameter.

Condition varies with each unit

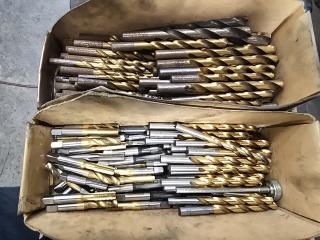

Large Lot of Drill Bits and Taps

Skylarc Ref M161336

Mainly metric sizes
Largest drill 21.1mm
Metric taps mainly 10mm x 1.5mm
Surface rust on some drills

Industrial Shaker Bin

Skylarc Ref T160953

Industrial Shaker Bin.
Unknown brand/model.
Thick hard rubber Bin approx 960mm diameter, 310mm deep.
500V, 10A 3-phase plug
Note that base is missing a suport spring.

Mitutoyo Micrometers, 6x Assorted Sizes

Skylarc Ref A160778

Mitutoyo Micrometers.
Includes the following Code numbers:
- 101-103, 0-25mm (2x units).
- 101-104, 25-50mm
- 102-217, 0-25mm
- 103-137, 0-25mm
- 103-138, 25-50mm

CNC Machine Vice

Skylarc Ref E160730

CNC Machine Vice.
Auto Well branded.
160mm Jaw width.
Opens to approx 145mm.
410mm Vice length.
Side mounting bolt slots spaced approx 180mm appart on centre.
Includes crank handle attachment.
Shipping is not available due to it being over max weight limit of our courier.

Mitutoyo Digital Height Gauge 192-613

Skylarc Ref S160796

Mitutoyo Digital Height Gauge model 192-613.
475mm device Height.
300mm max measuring Height.

6x BT40 Type ER Collet Chuck Drill Tool Holders

Skylarc Ref Y160724

6x BT40 Type ER Collet Chuck Drill Tool Holders.
2x units are Kennametal type BT40-ER32070M, the remaining 4x units have illegible markings but are of the same dimensions and Collet size as the known Kennametal units.
Condition varies with each unit.

Single Phase Belt and Disc Sander

Skylarc Ref J160865

Model: BDS-9
Single phase
3/4 hp motor
6"x9" sanding bed
220mm sanding disc

To see this machine running:
https://youtu.be/2S1NmGNE6Qc

Workbench with Two Vices

Skylarc Ref X159943

Heavy Duty Wooden Workbench
Two vices with rotary bases
6" and 6"1/2"
850mm work top height
Assorted tools and industrial supplies
Fly Press and Drill Press are NOT included

6x Assorted BT40 Tool Holders

Skylarc Ref Q160716

6x Assorted BT40 Tool Holders.
Includes:
- Nikken type No. BT40-SCA27-75
- Kojex type No. BT40-ER32-60
- Graflex type No. FM4041 101 1490 with unknown brand boring attachment type No. A780 20, 30-40 1.180-1.575
- Illegible ID markings holder with large 140mm long, 48mm diameter boring bar attachment, also unknown brand/ID number.
- Unknown own brand/ type BT40 Holder with 60mm diameter attachment mount.

Condition varies wirh each unit.

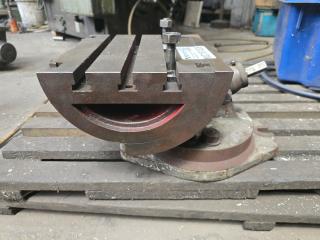

Milling Machine Adjustable T Slot Table

Skylarc Ref C161326

250mm x 225mm table surface
Approx 24mm T slots
Adjustable angle
Rotary base

5x Assorted Indexable Mill Drills

Skylarc Ref H161175

5x Assorted Indexable Mill Drills.
Includes:
- Iscar DZ030-090-32-05, 31mm diameter cut, 90mm depth.
- Unknown brand NPD 250-32-3, 25mm cut diameter, 80mm cut depth.
- Unknown brand/type 30mm diameter, 90mm deep cut.
- Unknown brand/type 25mm diameter, 80mm depth cut.
- Unknown brand/type 22mm diameter, 75mm deep cut.

Condition varies with each unit.

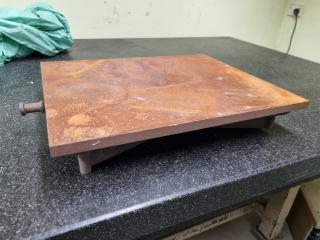

Vintage Skoda Benchtop Precision Engineers Table, 500x400mm

Skylarc Ref H160785

Benchtop Precision Engineers Table.
No manufacturer plate attached though a vintage Skoda symbol is forged onto the underside, see photos.
No top cover included, top surface is rusty.

Large Bandsaw

Skylarc Ref M160868

Cast iron frame
Three phase
370mm max cut thickness
870mm throat
4kW motor
Tilting table 750mm x 960mm

Hydraulic Power Pack

Skylarc Ref F161069

Hydraulic Power Pack, Unkown Specifications. Manufactured by NACHI
Model No.UVD-1A-A3-1.5-4-1410

Large Lot of Drill Bits

Skylarc Ref G161330

Morse taper drills (some have modified tips)
Largest size 31mm
Wide range of HSS drills

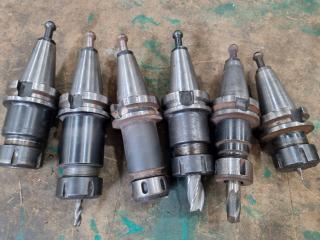

6x BT40 Type ER Collet Chuck Tool Holders

Skylarc Ref C160728

6x BT40 Type ER Collet Chuck Tool Holders.
Includes:
- Unknown brand, type 40 ER32x100
- Illegible markings, BT40 ER32x120mm size (hand measured(.
- illegible markings, BT40 ER24x120mm size (hand measured).
- Unknown brand, type 40 ER32x100 E.
- Kennametal brand, type number illegible, hand measured as ER24x100.
- Kennametal brand, type number illegible, hand measured as ER32x70

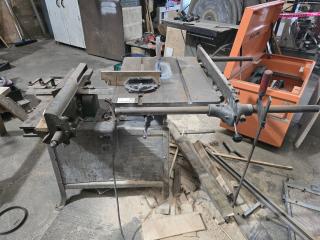

Tauco Combination Table Saw and Planer

Skylarc Ref W160592

Tauco Combination Table Saw and Planer
Three phase
685mm x 505mm tilting saw table
165mm wide planer table
Made in the USA

2x 3-Point Internal Micrometers

Skylarc Ref L160763

2x 3-Point Internal Micrometers.
Includes:
- Bowers 37-51mm Micrometer w/ 43.998mm ring.
- Fowler - Bowers 5/8" to 3/4" Micrometer, steel ring unit is missing.

One case has detached cover.

Mitutoyo Interchangable Anvil 150-300mm Micrometer 104-136

Skylarc Ref S160770

Mitutoyo Interchangable Anvil 150-300mm Outside Micrometer.
Code No.104-136
See photos for included accesories.
Wood case shows some exterior damage.

Mitutoyo Depth Micrometers, 2x Units

Skylarc Ref N160765

Mitutoyo Depth Micrometers
Includes:
- 129-112, 0-150mm
- 129-109, 0-50mm

Some accessories may be missing, see photos.
Case is damaged for smaller unit.

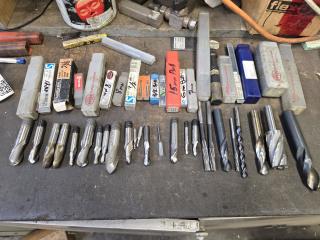

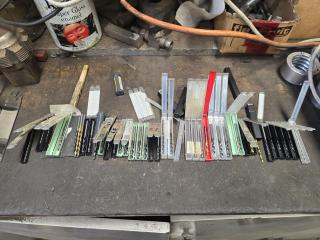

Large Lot of Machine Tooling

Skylarc Ref V161241

Machine tooling new and used
Mostly packaged

Assorted Tooling

Skylarc Ref V159915

Approx 70 assorted machine tools
End mills
Bull nose cutters
Assorted others
Metric and imperial

Elliot 6" Universal Driving Head Lathe Chuck Assembly

Skylarc Ref E160704

Elliot 6" Universal Driving Head Lathe Chuck Assembly.
160mm diameter chuck face.
Mounting bolt hole slots spaced approx 200mm apart on centre.
Includes Chuck key.
Operational condition is unknown.

12x Mitutoyo Micrometer Setting Standards, 25mm to 300mm

Skylarc Ref W160982

12x Mitutoyo Micrometer Setting Standards.
Includes the following Mitutoyo part numbers / lengths:
- 167-101, 25mm
- 167-102, 50mm
- 167-103, 75mm
- 167-104, 100mm
- 167-105, 125mm
- 167-106, 150mm
- 167-107, 175mm
- 167-108, 200mm
- 167-109, 225mm
- 167-110, 250mm
- 167-111, 275mm
- 167-112, 300mm

All appear either unused or very lightly used.

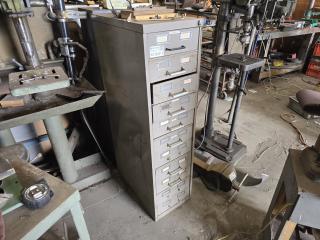

Cabinet of Drill Bits

Skylarc Ref X159917

11 drawer cabinet
Huge volume of assorted drill bits

Vintage 3-Phase Bandsaw

Skylarc Ref W160956

Vintage 3-Phase Bandsaw.
Made in USA by Gibb & Miller Ltd.
Model No. NS105
Age of Saw unknown.
Blade wheel diameters 455mm.
Hand written note inside blade wheel door states blade length of 3.45 metres. Installed blade has width of 12mm.
Cutting table approx 605x605mm.

3x 250mm Engineers Bubbe Levels

Skylarc Ref P160793

3x 250mm Engineers Bubbe Levels.
Two are Kinex branded
Third unit is unknown brand.
All have wooden cases.

T-Slot Block Stand

Skylarc Ref O159908

T slot drill block
25mm slots
Cast

Jasic Super Inverter Welder XM200 Pro

Skylarc Ref V160929

Jasic Super Inverter Welder.
Model No. XM200 Pro
Single Phase.
Includes Welder Trolley and attached cables.

Box of New Foundry Thermocouples

Skylarc Ref R161315

Shijiazhuang Brand
100 pieces

Lot of Machine Tool Tips

Skylarc Ref U161318

10 partial boxes
Most look new

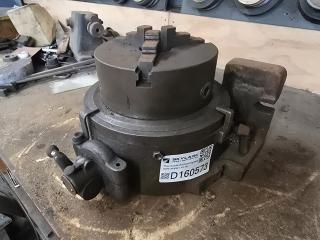

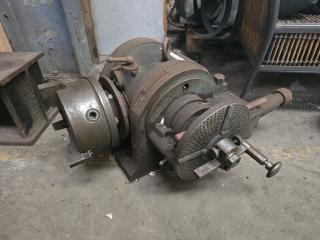

Large Indexing Head

Skylarc Ref J161489

150mm diameter three jaw chuck
Turns freely

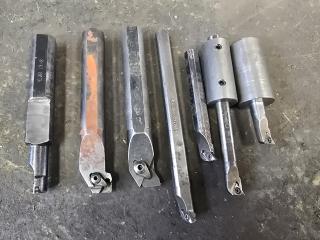

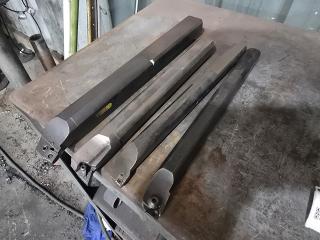

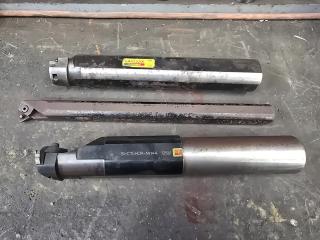

7x Lathe Boring Bars, Assorted Sizes

Skylarc Ref M161180

7x Lathe Boring Bars.
Includes the following brands/types:
- Iscar GHIR 25-25-4, 200mm length
- Unknown brand S25S-SDQCR11, 185mm length
- Ceradex S25X-SVUBR16-34E, 220mm length
- Unknown brand A25R MWLNL-06W, 200mm length
- Iscar S20R SDUCR-11, 200mm length
- Iscar SDUCR-BS-20?? (remaining number is cut off), 145mm length
- Unknown brand CHIR 20-20-4, 125mm length.

Condition varies with each Tool.

Meteor Multi Head Gang Drill

Skylarc Ref I159928

Meteor 4 head drill
Single phase
4 separate pedestal drill units
No.2 morse taper spindles
Approx 100mm spindle travel
4 speeds
Belt drive
265mm x 255mm cast tables
Various chucks etc

To see this machine running:
https://youtu.be/ydMtY1XxoaI

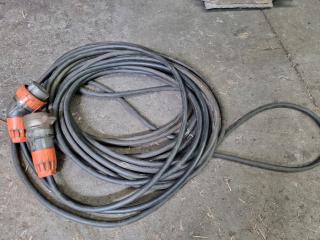

3-Phase 32A Power Extension Cable Lead, 15-Metres

Skylarc Ref X161165

3-Phase 32A Power Extension Cable Lead.
15-Metres length.
Female plug is missing cover cap.

3-Phase Double Ended Tool Grinder

Skylarc Ref R161159

3-Phase Double Ended Grinder by Samand.
Made in England, age unknown.
200mm Diameter grinding wheels.
Condition- Has been stored in a very leaky container for many years. Top and bottom basins were full of water when we removed it. Unable to turn grinding Disks by hand, likely rusty motor inner parts from rain leaking on it. Likely scrap value only.

Mitutoyo Digital Height Gauge 192-607

Skylarc Ref V160799

Mitutoyo Digital Height Gauge.
Model 192-607.
610mm max measuring height.
800mm device height.

300mm Height Gauge

Skylarc Ref R160769

300mm Height Gauge.
Unknown manufacturer and model.
Includes wood case.

3x BT40 Tool Holders w/ Indexable Mill Cutters

Skylarc Ref O160714

3x BT40 Tool Holders w/ Indexable Mill Cutters.
Includes:
- AW holder type No. BT40 FMB27-150 with Kennametal Cutter type 80A06RK.
- Unknown brand/type BT40 Holder with 220mm long, 45mm diameter attachment that has an unknown brand/model 50mm diamter Cutter attached.
- Unknown brand/type BT40 Cutter with 110mm long, 40mm diameter shank with a Kennametal type MS-1184, 50A04RS90TP16D indexable Cutter.

Condition varies with each unit

Two Pallets of Foundry Supplies

Skylarc Ref J161333

Sleeve risers
Filters ceramic foam
Assorted styles

Vintage Wooden Industrial Cabinet

Skylarc Ref O161494

Industrial cabinet
Contents of steel fittings
Door broken one corner

3 Phase Rock Tumbler

Skylarc Ref I161280

3 phase Rock Tumbler
Tumbler Barrel is 950mm long and 450mm wide. Also comes with tumbling stones pictured below.

CNC Machine Vice

Skylarc Ref K160736

CNC Machine Vice.
Unknown manufacturer.
140mm wide jaws.
Opens to approx 105mm
Mounting bolt slots spaced approx 350mm and150mm appart on centre.
Crank handle is missing

7 x Lathe Boring Bars

Skylarc Ref E161354

Assorted boring bars

Quick Knurling Tool

Skylarc Ref L161335

Quick-STR 0
3/4" shank
Assorted new and used wheels
Manual

4 Large Morse Taper Drill Bits

Skylarc Ref J160553

1 13/16"
45mm
50mm
2 1/8"

Handheld Furnace Temperature Indicator

Skylarc Ref H161383

WLX brand
Model: PE94
Manufactured 2019
Includes manual
Charger
Large number of probe covers
Box

23x Assorted Thread Taps

Skylarc Ref C161170

23x Assorted Thread Taps.
Sizes from 6mm to 1 ½" diameters.
Condition varies with each unit.

7 x Annular Cutters

Skylarc Ref N160583

Smallest size 13mm
Largest size 50mm

Mitutoyo Linear Scale 539-275

Skylarc Ref U160772

Mitutoyo Linear Scale.
Code No. 539-275, AT115-300
480mm item length.
Includes original box.
Item appears as new never installed.

CNC Machine Vice

Skylarc Ref G160732

CNC Machine Vice.
Unknown manufacturer.
160mm Jaw width.
Opens to approx 145mm.
410mm Vice length.
Side mounting bolt slots spaced approx 180mm appart on centre.
Includes crank handle attachment.
Shipping is not available due to it being over max weight limit of our courier.

Large Lot of Tool Tips

Skylarc Ref E161224

Boxes of lathe tool tips

Sand Dryer and Sifter

Skylarc Ref G161382

Rotary sand sifting machine
LPG powered heater
Vibrator
3 phase 1.1kW electric motor

To see this machine running:
https://youtu.be/7A43TIXj0yY

6x BT40 Type ER Collet Chuck Tool Holders

Skylarc Ref B160727

6x BT40 Type ER Collet Chuck Tool Holders.

- Kojex type BT40 ER32-60
- 2x of same design, illegible ID marks hand measured to ER32x60
- Sandvik Coromant brand, type marking illegible, hand measured to ER40x60
- 2x unknown brand, both marked as type 40 ER40x80 E

Welding Bench with Vice

Skylarc Ref V160877

860mm x 1200mm x 870mm tall steel table
5mm plate steel top
Toolshed 150mm vice

8 x BT30 Tool Holders and Holding Rack

Skylarc Ref I161020

8 x BT30 Tool Holders and Holding Rack

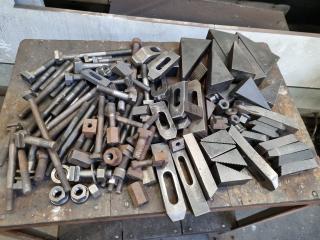

Assorted CNC Lockdown Parts & Components

Skylarc Ref D160703

Assorted CNC Lockdown Parts & Components.
Triangle blocks up to 140x85x40mm size.
Threaded rod diameters of 12mm and 15mm.
Assorted other related components, see photos.
Condition varies with each item.

6x Assorted Lathe Boring Bars, 16mm diameter size

Skylarc Ref N161181

6x Assorted Lathe Boring Bars.
All are 16mm diameter size.
Includes the following:
- 3x Iscar S16Q SDUCR-07, 180mm lengths
- 2x Iscar GEHIR 16-16-2, 160mm lengths
- 1x Unknown brand, type R166.4KF-16F16, 130mm length.

Condition varies with each tool.

Foundry Sand Mixer

Skylarc Ref N161389

Unknown make and model
Three phase
Control panel
Hopper
Buyer will need to decommission

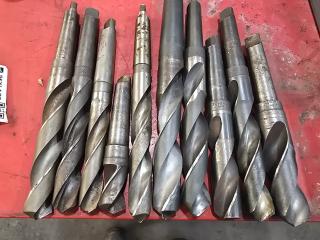

10 Morse Taper Drill Bits

Skylarc Ref R160561

Largest size 32mm
Smallest 15/16"
Metric and imperial sizes

Large Lot of Machine Tooling

Skylarc Ref T161239

Machine tooling new and used
Mostly packaged

IK-12 BEETLE

Skylarc Ref D161067

IK-12 BEETLE
Unknown if complete, item has not been tested so unsure if works.

2 x Diff Covers

Skylarc Ref F161225

2 x Diff Covers
Each are 550mm long and 280mm wide
Unknown what these are for.

3 Very Large Morse Taper Drill Bits

Skylarc Ref I160552

54mm
65mm
70mm

Somta 74mm Diameter Drill Bit w/ No.5 Tapered Shank

Skylarc Ref H160967

Somta 74mm Diameter Drill Bit.
No.5 Tapered mounting Shank
260mm cutting depth.
435mm total length.

Darex Drill Sharpener Single Phase

Skylarc Ref T161395

A Darex Drill Sharpener Single Phase

10 Lathe Turning Tools

Skylarc Ref A160570

25mm shank lathe tools

Vintage Tanner Single Phase Drill Press w/ Trolley

Skylarc Ref Z160985

Vintage Tanner Single Phase Drill Press.
Unknown model number.
Drill Press approx 950mm tall.
Drill bed approx 340x255mm.
13mm Keyed Chuck, key is missing.
Includes 760mm tall Trolley Cart the drill is on.

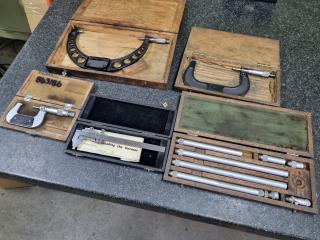

5x Assorted Vintage Micrometers & Calipers

Skylarc Ref K160762

5x Assorted Vintage Micrometers & Calipers.
Includes:
- CEJ Sweden Outside Micrometer 109E, 7" to 8"
- Shardlow England Outside Micrometer 54CX, 4" to 5".
- NSK Japan Inside Micrometer set No. 704-304, 1000mm.
- Chesterman, England 7" Vernier Calipers.
- Asian branded 25-50mm Outside Micrometer.

Condition varies with each item.

4 Large Lathe Boring Bars

Skylarc Ref X160567

Sandvik Maxp S40V-PSKNR 12
Unknown brand 30mm shank
S25T-SCLR 09
HR136-17-0025

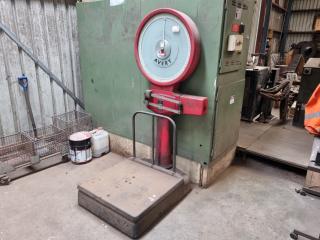

Avery Industrial 110kg Dial Scale

Skylarc Ref R160743

Avery Industrial 110kg Dial Scale.
Type No. 3205 CLE
Dial states 110kg max capacity, ID label states 170kg capacity, see photos.
Weighing platform 780x700mm and 230mm above floor.
Operates and appears accurate (last checkup stated I weighed 89kg as this scale indicates, see photo.)
Dirty surfaces from industrial factory, would benefit from a cleanup.

CNC Machine Vice

Skylarc Ref I160734

CNC Machine Vice.
Unknown manufacturer.
150mm wide jaws.
Opens to approx 110mm.
Swivel base with mounting bolt slots spaced approx 200mm appart on centre.
Total length approx 440mm.
Crank handle is missing

4x Jacobs Chuck Keyed Drill Chucks w/ Morse Taper Shanks

Skylarc Ref I160708

4x Jacobs Chuck Keyed Drill Chucks w/ Morse Taper Shanks.
All are Jacobs Chuck USA brand.
2x are Model 6A, 1/2" (13mm) with Morse Taper No. 2 shanks
2x are Model No. 14, 1/2" (13mm), one with Morse Taper No. 2 and one with No. 3 shank.
All include Chuck keys.
All operate smoothly but not tested under load.

Tool Cutter Grinder Drill Relief Attachment

Skylarc Ref F160575

The Alston Tool & Gauge Company
Single phase
Variety of collets
Change gears

Brass Sleeves

Skylarc Ref A161064

Brass Sleeves in 2 wooden boxes, thicknesses and lengths vary, see photos for more details

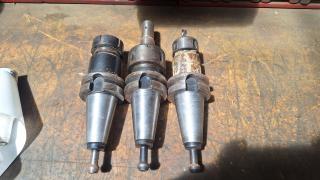

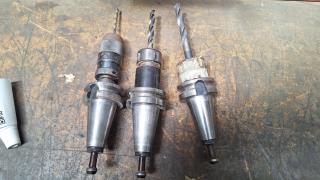

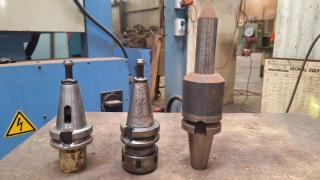

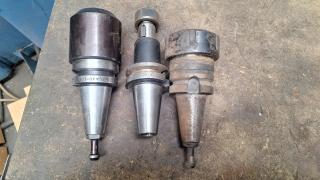

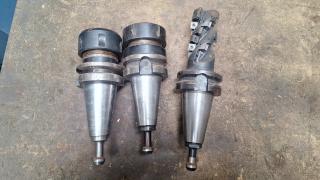

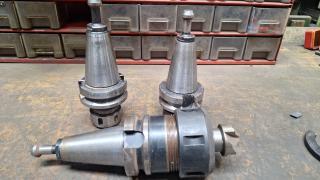

3 x BT40 Tool Holders

Skylarc Ref F161043

3 x BT40 Tool Holders

2, 3, 4 Morse Taper Drill Bits

Skylarc Ref S161082

2 3 4 Morse Taper Size Drill Bits

Pallet Racking and Contents

Skylarc Ref L161387

Single bay of racking
Contents include various timber Aluminum stands
Fan
Buyer to dismantle

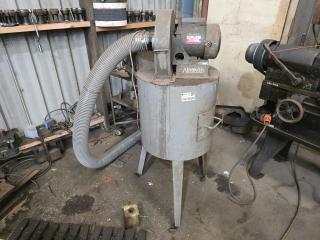

Alaskon Extractor

Skylarc Ref G160550

Unknown application
Single phase
With some hose

Large Vice with Swivel Base

Skylarc Ref X161269

Jaws open out to 200mm with a width of 150mm
Strike pad is 130mm x 130mm.
Mounting bolts are 13mm and are 220mm apart

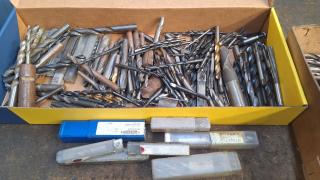

Large Assortment of Drill Bits

Skylarc Ref D161093

Large Assortment of Drill Bits

6x BT40 Type ER Collet Chuck Drill Tool Holders

Skylarc Ref W160722

6x BT40 Type ER Collet Chuck Drill Tool Holders.
Includes:
- Kennametal type BT40 ER32070M
- 2x Sandvik Coromant units both with illegible type markings, one appears to be an ER40 Chuck with approx 80mm length and the second is possibly an ER50 with approx 90mm length.
- 1x Laip brand type 0412060208, appears to be a ER50 size with approx 90mm length.
- 2x remaining units have no legible ID markings, one is an ER32 and the second an ER40.

Condition varies with each unit.

3 x BT40 Tool Holders

Skylarc Ref M161024

3 x BT40 Tool Holders

30-Drawer Wooden Drawer Cabinet

Skylarc Ref B161169

30-Drawer Wooden Drawer Cabinet.
Wood frame with 29mm thick older type MDF board top.
Top surface is 535mm wide.
Wood drawers with heavy steel handles.
Drawers sit on wood runners, see photos.
Each Drawer interior measures approx 440x430x110mm.
Well built sturdy and very large unit.
Items seen on and around cabinet are NOT included.

15 Morse Taper Drill Bits

Skylarc Ref W160566

Largest size 26.5mm
Smallest 12.25mm (measured)

Precision Engineers Glass Surface Block, 305x305x25mm

Skylarc Ref M160790

Precision Engineers Glass Surface Block.
Unknown manufacturer.
Block measures 305x305x25mm.
Wood case.

3x BT40 Tool Holders w/ Indexable Milling Cutters

Skylarc Ref T160719

3x BT40 Tool Holders w/ Indexable Milling Cutters.
Includes:
- Tecnara Tool Holder type No.240-212-2 with an attached Valenite VAL-U-MILL cutter VMM-91-4-12510RA, 125mm Diameter.
- Unknown brand BT40 Holder with a Kennmetal 100mm diameter Cutter type No. 100B07RK.
- Unknown brand BT40 Holder with unknown brand/model indexable cutter approx 75mm diameter.

Condition varies with each unit.

Vintage Milling Machine

Skylarc Ref D161015

This is a vintage "Corona" milling machine manufactured by Fredk Pollard & Co. Ltd., Leicester, England, model 9FX. It features belt-driven speed adjustments with RPM ranges from 2,700 to 18,000 depending on the belt position. The attached motor is labeled B.S.S. Lancashire Crypto, with specifications for 230/400V, 3-phase power, and a max speed of 2,820 RPM.

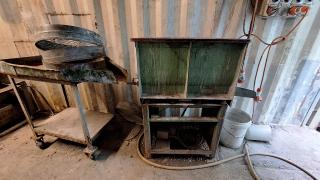

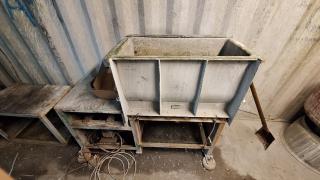

Vibratory Finishing Machine

Skylarc Ref F161277

Vibratory Finishing Machine
Machine is 2000mm long and 600mm wide. Drum is 950mm x 430mm.

David Brown Adjustable Floating Reamer

Skylarc Ref L161309

David Brown Adjustable Floating Reamer S11
50.8mm - 60.3mm
No.4f morse taper
https://www.engineeringsupplies.co.uk/508mm-603mm-s11-hss-david-brown-reamer.html

6x Assorted Indexable Mill Cutters

Skylarc Ref F161173

6x Assorted Indexable Mill Cutters.
Includes:
- Iscar Heli2000 HM90 E90A-D32-4-W25
- Iscar Heli2000 HM90 E90A-D16-2-C16
- Kennametal 5E2R038K25SRD10
- 3x other Cutters with no legible markings, two with approx 12mm diameter shank and one with 20mm diameter shank

Condition varies with each unit.

5 Large Morse Taper Drill Bits

Skylarc Ref M160556

Largest size 50.5mm
Smallest 1 7/16"
Metric and imperial sizes

Milling Machine Angle Plate

Skylarc Ref X160541

Cast angle plate

Flex Corded Straight Grinder H1206

Skylarc Ref M160946

Flex Corded Straight Grinder.
Model No. H1206
1600W
Previously used in a foundry setting.

CNC Machine Vice by Trulok

Skylarc Ref H160733

CNC Machine Vice by Trulok.
155mm wide jaws.
Opens to approx 155mm.
Swivel base with mounting bolt slots spaced 300mm apart on centre.
Includes hand crank tool.
Shipping not available due to item being over the max weight limit of our courier.

Worksite Toolbox and Power Tools

Skylarc Ref M160582

ToolPRO worksite toolbox
Assorted power tools
Grinder
Impact driver
Skill saw
Drill
Chain block

4x Lathe Turning Tools, 25x25mm size

Skylarc Ref O161182

4x Lathe Turning Tools.
All are 25x25mm size, lengths from 140mm to 150mm.
Unknown manufacturer.
Includes part numbers:
- SVJBL 2525M16
- SVJBR 2525M16
- SVJCR 2525M16
- R166.0FG-2525-22

Condition varies with each tool.

5x Large 303 Stainless Steel Rods

Skylarc Ref L161153

5x Large 303 Stainless Steel Rods.
Includes the following sizes:
- 1x 4180mm long, 48mm dia.
- 4x 75mm diameter rods in lengths of 2880mm, 3820mm, 3810mm, and 3900mm.
- also includes a bonus 304 stainless hollow pipe 1175mm long, 50mm diameter.

Condition- As new leftover factory materials supply stock. Rods have rust on them from storage in a very leaky old shipping container.

Antique Wooden Cabinet and Contents

Skylarc Ref M159932

Solid timber industrial style cabinet
Cabinet height excluding backboard 1040mm
Timber top with hardboard overlay
Contents of tools, drill bits, threading dies
Awesome patina
Great for conversion to a kitchen unit

Microsoft Surface Tablet w/ Docking Station

Skylarc Ref H161149

Device

Surface

Microsoft Surface Tablet w/ Docking Station.
Processor is Intel Core i5-4300U at 2.50GHz.
8Gb RAM.
256Gb storage, wiped of old user data.
Windows 10 Pro reset for new user setup.
Includes charging cable and Microsoft Surface Docking Station stand.

Welding Table with Rotator and Stand

Skylarc Ref J159903

Welding table
610mm x 615mm x 860mm tall
160mm three jaw chuck
Single phase with foot control
Small table
690mm x 450mm x 650mm tall

To see this machine running:
https://youtu.be/W7muf5-SWOU

Vintage Steel Stamp Set, Size 3/32"

Skylarc Ref E161016

Vintage Steel Stamp Set.
Made in England in 1970 by Edward Pryor & Son Ltd
3/32" Size stamps.
Wood case approx 170x150x30mm.
See photos for more information.
Wood case shows heavy external wear.

Assortment of ER Collets

Skylarc Ref C161014

Assortment of Collets
See photos for more details

Box of Left Handed Drill Bits

Skylarc Ref V161085

Box of Left Handed Drill Bits

Herbert Drill Press

Skylarc Ref N160869

Vintage Herbert pedestal drill press
Three speeds 2000/3500/5600rpm
80mm spindle travel
Three phase
305mm x 280mm table

10 Lathe Turning Tools

Skylarc Ref Z160569

25mm shank lathe tools

Large Lot of Aluminum Foundry Plates

Skylarc Ref T161369

21 approx 750mm x 490mm
53 approx 360mm x 290mm
5 approx 440mm x 320mm

Desktop Computer w/ Intel 10th Gen Processor & Windows 10 Pro

Skylarc Ref R161185

Custom Desktop Office Computer w/ Intel 10th Gen Processor & Windows 10 Pro
Processor is 10th Gen Intel Core i3-10100 at 3.60GHz
16Gb RAM (2x Crucial 8Gb 2666MHz DIMMS).
Samsung M2 980 SSD drive with 500Gb storage, wiped of old user data.
Microsoft Windows 10 Pro reset for new user setup.
Intel.UHD Graphics 630 integrated GPU.
Asus Prime H510M-E Micro ATX Motherboard.
Antec VP500P Plus PSU
Optical disk drive installed.
Antec branded mid-tower case 395x173x173mm.
Includes Logitech wireless keyboard and mouse.
Includes power cord.
Monitor NOT included.
Mouse and keyboard show some usage wear.
Mild dust within case and fan screens.

16 Foundry Ladles

Skylarc Ref V161293

16 Foundry Ladles, Varying Sizes, Most have a handle size of 750mm

3x Assorted Steel Lengths

Skylarc Ref J160917

3x Assorted Steel Lengths.
Includes:
- Angle steel length approx 4840mm Ling, 125x125mm wide, and 10mm thick.
- Box Steel length approx 3240mm long, 200x200mm wide, 10mm thick.
- Channel Steel length approx 3270mm long, 250x90mm wide, and from 15mm to 10mm thick.

Items rusty from outdoor storage

Go/No Go Gauges

Skylarc Ref F161303

20 gages
UNF
Special threads

Assorted Mitutoyo Precision Tools, Calipers, Gauges & More

Skylarc Ref Q160768

Assorted Mitutoyo Precision Tools, Calipers, Gauges & More.
Includes the following:
- Vintage Universal Vernier Caliper 190-101
- Groove Micrometer 146-102
- 35mm Dial Caliper 209-101
- 12mm thick x 45mm diameter Optical Flat 158-117.
- Internal Micrometer 0.2" to 1", unknown code number.
- Case of unknown Mitutoyo items, see photos.

Condition varies with each item

24" 600mm Crescent Adjustable Wrench

Skylarc Ref F160705

24" 600mm Crescent Adjustable Wrench.
Made in USA by Crescent Tool Co.
630mm total Tool length.
Jaws operate smoothly.

Assorted Vintage Gauge Blocks, Roughness Sample Plates, & More

Skylarc Ref U160980

Assorted Vintage Gauge Blocks, Roughness Sample Plates, & More.
Includes:
- Vintage Robert & Co, England Microsurf No.319 face turning gauge sample set.
- Vintage Baroid Part No. 992-02 Fineness of Grind Gauge.
- Vintage Matrix Ikeche, England, Steel block gauge set.
- 72x50x25mm glass block with T013 etched into it.
- Imperial Size wavy parallel Set.
- 14x Assorted loose steel gauge blocks.

Condition and age varies with each item.

Chamfering Deburring Cutter by Vertex

Skylarc Ref Z161167

Chamfering Deburring Cutter by Vertex.
Model number unknown.
Single Phase 10A plug.
Cutting surface 495mm long, 102mm wide.
See photos for blade type attached details.
Powers on and runs quietly.

Drawer Set with Tooling

Skylarc Ref N161077

Drawer set with Tooling, includes Die Heads, Tension Pins, O Rings, Brass Collets and other Lathe Accesories
See photos for more details

Steel Office Cabinet

Skylarc Ref E160912

Steel Office Cabinet.
Unsure of brand.
Cream colour finish.
Lockable, keys are missing.
Adjustable inner shelves.

15 Drawer Cabinet and Contents

Skylarc Ref H160551

Steel workshop cabinet
Contents of modified taper shank drills
Dial gauge and magnetic base components

Shelving and Contents

Skylarc Ref J160501

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

3 Jaw Lathe Chuck

Skylarc Ref Y161322

230mm diameter
No key

2 Large Lathe Boring Bars

Skylarc Ref A161350

Iscar MTFNR-BS-40T-22
CNR0050U26
Surface rusty on one side from sitting

Large Assortment of Drill Bits

Skylarc Ref B161013

Large Assortment of Drill Bits

Depth and Inside Micrometers by Moore & Wright and Shardlow

Skylarc Ref H160759

Assorted Depth and Inside Micrometers by Moore & Wright and Shardlow.
Includes:
- 2x sets of Shardlow branded Depth micrometers in Moore & Wright cases.
- Moore & Wright Depth micrometre set No.54
- Moore & Wright Inside Micrometer set No. 53.

Condition varies with each item. One Shardlow Micrometer is missing its Depth shank. Some accessoriea are missing, see photos.

6 x BT30 Tool Holders and Holding Rack

Skylarc Ref H161019

6 x BT30 Tool Holders and Holding Rack

Large Lot of Machine Tooling

Skylarc Ref U161240

Machine tooling new and used
Mostly packaged

CNC Machine Vice

Skylarc Ref J160735

CNC Machine Vice.
Unknown manufacturer.
Made in Japan.
140mm wide jaws.
Opens to approx 105mm
Mounting bolt slots spaced approx 350mm and150mm appart on centre.
Crank handle is included.

Antique Wooden Workbench w/ Vice

Skylarc Ref H160993

Antique Wooden Workbench w/ Vice.
70mm thick wood board top.
142x68mm thick wood legs and frame.
Includes unknown brand vintage double Jaw vice approx 350x190x265mm.
Vice is not attached to Workbench.
Age of items is unknown.
Workbench very old but still a solid unit. Vice still operates.

Linisher/Grinder on Steel Bench

Skylarc Ref A159920

Single phase linisher
1220mm x 405mm x 820mm tall steel table

Single Phase Overhead Router

Skylarc Ref A160856

Towa Electric R-320 Heavy Duty Router
Single phase
24000rpm
Very heavy cast table
Adjustable height

David Brown Adjustable Floating Reamer

Skylarc Ref K161308

David Brown Adjustable Floating Reamer S11
82.5mm - 101.6mm
No.4 morse tapert
https://sheffieldtooling.co.uk/browse-by-category/hole-making/reamers/david-brown-floating-reamers/david-brown-floating-reamer-s14-82-5-101-6mm/

Mitutoyo Micrometers, 3x Units

Skylarc Ref X160775

Mitutoyo Micrometers.
Includes:
- 2x units of 103-140, 75-100mm
- 1x unknown code number unit, someone hand wrote 50-75mm on its case.

Cases show heavy wear.

Mitutoyo Gage Block Set 516-903, Incomplete

Skylarc Ref C160754

Mitutoyo Gage Block Set.
Code No.516-903, Set No. BE1-81A
Wood case.
Some blocks are missing, see photos

Geo-Tek NAL24 Survey Level w/ Tripod & Ranging Pole

Skylarc Ref V160747

Geo-Tek NAL24 Survey Level w/ Tripod & Ranging Pole.
Level unit includes case.
Last calibration was in 2015.

150kg Winch Stacker

Skylarc Ref S161316

Universal Handling Equipment
150kg capacity
530mm x 500mm removable platform
1020mm max lift height

7 x Lathe Boring Bars

Skylarc Ref F161355

Assorted boring bars

2 Crucibles

Skylarc Ref U161292

2 Crucibles
One is older looking and has no legible markings and stands at 440mm tall. The base is 200mm in diameter and the top is 330mm. internal depth is 300mm. Unknown Material.

The other Crucible is newer but still used, writing states "A 80" and "58 06/22". Crucible stands at 400mm tall and has a base diameter of 200mm which extends to 310mm at the top. Internal depth is 300mm. Unknown Material Combination but appears to be Clay type (could be silicon carbide. could be graphite clay).

Large Assortment of Drill Bits

Skylarc Ref E161094

Large Assortment of Drill Bits

Flex Corded Straight Grinder H1206

Skylarc Ref N160947

Flex Corded Straight Grinder.
Model No. H1206
1600W
Previously used in a foundry setting.

Vintage Meteor Single Phase Drill Press w/ Cabinet

Skylarc Ref O160740

Vintage Meteor Single Phase Drill Press w/ Cabinet.
Drill model No. 40/005
Drill approx 1020mm tall.
Vice Table 265x265mm.
Foot actuated control pedal on floor.
Includes Record branded Drill vice.
Includes heavy Duty Steel Framed wood topped table 680x635x900mm.
Includes storage cabinet within table.
Operates but shows heavy wear and usage. Drill motor appears to be a newer replacement unit.

Record Vice

Skylarc Ref Y159918

Record No.6
150mm jaws

4x Assorted BT40 Type Tool Holders

Skylarc Ref N160713

4x Assorted BT40 Type Tool Holders.
Includes:
- Unknown brand/model BT40 Holder with 13mm Keyless Albrecht branded drill Chuck.
- Sandvik Coromant Holder type C4-390.55-40 030 with Sandvik Coromant boring attachment C4-391.38A-1-033 106 A
- Sandvik Coromant Holder type C3-390.55-40 030 with Sandvik Coromant boring attachment C3-391.38A-1-024 086 A.
- Nachi Holder type SF BT40-BCA 19-120

Condition varies with each unit.

8x Assorted Lathe Indexable Boring Bars

Skylarc Ref K161178

8x Assorted Lathe Indexable Boring Bars.
Many have modified and/or shorted shanks.
Includes part numbers:
- Iscar GHIR-20-20-3, 135mm length
- Iscar GHIR 25C-510, 160mm length.
- Iscar HFIR-25MC, 145mm length
- GHIR 25C-510, 160mm length.
- GHIR 32-4, 145mm length.
- Mitsubishi FPCL 132FM, 145mm length
- S40V-PCLNR 12, 175mm length.
- ID markings are missing from modification, 32mm diameter, 195mm length.

Condition varies with each item.

3 x BT40 Tool Holders

Skylarc Ref D161041

3 x BT40 Tool Holders

10 Morse Taper Drill Bits

Skylarc Ref Q160560

Largest size 1 1/4"
Smallest 23.5mm
Metric and imperial sizes

Trolley of Cast Ingots

Skylarc Ref D161379

3 wheeled steel trolley
Contents of cast ingots

Workshop Scrap Metal Bin Trolley

Skylarc Ref H160707

Workshop Scrap Metal Bin Trolley.
Total length with handle 1140mm.
Inner Bin depth 510mm.
Rolls easily.

Wilson Tempering Oven

Skylarc Ref S161368

1.8kW
Single phase
120c max temperature

12 Large Taps

Skylarc Ref H161487

Assorted sizes

Large Lot of Machine Tooling

Skylarc Ref S161238

Machine tooling new and used
Mostly packaged

Heavy Duty Steel Workshop Shelving

Skylarc Ref G160706

Heavy Duty Steel Workshop Shelving / Workbench
- Heavy Steel shelf/Workbench unit 2880mm long, 630mm wide 2280mm tall. Workbench height 1165mm. Upper shelf section 305mm wide. Frame is welded 75x40mm channel steel.
Wooden Cabinet not included

Condition- Steel workbench/shelf is one complete welded unit and does NOT dissasemble! Very solid unit.
Note - Other Items seen on, within, and near above two units are NOT included!

Buyer needs to bring appropriate vehicle/Trailer for removing these large items.

4 x Lathe Tools

Skylarc Ref L161361

3 x parting tools with holders
1 x 20mm turning tool

Industrial Oven

Skylarc Ref Q161366

Unknown maker
Three phase 63 amp plug
750mm x 500mm x 690mm internal dimensions
Unknown max temperature but gauge goes to 400c

3 x BT40 Tool Holders

Skylarc Ref H161045

3 x BT40 Tool Holders

Milling Machine Manual Indexing Head

Skylarc Ref D160573

160mm chuck
Turns freely and locks
One side of mounts broken

Cincinnati Horizontal Milling Machine

Skylarc Ref B160545

Cincinnati horizontal mill
460mm x 170mm T slot table
Three phase
10 spindle speeds
75 - 1100rpm
Rotary collet vise
Coolant pump

Large Lot of Tool Tips

Skylarc Ref T161317

Large lot of older style lathe tool tips

David Brown Adjustable Floating Reamer

Skylarc Ref M161310

David Brown Adjustable Floating Reamer S11
50.8mm - 60.3mm
No.4f morse taper
https://www.engineeringsupplies.co.uk/508mm-603mm-s11-hss-david-brown-reamer.html

Go/No Go Gauges

Skylarc Ref G161304

10 gages
Conduit and BSF
Tray not included

Large Lot of Tool Tips

Skylarc Ref D161223

Boxes of lathe tool tips

Outside Micrometer, 400-500mm Size

Skylarc Ref T160797

Outside Micrometer, 400-500mm Size.
Unknown manufacturer.
Wood case.

Pistol Grip Dial.Gauges, 2x Units

Skylarc Ref W160774

Pistol Grip Dial.Gauges.
Both are made in England by Verdict, specific model numbers are unknown.

Bishamon Pallet Jack

Skylarc Ref D159897

Bishamon 2000kg pallet jack
One fork has been bent and repaired
Sticks at it's lowest level on that wheel

6x BT40 Type ER Collet Chuck Drill Tool Holders

Skylarc Ref A160726

6x BT40 Type ER Collet Chuck Drill Tool Holders.
Includes:
- 4x Kojex BT40-ER32-60
- 1x Kennametal BT40 ER32070M
- 1x Tool Holder with illegible markings though of same dimensions as Kennametal holder.

Condition varies with each unit.

7 Desktop Storage Shelves

Skylarc Ref Y161010

7 x Desktop Storage Shelving
the 2 top green ones are 240mm x 170mm x 280mm each with 12 drawer spaces each, one has 2 drawers missing.
the blue one is 400mm x 170mm x 270mm and has 2 drawers missing
the 3 red ones are 400mm x 170mm x 320mm.
the last small red one is 400mm x 170mm x 140mm

5 x Lathe Tools

Skylarc Ref G161356

4 x 20mm shank lathe turning tools
16 mm shank lathe turning tool

12 Large Taps

Skylarc Ref I161488

Assorted sizes

Hoppers

Skylarc Ref D161249

main Hopper is 1200mm x 1200mm and is 900mm tall before tapering off. is made of galvanised steel

The frame is 1150mm x 670mm x 160mm and is made from 3 inch box steel with flat plates on the top and bottom

The Gold coloured Hopper is 900mm x 900mm x 750mm and appears to be made of Steel.

Pile of Aluminium Hinge Component Lengths

Skylarc Ref N161155

Pile of Aluminium Hinge Component Lengths.
Uncut hing compinents, each length approx 3100mm.
Two widths in pile, 23mm and 49mm.
Total number in pile is u known, a rough estimate is around 150 or so.
As new leftover factory parts stock.

Large Lot of Tool Tips

Skylarc Ref L161231

Boxes of lathe tool tips

Shelving and Contents

Skylarc Ref N160505

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

7 x Taper Adaptors

Skylarc Ref P161339

7 morse taper adaptors

Large Lot of Machine Taps

Skylarc Ref O161234

Machine Taps
34 taps
A few cutters

Milling Machine Angle Plate

Skylarc Ref V160539

Cast angle plate

Large Lot of Machine Tooling

Skylarc Ref Q161236

Machine tooling new and used
Mostly packaged

2x Vintage 300mm Engineering Bubble Levels

Skylarc Ref Q160794

2x Vintage 300mm Engineering Bubble Levels.
One Moore & Wright branded unit, model number unknown.
Second unit is a J. Rabone & Sons branded unit.
Both have wooden cases.

Large Lot of Drill Bits

Skylarc Ref Q161340

Largest size 5/8"
Wide range

Magnetic Transfer Block

Skylarc Ref H160577

280mm x 105mm x 20mm
Needs a cleanup, some corrosion on bottom

10 Morse Taper Drill Bits

Skylarc Ref T160563

Largest size 30mm
Smallest 29"
Metric and imperial sizes

Shelving and Contents

Skylarc Ref Y160516

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Located upstairs
Buyer will need to unload the shelving themselves

2x Iscar Lathe Indexable Boring Bars

Skylarc Ref I161176

2x Iscar Lathe Indexable Boring Bars.
Borh are part No.S25S SDUCR-11
250mm lengths.

7x Assorted BT40 & CAT40 Tool Holders

Skylarc Ref L160711

7x Assorted BT40 & NT40 Tool Holders.
Appear to be older units with Assorted attachments on some, see photos for further details.

Workshop Mobile Shelf Trolley w/ 2x Attached Bench Grinders

Skylarc Ref Y160932

Workshop Mobile Shelf Trolley w/ 2x Attached Bench Grinders.
Angle steel Trolley frame with wood board shelves and heavy Duty castors.
Includes GMF 200mm bench grinder with one missing side guard and one damaged eye screen guard. Second side guard is detached but included.
Includes unknown brand bench grinder RBG 150A using 150mm diameter brush disks. This grinder is missing almost all Guards, see photos.

Size 2 and 3 Morse Taper and other Drill Bits

Skylarc Ref R161081

Size 2 and 3 Morse Taper and other Drill Bits

7 x Lathe Tools

Skylarc Ref U161344

3 x 25mm shank lathe tools
4 x 20mm shank lathe tools

Left Handed Drill Bits

Skylarc Ref U161084

Left Handed Drill Bits
See photos for more details

Cabinet of Drills, Taps, Tooling

Skylarc Ref U159914

15 drawer cabinet
Contents include
Spotting drills
Taps.
Dies
Drill bits
Cutters

Irwin Vice

Skylarc Ref T160875

Irwin No.6
150mm jaws

Benchtop Guillotine Shears

Skylarc Ref J160943

Benchtop Guillotine Shears.
Unknown manufacturer/model.
Main body 360mm long, 300mm tall with 200mm long lower Jaw, 225mm upper Jaw.

Large Assortment of Old Tool Inserts

Skylarc Ref X161087

Large Assortment of Lathe Tool Inserts.
See photos for more details

Large Lot of Machine Tooling

Skylarc Ref P161235

Machine tooling new and used
Mostly packaged

Large Lot of Tool Tips

Skylarc Ref M161232

Boxes of lathe tool tips

5 x Lathe Boring Bars

Skylarc Ref T161343

Assorted small lathe boring bars

10 Morse Taper Drill Bits

Skylarc Ref P160559

Largest size 36mm
Smallest 25mm
Metric and imperial sizes

Rohm SMP2 Floating Chuck w/ No.3 Tapered Shank

Skylarc Ref P160923

Rohm SMP2 Floating Chuck.
No.3 Morse Tapered Shank
80mm max diameter.
18mm centre hole
Includes wood case.
Tool shows light usage.

3 x BT40 Tool Holders

Skylarc Ref B161039

3 x BT40 Tool Holders

3 x BT40 Tool Holders

Skylarc Ref K161048

3 x BT40 Tool Holders

Shelving and Contents

Skylarc Ref K160502

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

3 x BT40 Tool Holders

Skylarc Ref J161047

3 x BT40 Tool Holders

Office Corner Desk w/ Mobile & Chair

Skylarc Ref U160902

Office Corner Desk w/ Mobile & Chair.
Desk measurea 1800x1800x730mm.
Gas lift adjustable chair.
3-drawer office mobile unit 505x470x660mm.
All other items seen in photos are NOT included.

7 drawer Workshop Cabinet with Contents

Skylarc Ref H161071

7 Drawer Filing Cabinet with Contents,
Contents include Drill Collets, Spare thread rods, Morse Taper Drill, Drill Bits and other associated items.
see photos for more details

Large Lot of Vintage Home Hardware Foundry Moulds

Skylarc Ref Q161314

Ornamental and vintage homeware hardware
Mainly aluminum moulds
Drawer pulls, handles etc

Vintage Wooden Cabinet and Contents

Skylarc Ref P161495

Timber multidraw cabinet
Shelves one side
Contents include thread chasers and assorted industrial supplies
Great project to convert for the kitchen

Benchtop Drawers with Tooling

Skylarc Ref F161095

Benchtop work drawers with tooling

Shelving and Contents

Skylarc Ref O160506

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

5 x Lathe Boring Bars

Skylarc Ref S161342

Assorted small lathe boring bars

Small Drawers with Taps

Skylarc Ref J161099

Small Drawers with Taps,
15 small drawers with labels on the front, made from sheet steel

Trolley and Contents

Skylarc Ref K159930

4 level trolley
Mesh shelves
Contents include
Collets
Tools
Various industrial supplies

Nikken NT40 or Similar Quick Change Morse Taper Tool Holder Set

Skylarc Ref J160709

Nikken NT40 or Similar Quick Change Morse Taper Tool Holder Set.
Made in Japan by Nikken.
Main quick change Chuck Tool Holders is marked NQ40-35.
Includes 6x quick change inserts, 3x are for Morse Taper No.3 Shanks and 3x are for Morse Taper No. 2 shanks.
Ball Bearings on all units spin smoothly.

Vintage Union Inverted Stereo Microscope

Skylarc Ref M160972

Vintage Union Inverted Stereo Microscope.
Made in Japan.
Model BI-9562
Optics include 5x, 10x, 20x and 40x
Light assembly is operational.
Overall measures approx 340x200x220mm
Top table 120x120mm in size.
A heavy well built vintage unit.

Assorted Office Furniture, Desk, Chairs, & More

Skylarc Ref A161142

Assorted Office Furniture, Desk, Chairs, & More.
Includes:
- 1700x1700x725mm corner desk.
- 560x470x660mm mobile drawer unit.
- 440x480x615mm Drawer unit.
- 850x280x2120mm wooden Shelving unit.
- 2x gas-lift deak chairs.

Condition varies with each item.
Other items seen in photos are NOT included.

9x 2-piece Mill Cutters

Skylarc Ref B160987

9x 2-piece Mill Cutters.
Diameters from approx 92mm to 100mm.
Most are Walter Spencer & Co. brand.
Various teeth designs
All split into two halves, see photos.

Shelving and Contents

Skylarc Ref X160515

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

3 x BT40 Tool Holders

Skylarc Ref A161038

3 x BT40 Tool Holders

Pneumatic Press on Table

Skylarc Ref U159940

Martonair pneumatic press
On solid timber bench
200mm x 240mm press table
Unknown capacity

To see this machine running:
https://youtu.be/lbWBML9-MWs

Shelving and Contents

Skylarc Ref V160513

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included
Located upstairs
Buyer will need to unload the shelving themselves

2 Crucibles

Skylarc Ref P161287

2 crucibles
The older looking one is 260mm at the top, tapering to 200mm at the base and stands at 330mm tall with an internal depth of 220mm. There is no legible Writing or Markings on this Crucible. Unknown Material

The newer looking one is 300mm at the top and tapers to 200mm at the base. It stands at 380mm tall with an internal depth of 300mm. Writing on the side states "A 80" and "52 05/22". Unknown Material but has clay like appearance

4 x Lathe Tools

Skylarc Ref I161358

4 x 20mm shank lathe tools

Mitutoyo 300mm Dial Caliper

Skylarc Ref K160788

Mitutoyo 300mm Dial Caliper.
Model.number unknown.
Tool in good condition, dial.operarss but not tested for accuracy. Plastic case shows heavy wear.

5 Large Morse Taper Drill Bits

Skylarc Ref L160555

Largest size 1 15/16"
Smallest 1 15/32"
Imperial sizes

Shelving and Contents

Skylarc Ref R160509

Shelving and Contents
Shelving is 2400mm tall and long and 500mm deep
Made from Galvanised Steel. Shelving has 5 Levels.
Any Files are NOT included

Mobile Workshop Workbench Table

Skylarc Ref M160920

Mobile Workshop Workbench Table.
Box Steel frame with 2mm thick steel top work surface.
150mm diameter castors.
Rusty surfaces from outdoor storage but still a sturdy unit. Castors seem to roll ok.
