Tube Form Fabrication Retirement Auction

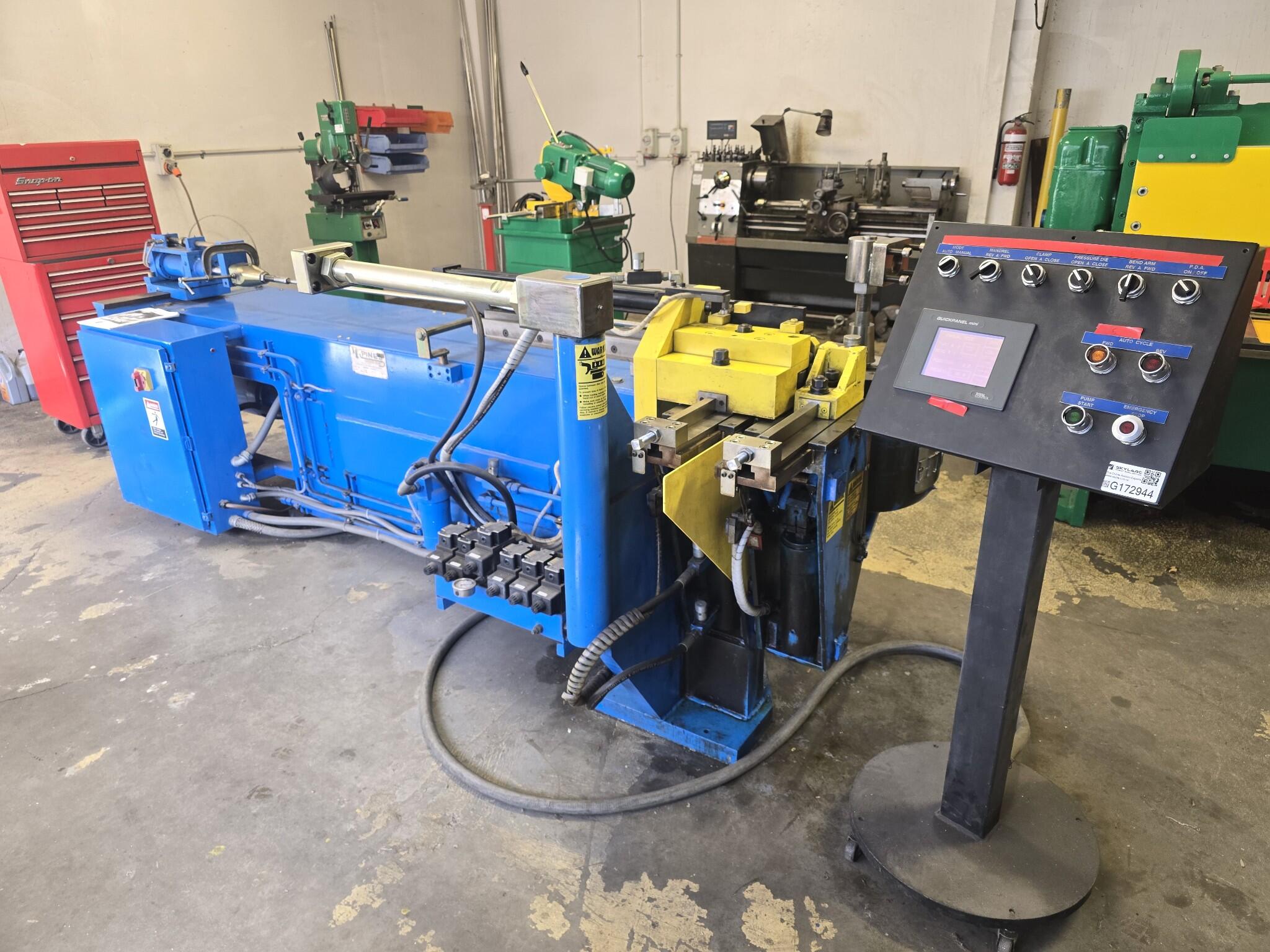

HMT Tube Bender and Tooling

Skylarc Ref G172944

Model: Horn Machine Tools HMT-2LSTD
Quickpanel mini NC control system
Square Tubing (Mild Steel): 50.8 mm × 3.05 mm wall
Round Tubing (Mild Steel): 47.6 mm Ø
Maximum Radius: 305 mm CLR
Maximum Tube Length Over Mandrel: 2.29 m
Bend Arm Speed: 6 RPM
Manufactured 2004
Serial number 04L12220B
Includes two cabinets of tooling with a huge range of new formers and wipers
Machine was sent to America for a full rebuild
The ultimate tube bender rarely available in this condition

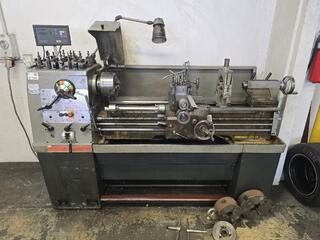

Colchester Student 1800 Lathe

Skylarc Ref Z172963

Model: Colchester Student 1800
Distance between centres 1000mm
Swing over bed 340mm
Swing over gap 500mm
38mm spindle bore
16 spindle speeds
22 - 1800 rpm
Thread cutting
Four jaw 200mm chuck
Three jaw 320mm chuck
Four jaw 250mm chuck
Newall DPG2000 digital readout
Fixed
Coolant pump
Quick change tool post with 16 assorted tool holders
Wide range of tooling, boring bars, turning tools, knurler
Exceptionally tidy condition

To see this machine running:
https://youtu.be/PlbLA66Mk9M

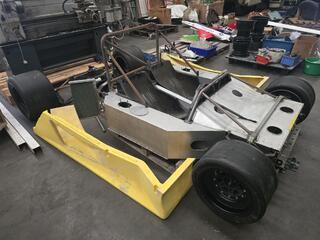

Dart SC1 "Spyder" racing sports car

Skylarc Ref R171343

On road costs included

No

Designed and built by Allan Burrows.
Designed to run Toyota 3SGTE
Believed to be a Hewland Mk9 gearbox
Aluminum tub with honeycomb center rib
ATL bag tanks
Boss magnesium 3 piece wheels (two sets) new
Koni dampers
Stank dash
Aluminum radiators and oil cooler
AP brakes
Range of spares
Incomplete project with much of the hard work done

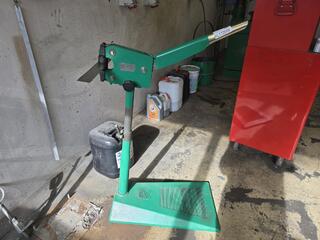

Ecklold Shrinker Stretche

Skylarc Ref L172949

Eckold manual sheet metal shrinker/stretcher
Model: HF100 or similar
Adjustable height stand

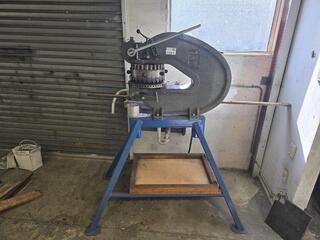

Rotex 18" Rotary Punch

Skylarc Ref I172946

Model: Rotex 18-A
18" throat
18 punches
Largest size
Machine has had a full restoration
All new punches
Smallest punch 5/32"
Largest punch 2"
Mounted on steel stand

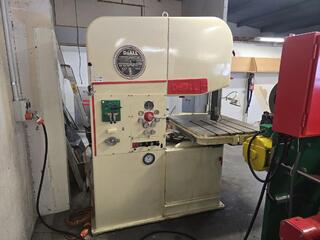

DoALL Contour-Matic 26-3 Bandsaw

Skylarc Ref K172948

DoALL Contour-Matic bandsaw model 26-3.
Serial number 128-58113.
Maximum band length 186 inches.
1040mm x 820mm cast iron worktable with T-slots
650mm throat
Approx 400mm max cutting depth
Variable speed
Equipped with a DoALL mist atomizer for coolant and air.
Fully hydraulic table including tilt and feed
Original metal storage cabinet with assorted blades and accessories included.
Three phase 32 amp plug
Integrated welder
The ultimate bandsaw
Fully restored to an exceptional standard.
We couldn't work out how to get the hydraulics and air running so they're in unknown mechanical condition

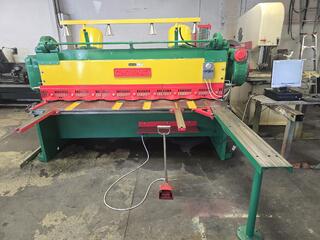

Restored and Modernized Cincinnati Guillotine

Skylarc Ref H172945

Model: Cincinnati 1808 Shear
Probably mid 1950s
Fully stripped and completely rebuilt
Modernized with electric back gauge and computer control
Capacity: 2.44 m × 6.35 mm mild steel
Knife length: 2.54 m
Distance between housings: 2.52 m
Gap: 457 mm
Rake angle: 20.8 mm per 305 mm (≈ 3.9°)
Holddowns: 9
Holddown to knife edge: 15.9 mm
Distance under holddowns: 12.7 mm
Ram adjustment: 17.5 mm
Floor to top of bed: 813 mm
Stroke rate: ≈ 60 per minute
Main drive motor: 5.6 kW / 1610 RPM 220/440 V 3 ph 60 Hz
Weight: 6800 kg
Guards need installation
You will need your own lifting equipment to load this machine unless we are delivering it.
The best one we've ever seen.

To see this machine running:
https://youtu.be/YrgRq4d6GjM

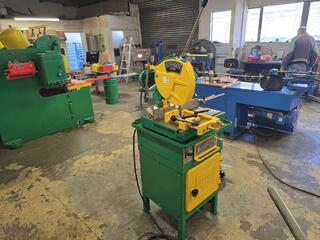

Doringer D350 Cold Saw

Skylarc Ref V172959

Doringer D350 cold saw
Model D350 Made in U.S.A
Electric motor marked 415V
350mm blade
Front control panel with start stop switch and low high speed selector
Manual clamping vise
Swivel base with angle markings for miter cuts
Three phase 20 amp plug
Immaculately restored

To see this machine running:
https://youtu.be/LHvVFgFYcnM

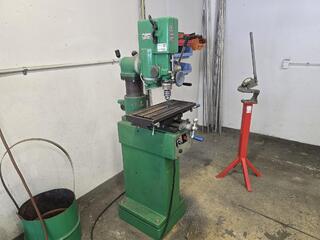

AB Arboga Drill Mill

Skylarc Ref Y172962

Model: AB Arboga Maskiner U2508 Gear Head Milling and Drilling Machine
3 phase 0.75kw motor
4 gear ranges giving 8 spindle speeds
100, 205, 345, 695, 440, 885, 1450, 2900 rpm
250mm x 560mm T slot table
Approx 110mm spindle travel
MT.3 spindle taper
Fitted with 13mm chuck
20 amp plug
Top quality Swedish machine in great condition

To see this machine running:
https://youtu.be/8JJXbiYqzyw

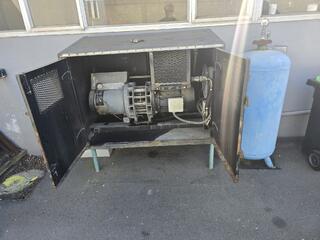

Hydrovane Compressor with Pressure Tank

Skylarc Ref B172939

Model: Hydrovane 2HV316048/1 compressor
Three phase
Overhauled 8 years ago and hasn't done much work since
Oil cooler fitted
Will be electrically disconnected but buyer will need to do any other decommissioning and removal
Receiver 1050mm long x 450mm diameter

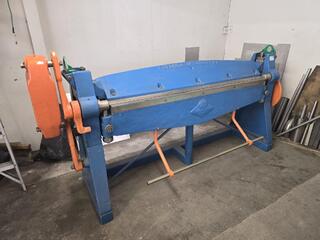

FJ Edwards NW1 Sheet Metal Folder

Skylarc Ref J172947

FJ Edwards NW1 Manual Folder
Heavy duty cast iron construction
1860mm folding length
Rear material supports
Hand crank thickness adjustment
Fully restored and in amazing condition
They don't make them like this any more

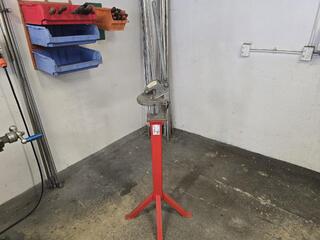

Genuine Beverly B-1 Bench Shear

Skylarc Ref X172961

Beverly Shear model B-1 bench shear.
Manufactured in Chicago, Illinois, USA.
Manual sheet metal shear.
Approx 80mm cutting length
Fitted to a red painted steel stand.
Shear has mounting holes for bench or stand.
Shear is labeled with tag: Beverly Shear Chicago 55, Ill., U.S.A. No. B-1.

Assorted Lengths of Stainless Tube

Skylarc Ref W172960

14 lengths total
Longest length 4000mm
Diameters include 25mm, 30mm, 38mm

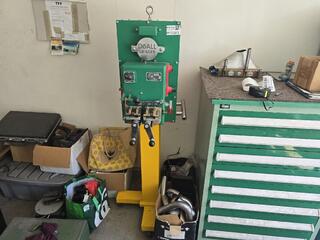

DoAll Bandsaw Blade Welder/Grinder

Skylarc Ref F172943

Model: DoAll DBW-5
Band saw blade butt welder/grinder
8kVa max output
Three phase
Has been fully restored but needs wiring
On wheeled stand

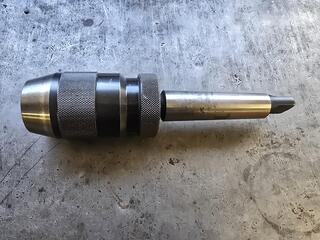

Keyless Chuck

Skylarc Ref R172955

13mm keyless chuck
Morse taper No 3

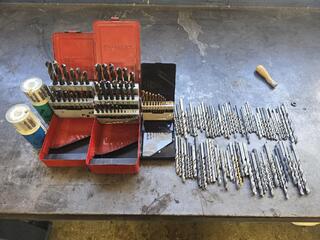

Large Assortment of Drill Bits

Skylarc Ref D172941

Several partial sets of drill bit sets
Large selection of loose drill bits

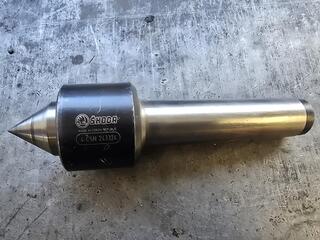

Skoda Morse Taper No.4 Live Centre

Skylarc Ref S172956

Manufacturer Skoda
Made in Czech Republic
Model 4-CSN 243324
Morse taper size No.4
Live centre type
Steel construction

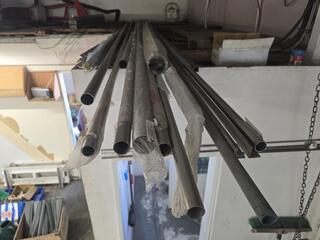

Large Lot of Stainless Lengths

Skylarc Ref C172940

Assorted angle steel
Stainless tube
Lengths up to 5.5 metres

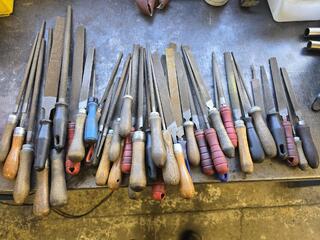

Lot of Assorted Hand Files

Skylarc Ref U172958

Lot of assorted hand files.
40 total
Files include a mix of flat files, round files, and half round files.

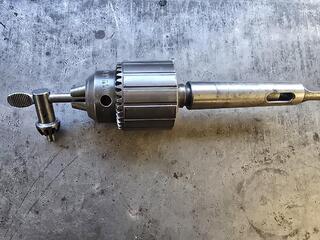

Jacobs 16mm Drill Chuck

Skylarc Ref M172950

No.2 morse taper shank
No.2 to No.3 morse taper adapter
16mm capacity

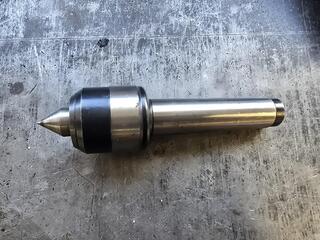

Lathe Live Centre

Skylarc Ref T172957

Morse taper No.3
Unknown maker
Spins freely

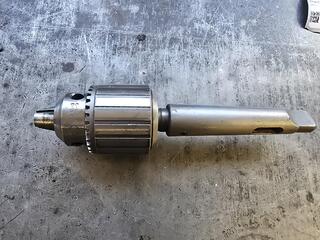

Jacobs 13mm Chuck

Skylarc Ref Q172954

Jacobs 13mm chuck
No.2 spindle taper
No.2 - No 3 taper adapter

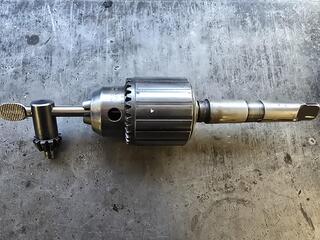

Jacobs 1/2" Drill Chuck

Skylarc Ref O172952

No.2 morse taper shank
1/2" capacity

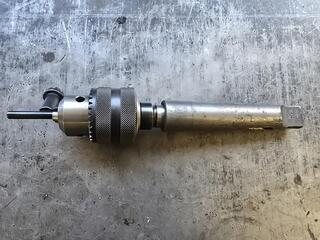

Porta 13mm Drill Chuck

Skylarc Ref N172951

No.2 morse taper shank
No.2 to No.3 morse taper adapter
1/2" capacity
